Singleturn and multiturn, optical and magnetic absolute encoders: parallel, analogue, SSI, Profibus DP, PROFINET IO and EtherCAT interfaces.
An absolute encoder assigns a unique code to every shaft position, so the position is known as soon as power returns, without a homing run. Singleturn models resolve up to 8,192 positions per revolution; multiturn models also count revolutions for up to 32 bits in total.
Parallel outputs in Gray, Binary and BCD code, 4–20 mA analogue output, Sin/Cos motor feedback and SSI, Profibus DP / DeviceNET, PROFINET IO and EtherCAT fieldbus interfaces are available. Ideal for lifts, cranes and positioning systems.
Products
TKTC Miniature Singleturn Absolute Encoder Ø50 mm
Miniature optical singleturn absolute encoder Ø50 mm for general industrial applications.
Details
TKTE Singleturn Absolute Encoder Ø50 mm
Absolute optical singleturn encoder Ø50 mm with solid shaft. OC, OP, NPN, PNP outputs.
Details

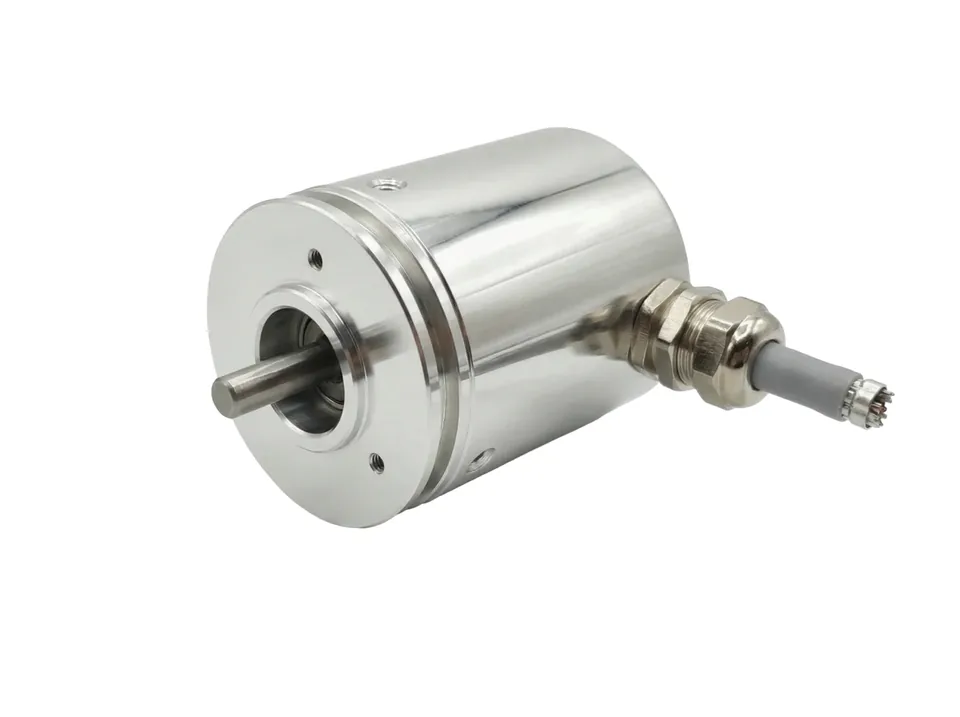

TTMA50 Magnetic Singleturn Absolute Encoder Ø50 mm
Magnetic singleturn absolute encoder Ø50 mm. OC, OP, NPN, PNP outputs. Robust for harsh environments.
Details

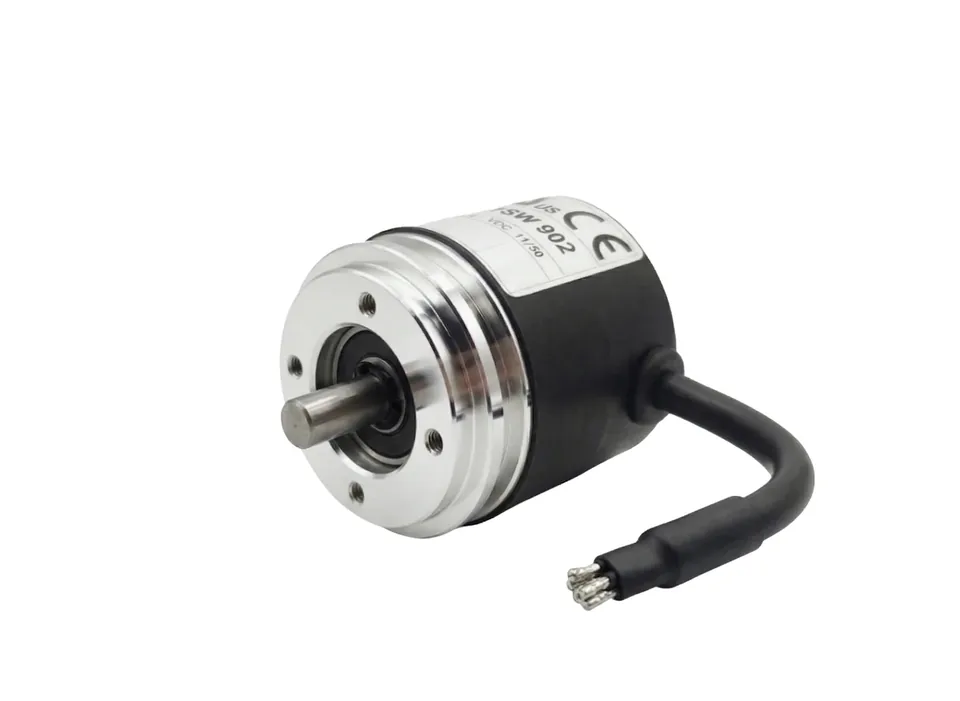

TKC38 Absolute Encoder with Analogue Output Ø38 mm
Magnetic singleturn absolute encoder Ø38 mm with 4-20 mA analogue output. Ultra-compact.
Details
TKE45 Economical Singleturn Absolute Encoder Ø63.5 mm
Economical singleturn absolute encoder Ø63.5 mm. OC, OP, NPN, PNP, S13D outputs.
Details

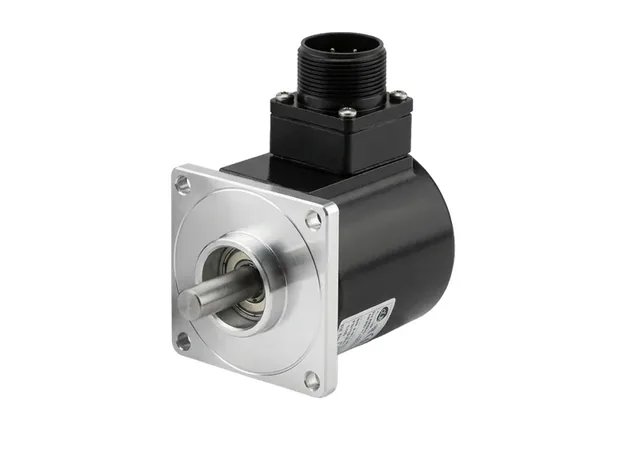

TKC50 Singleturn Absolute Encoder Ø63.5 mm
Singleturn absolute encoder Ø63.5 mm. Up to 2,048 positions/rev (13 bit on request). Gray, Binary, BCD and An…
Details

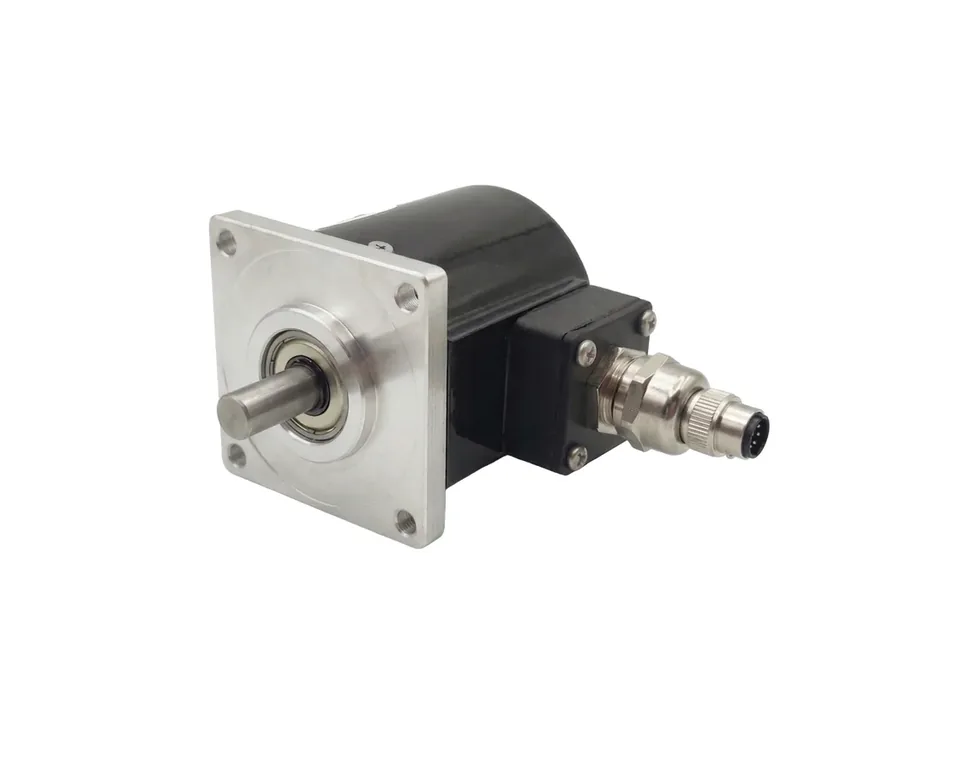

TKC60 Heavy-Duty Singleturn Absolute Encoder Ø63.5 mm
Robust singleturn absolute encoder Ø63.5 mm for heavy-duty applications. TTL, OC, OP, NPN, PNP, S13D, Analog …
Details

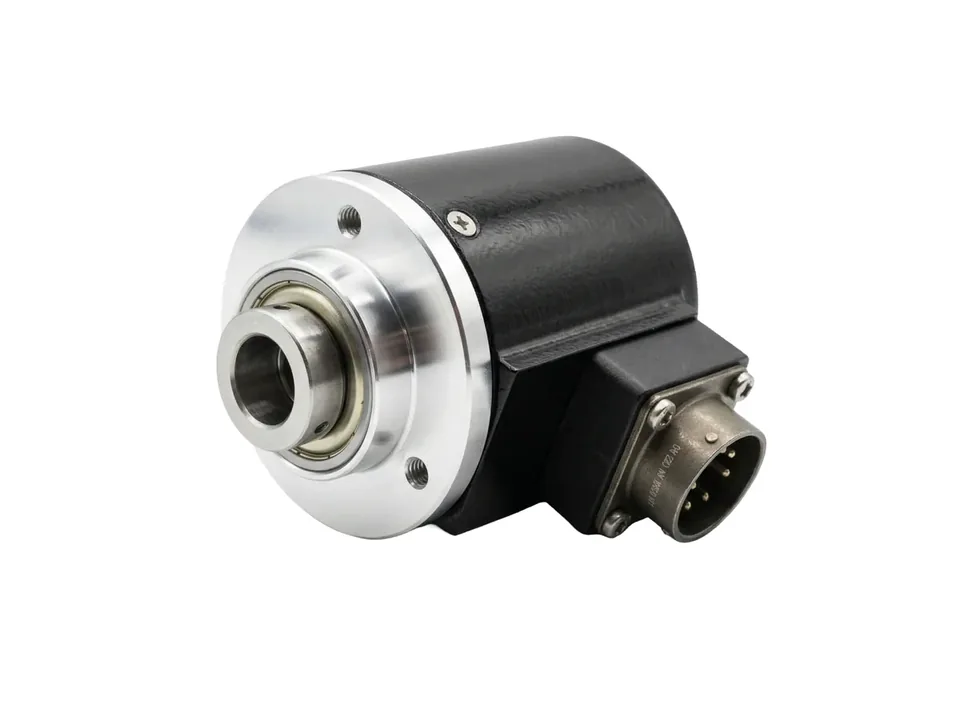

TKE615 Blind Hollow Shaft Absolute Encoder Ø63.5 mm
Economical singleturn absolute encoder with Ø63.5 mm blind hollow shaft. OC, OP, NPN, PNP, S13D outputs.
Details

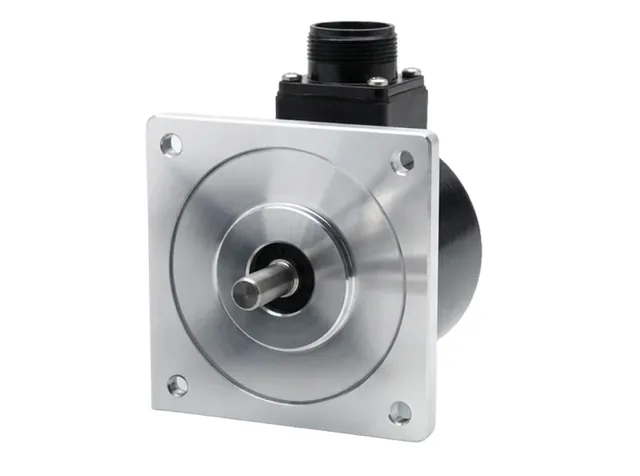

TKC100 Heavy-Duty Singleturn Absolute Encoder Ø80 mm
Robust singleturn absolute encoder Ø80 mm. Robust configuration with resolution up to 7,200 positions per rev…
Details

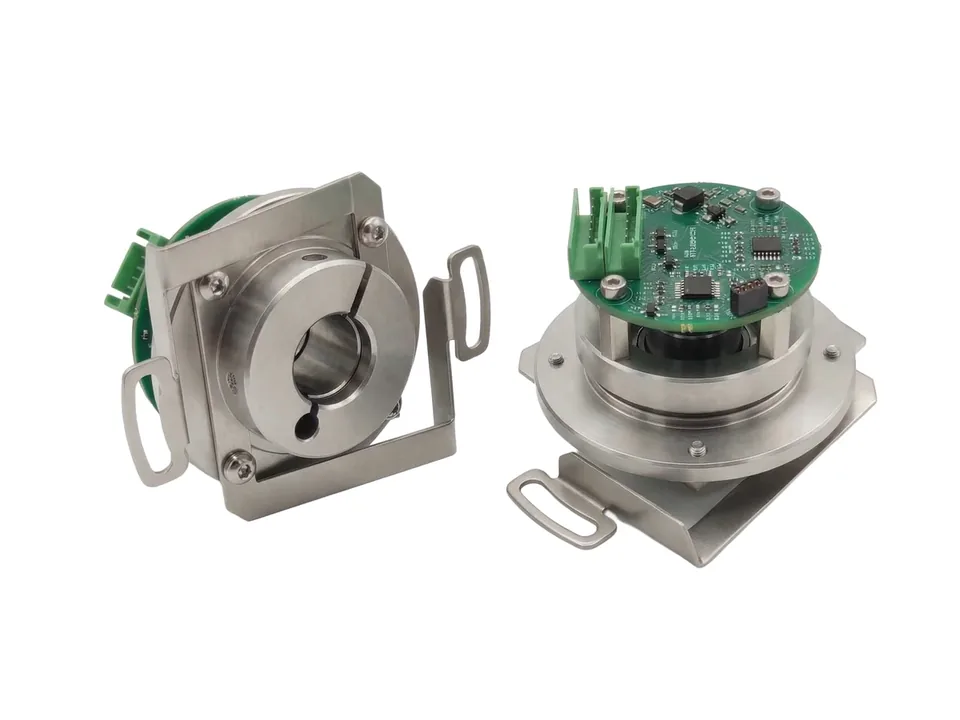

TSTMW42 Sin/Cos Motor Feedback Encoder
Analog singleturn absolute encoder with Sin/Cos signals for motor feedback. Continuous REF signal.
Details

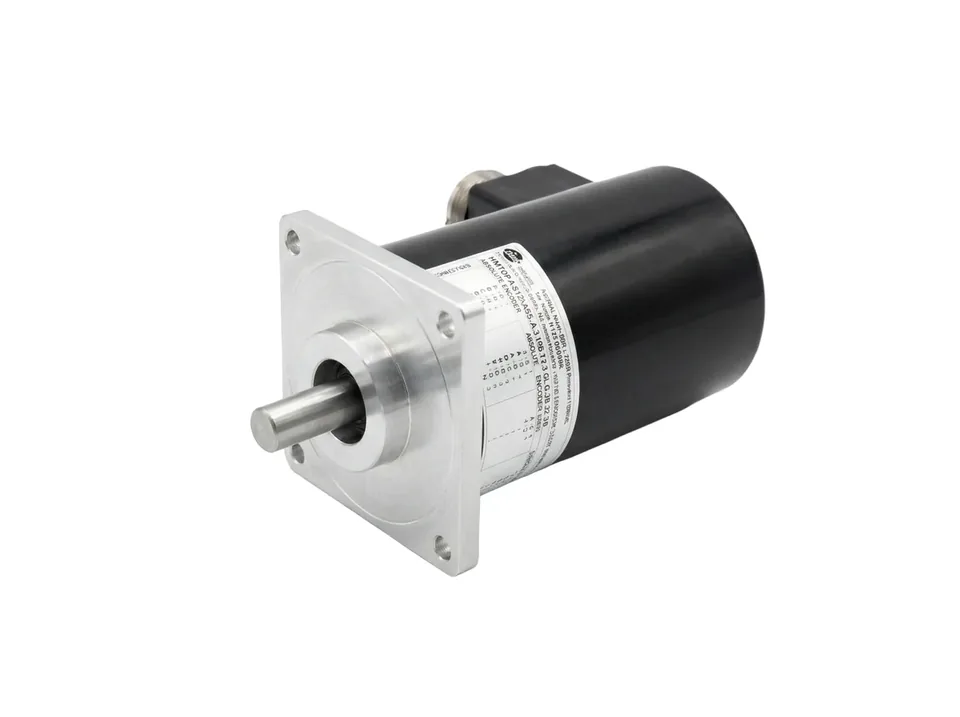

TKM60P Programmable Multiturn Absolute Encoder Ø60 mm
Programmable multi-turn absolute encoder Ø60 mm. SSI, RS232, RS485 interfaces. Configurable in the field.
Details

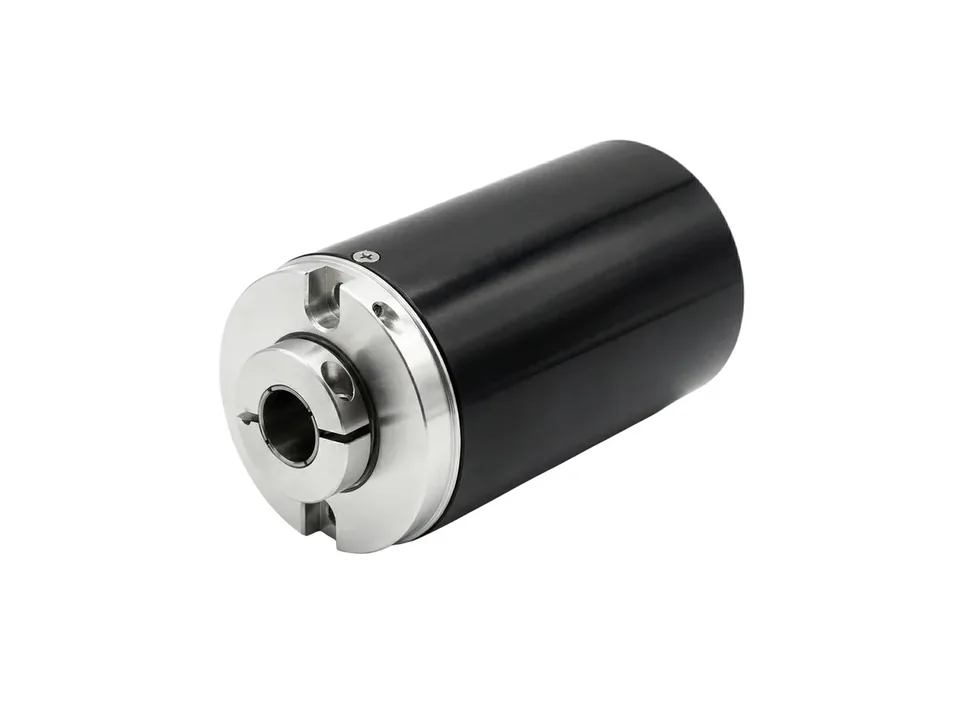

TKMW60P Hollow Shaft Multiturn Absolute Encoder Ø60 mm
Programmable multi-turn absolute encoder with Ø60 mm hollow shaft. SSI, RS232, RS485 interfaces.
Details
TSML60P-SSI Multiturn Absolute Encoder, SSI
Ø58 mm optical multiturn absolute encoder with SSI interface. Solid shaft.
Details
TSMW60P-SSI Hollow Shaft Absolute Encoder, SSI
Ø58 mm optical multiturn absolute encoder with SSI interface. Hollow shaft.
Details

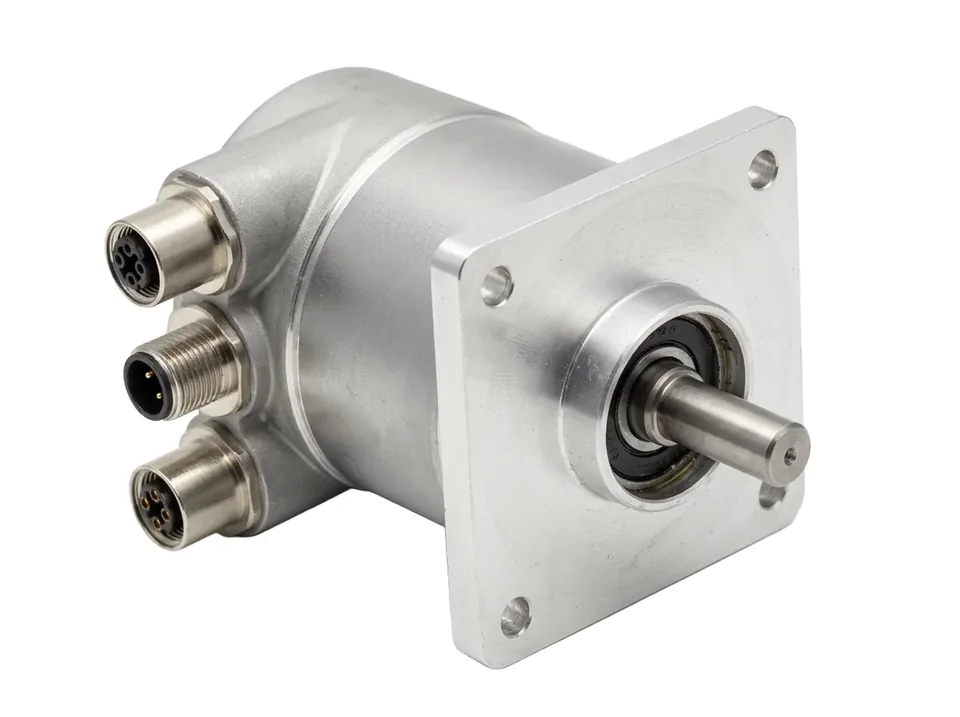

TSML58P-ETHCAT Multiturn Absolute Encoder, EtherCAT
Ø58 mm optical multiturn absolute encoder with EtherCAT interface. Solid shaft.
Details

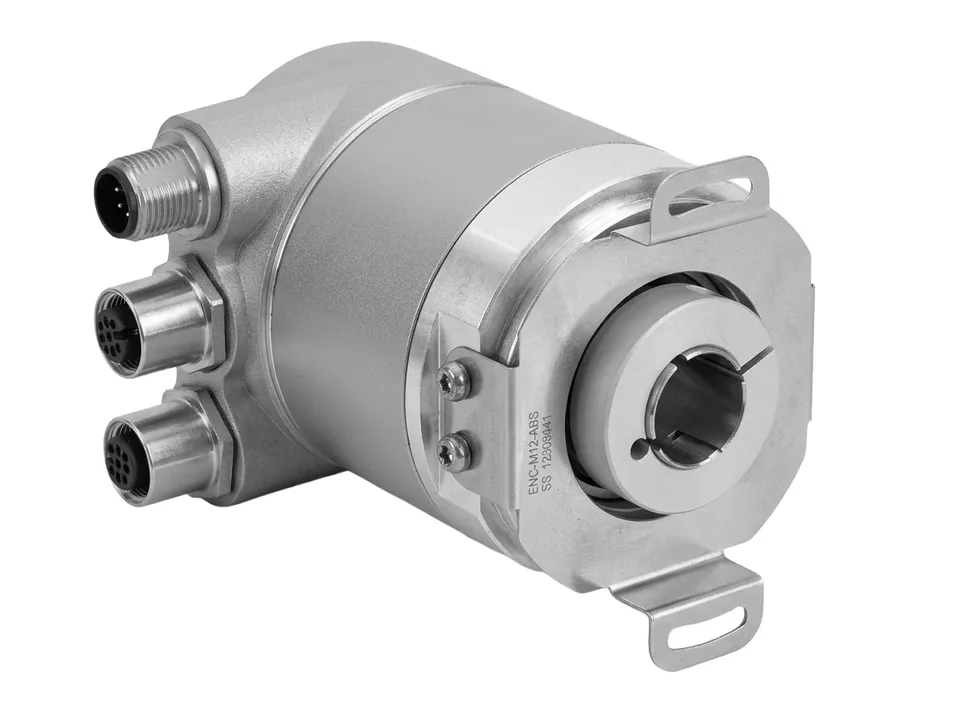

TSMLW58P-ETHCAT Hollow Shaft Absolute Encoder, EtherCAT
Ø58 mm optical multiturn absolute encoder with EtherCAT interface. Hollow shaft.
Details

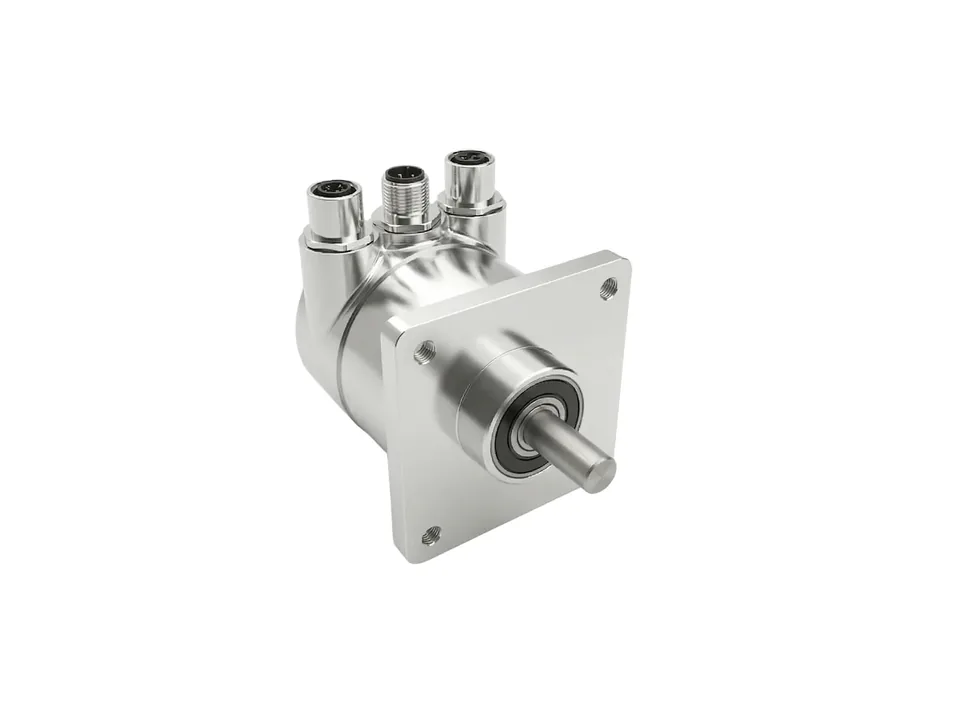

TSML58P-PRNET Multiturn Absolute Encoder, PROFINET IO
Ø58 mm optical multiturn absolute encoder with PROFINET IO interface. Solid shaft.
Details

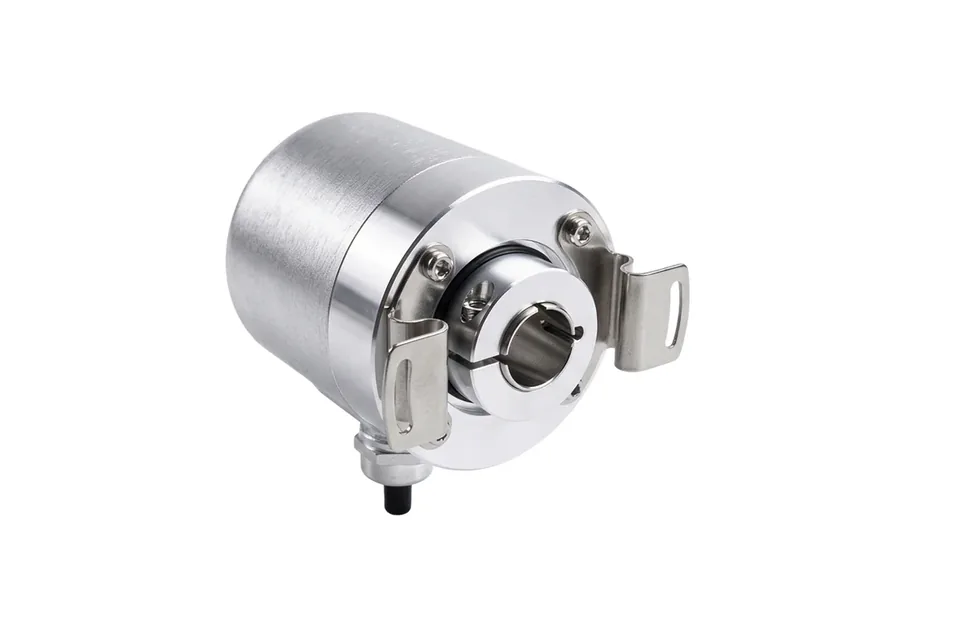

TSMLW58P-PRNET Hollow Shaft Absolute Encoder, PROFINET IO
Ø58 mm optical multiturn absolute encoder with PROFINET IO interface. Hollow shaft.
Details

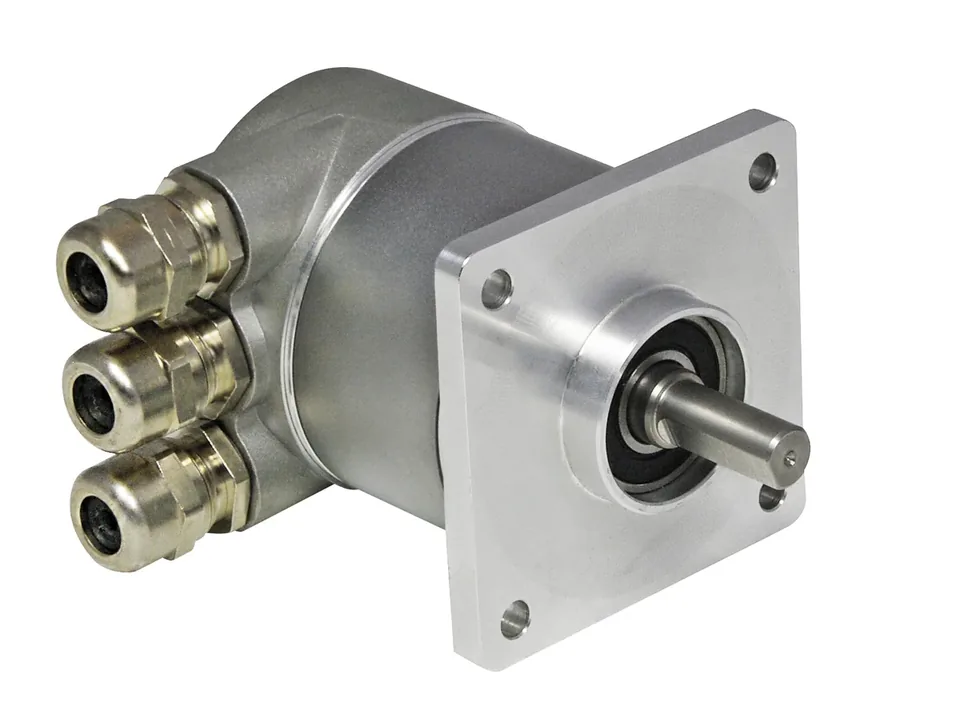

TSM60P-PRDP Multiturn Absolute Encoder, Profibus DP
Ø65 mm optical multiturn absolute encoder with Profibus DP / DeviceNET interface. Solid shaft.
Details

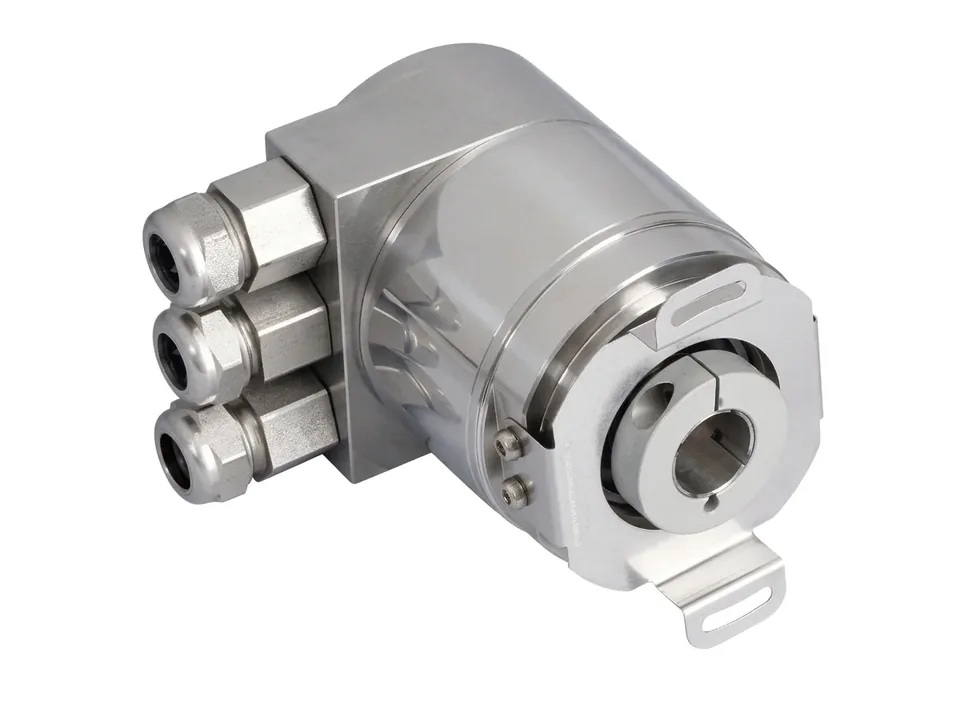

TSMW60P-PRDP Hollow Shaft Absolute Encoder, Profibus DP
Ø65 mm optical multiturn absolute encoder with Profibus DP / DeviceNET interface. Hollow shaft.
Details
