Magnetic singleturn absolute encoder Ø38 mm with 4-20 mA analogue output. Ultra-compact.

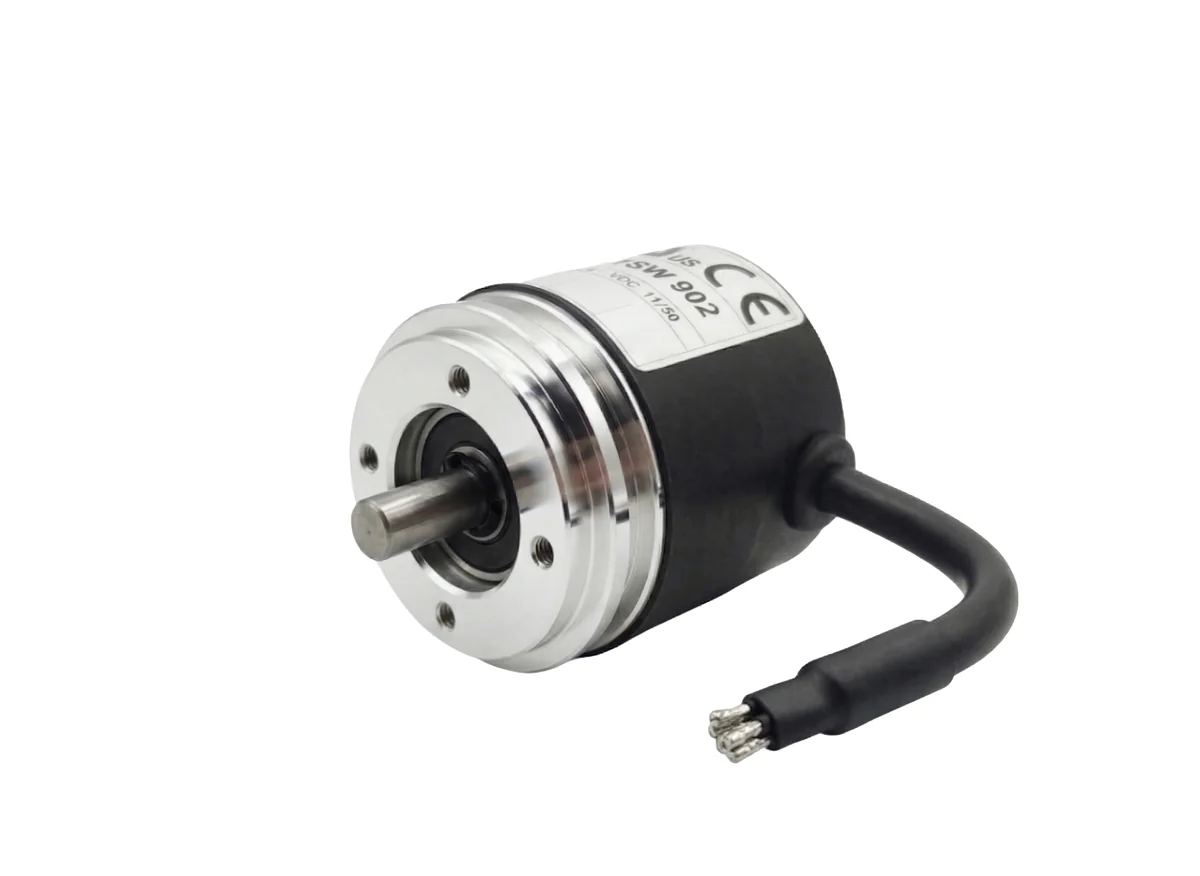

TKC38 Absolute Encoder with Analogue Output Ø38 mm
Magnetic singleturn absolute encoder Ø38 mm with 4-20 mA analogue output. Ultra-compact.
- Technology — optical
- Interface — Line Driver
- Certifications — CE, RoHS
Technical Specifications
| Resolution | 12 bit (4,096 positions) |
|---|---|
| Power Supply | 19÷30V |
| Outputs | 4–20 mA analogue |
| Shaft Load | axial 40 N; radial 40 N |
| Max Speed | 6,000 RPM |
| Protection Rating | IP67 |
| Operating Temperature | -10 °C … +70 °C |
| Connection | connector / cable |
| Shaft / Bore | AISI 303 stainless steel |
| Starting Torque | 0.005 Nm |
| Weight | ≈ 0.1 kg |
| Moment of Inertia | 6 g·cm³ |
| Bearing Life | 5 × 10⁹ rev (min) |
| Flange Material | aluminium S11 |
| Housing Material | polyamide 6 (PA6) |
| Shaft Material | AISI 303 stainless steel |
| Storage Temperature | -30 °C … +80 °C |
| Humidity | 98 % RH, non-condensing |
| Vibration | 10 g (10 ÷ 2,000 Hz) |
