Singleturn absolute encoder Ø63.5 mm. Up to 2,048 positions/rev (13 bit on request). Gray, Binary, BCD and Analog outputs.

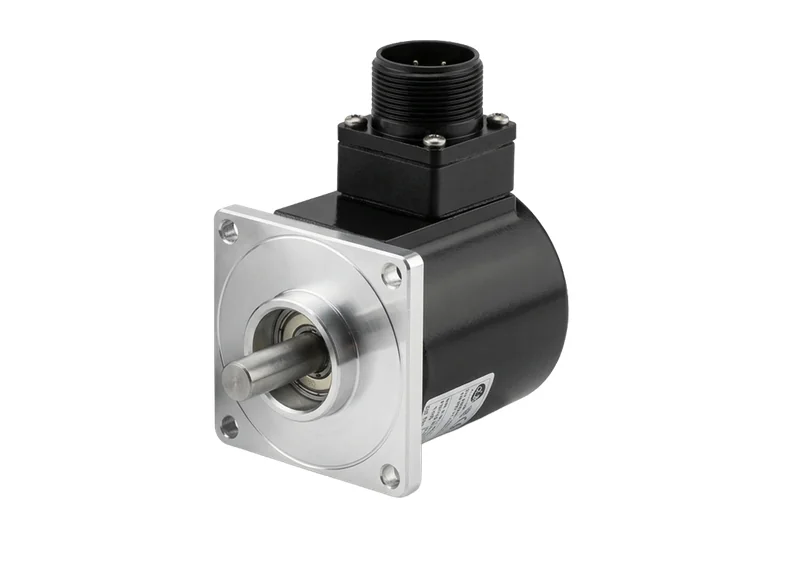

TKC50 Singleturn Absolute Encoder Ø63.5 mm
The TKC50 is an optical singleturn absolute encoder with Ø63.5 mm treated aluminium body. It offers resolutions up to 2,048 positions/rev (11 bit standard, 13 bit on request). Available with Gray, Binary, BCD codes and Analog output. Interfaces: TTL, NPN/PNP open collector and S13D. Stainless steel shaft from 6 to 10 mm. Absolute position is maintained without power supply.
- Technology — optical
- Interface — parallel
- Certifications — CE, RoHS, UL
Technical Specifications
| Resolution | Up to 13 bit (8,192 positions) |
|---|---|
| Power Supply | 5V; 11÷30V; 24/5V |
| Outputs | TTL, OC, OP, NPN, PNP, S13D, analogue |
| Shaft Load | axial 200 N; radial 200 N |
| Max Speed | 6,000 RPM |
| Protection Rating | IP64 / IP65 / IP66 (EN 60529) |
| Operating Temperature | -10 °C … +70 °C |
| Connection | connector / cable |
| Weight | ≈ 0.52 kg |
| Bearing Life | 5 × 10⁹ rev (min) |
| Flange Material | corrosion-resistant aluminium |
| Housing Material | painted aluminium with 180 °C inhibitor treatment |
| Shaft Material | stainless steel |
| Storage Temperature | -30 °C … +80 °C |
| Humidity | 98 % RH, non-condensing |
| Vibration | 10 g (10 ÷ 2,000 Hz) |
| Shock | 20 g (11 ms) |
