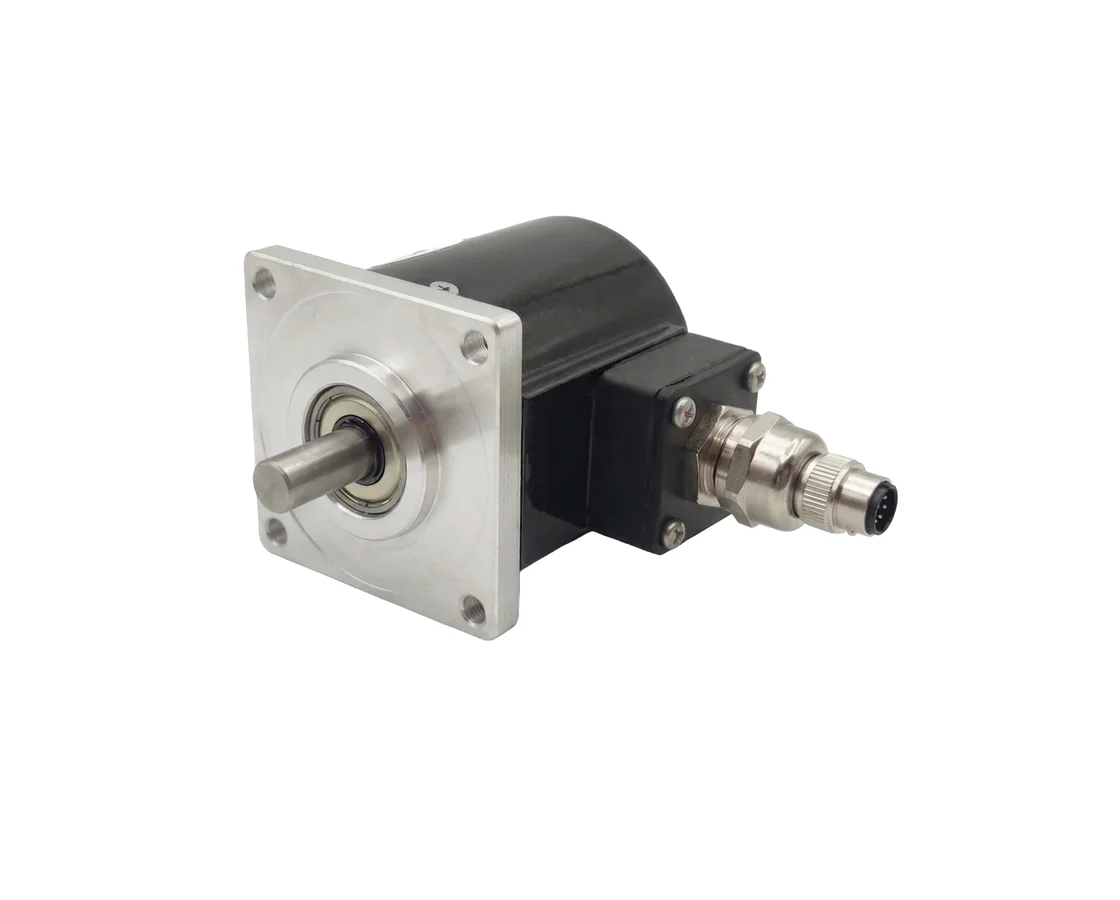

TKC60 Heavy-Duty Singleturn Absolute Encoder Ø63.5 mm
Robust singleturn absolute encoder Ø63.5 mm for heavy-duty applications. TTL, OC, OP, NPN, PNP, S13D, Analog outputs.
- Technology — optical
- Interface — parallel
- Certifications — CE, RoHS, UL
Technical Specifications
| Resolution | Up to 13 bit (8,192 positions) |
|---|---|
| Power Supply | 5V; 11÷30V; 24/5V |
| Outputs | TTL, OC, OP, NPN, PNP, S13D, analogue |
| Shaft Load | axial 200 N; radial 200 N |
| Max Speed | 6,000 RPM |
| Protection Rating | IP66 |
| Operating Temperature | -10 °C … +70 °C |
| Connection | connector / cable |
| Weight | ≈ 0.5 kg |
| Bearing Life | 5 × 10⁹ rev (min) |
| Flange Material | corrosion-resistant aluminium |
| Housing Material | painted aluminium with 180 °C inhibitor treatment |
| Shaft Material | stainless steel |
| Storage Temperature | -30 °C … +80 °C |
| Humidity | 98 % RH, non-condensing |
| Vibration | 10 g (10 ÷ 2,000 Hz) |
| Shock | 20 g (11 ms) |
Data Sheet (PDF) CAD Drawing 2D/3D (ZIP) Manufacturer Product Page
