Absolute optical singleturn encoder Ø50 mm with solid shaft. OC, OP, NPN, PNP outputs.

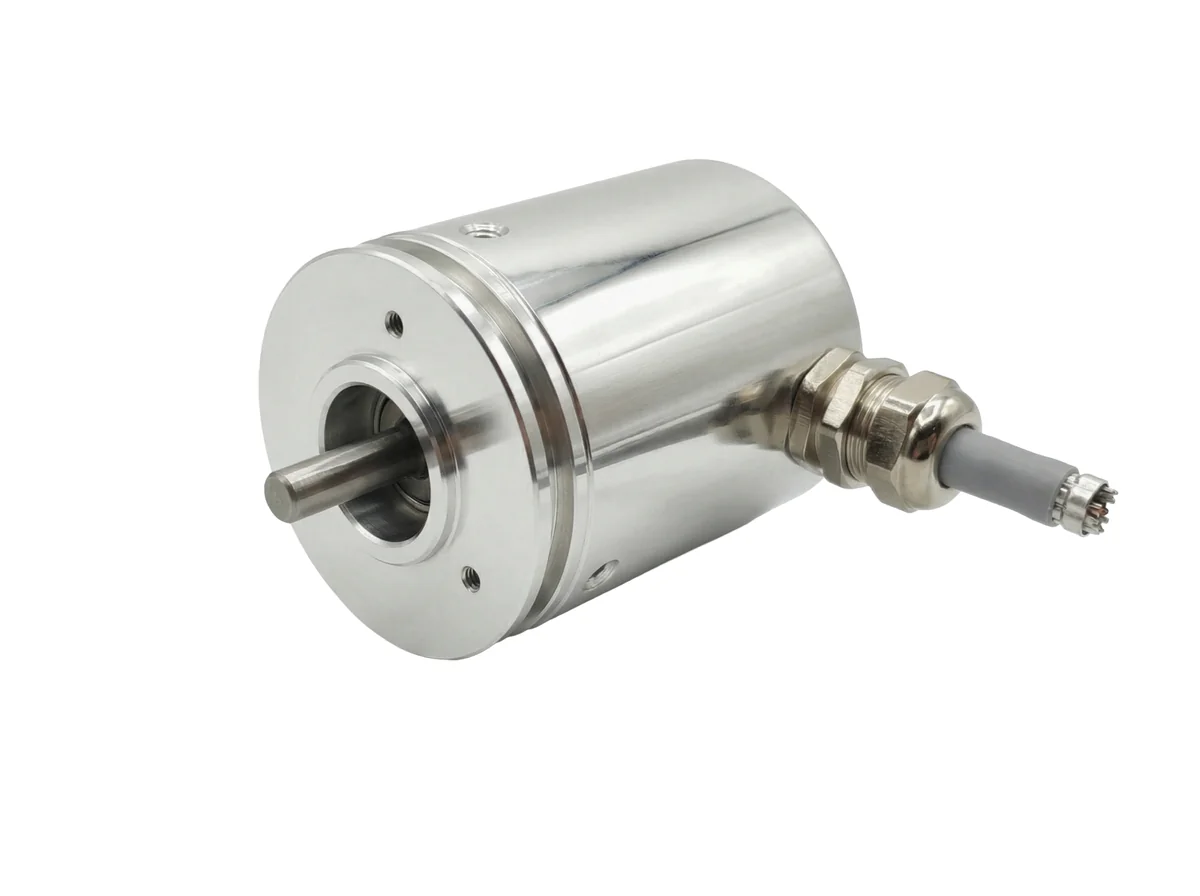

TKTE Singleturn Absolute Encoder Ø50 mm
Absolute optical singleturn encoder Ø50 mm with solid shaft. OC, OP, NPN, PNP outputs.
- Technology — optical
- Interface — parallel
- Certifications — CE, RoHS, UL
Technical Specifications
| Resolution | Up to 13 bit (8,192 positions) |
|---|---|
| Power Supply | 5V; 11÷30V; 24/5V |
| Outputs | OC, OP, NPN, PNP |
| Shaft Load | axial 5 N; radial 5 N |
| Max Speed | 6,000 RPM |
| Protection Rating | IP65 |
| Operating Temperature | -10 °C … +70 °C |
| Connection | connector / cable |
| Weight | ≈ 0.3 kg |
| Bearing Life | 5 × 10⁹ rev (min) |
| Flange Material | aluminium S11 |
| Housing Material | aluminium S11 |
| Shaft Material | stainless steel |
| Storage Temperature | -30 °C … +80 °C |
| Humidity | 98 % RH, non-condensing |
| Vibration | 10 g (10 ÷ 2,000 Hz) |
| Shock | 20 g (11 ms) |
Data Sheet (PDF) CAD Drawing 2D/3D (ZIP) Manufacturer Product Page
