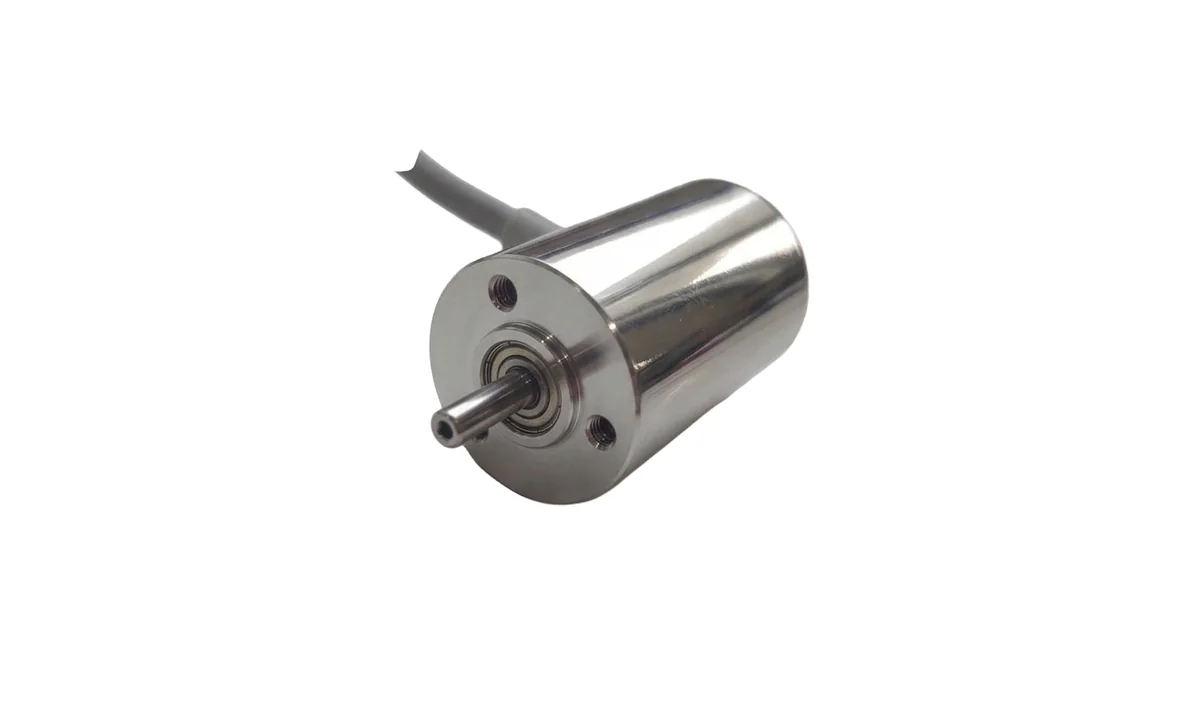

TTM25 Magnetic Incremental Encoder Ø25 mm
Magnetic incremental encoder Ø25 mm with integrated shielding. Ultra-compact for small spaces.
- Technology — magnetic
- Certifications — CE, RoHS
Technical Specifications
| Resolution | Up to 2,048 PPR |
|---|---|
| Power Supply | 5V; 5÷28V |
| Outputs | S, OC, P, OP, PP2, LD, LD2 |
| Shaft Load | axial 5 N; radial 8 N |
| Max Speed | 6,000 RPM |
| Protection Rating | IP65 |
| Operating Temperature | -10 °C … +70 °C |
| Connection | radial cable / connector |
| Starting Torque | 0.025 Nm |
| Weight | ≈ 0.80 kg |
| Moment of Inertia | 40 g·cm² |
| Bearing Life | 5 × 10⁹ rev (min) |
| Flange Material | aluminium S11 |
| Housing Material | nickel-plated iron |
| Shaft Material | AISI 303 stainless steel |
| Storage Temperature | -30 °C … +85 °C |
| Humidity | 98 % RH, non-condensing |
| Vibration | 10 g (10 ÷ 2,000 Hz) |
