Economical incremental encoder with Ø80 mm hollow shaft. Accommodates shafts from 20 to 44 mm in diameter.

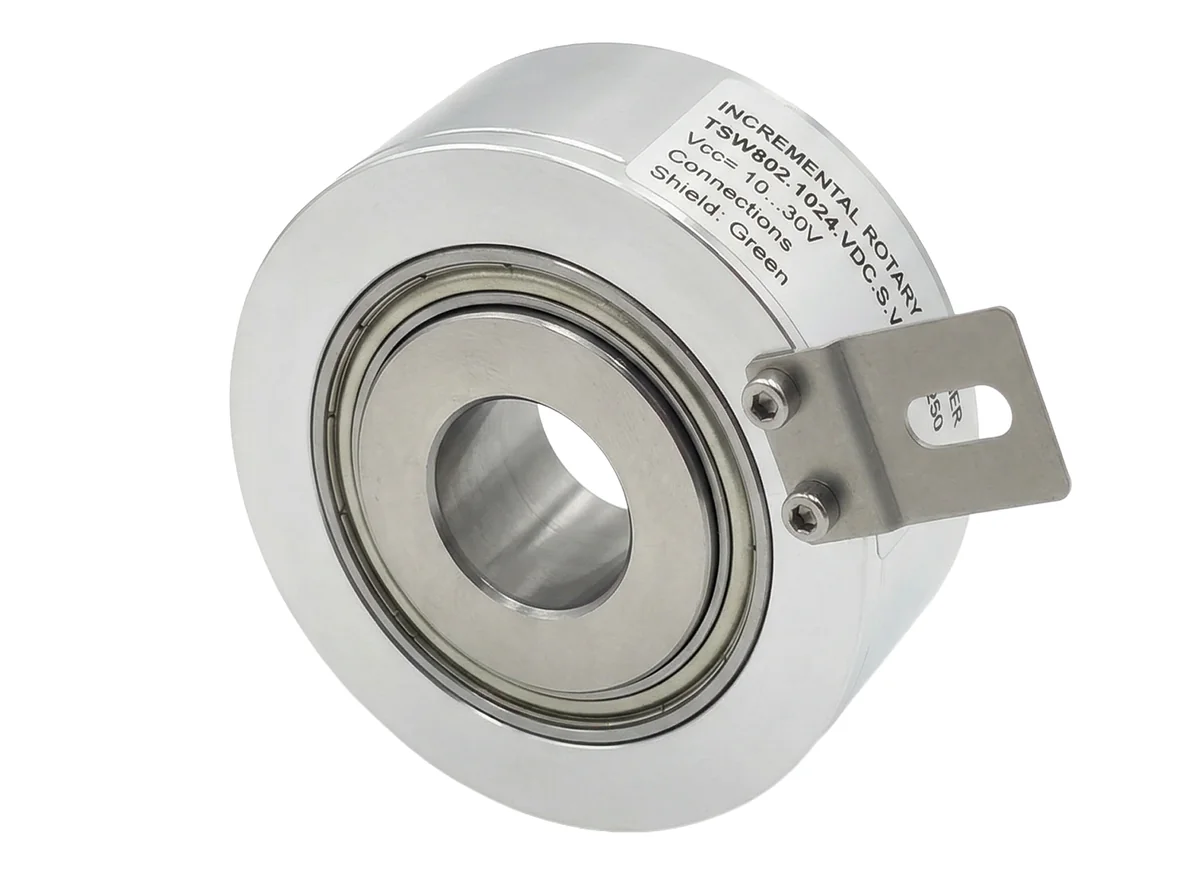

TSW80 Large Hollow Shaft Incremental Encoder Ø80 mm
Economical incremental encoder with Ø80 mm hollow shaft. Accommodates shafts from 20 to 44 mm in diameter.
- Technology — optical
- Certifications — CE, RoHS
Technical Specifications
| Resolution | Up to 5,000 PPR |
|---|---|
| Power Supply | 5V; 11÷30V |
| Outputs | S, OC, P, OP, PP2, LD, LD2 |
| Shaft Load | axial 60 N; radial 60 N |
| Max Speed | 2,000 RPM (IP55); 1,500 RPM (IP65) |
| Protection Rating | IP65 |
| Operating Temperature | -10 °C … +70 °C |
| Connection | radial cable / connector |
| Max Torque | < 12 Nm |
| Weight | ≈ 0.6 kg |
| Bearing Life | 5 × 10⁹ rev (min) |
| Flange Material | aluminium S11 |
| Housing Material | aluminium S11 |
| Shaft Material | stainless steel |
| Storage Temperature | -30 °C … +100 °C |
| Humidity | 98 % RH, non-condensing |
| Vibration | 10 g (10 ÷ 2,000 Hz) |
Data Sheet (PDF) CAD Drawing 2D/3D (ZIP) Manufacturer Product Page
