High resolution incremental encoder Ø36.5 mm with universal outputs. Up to 14,400 PPR.

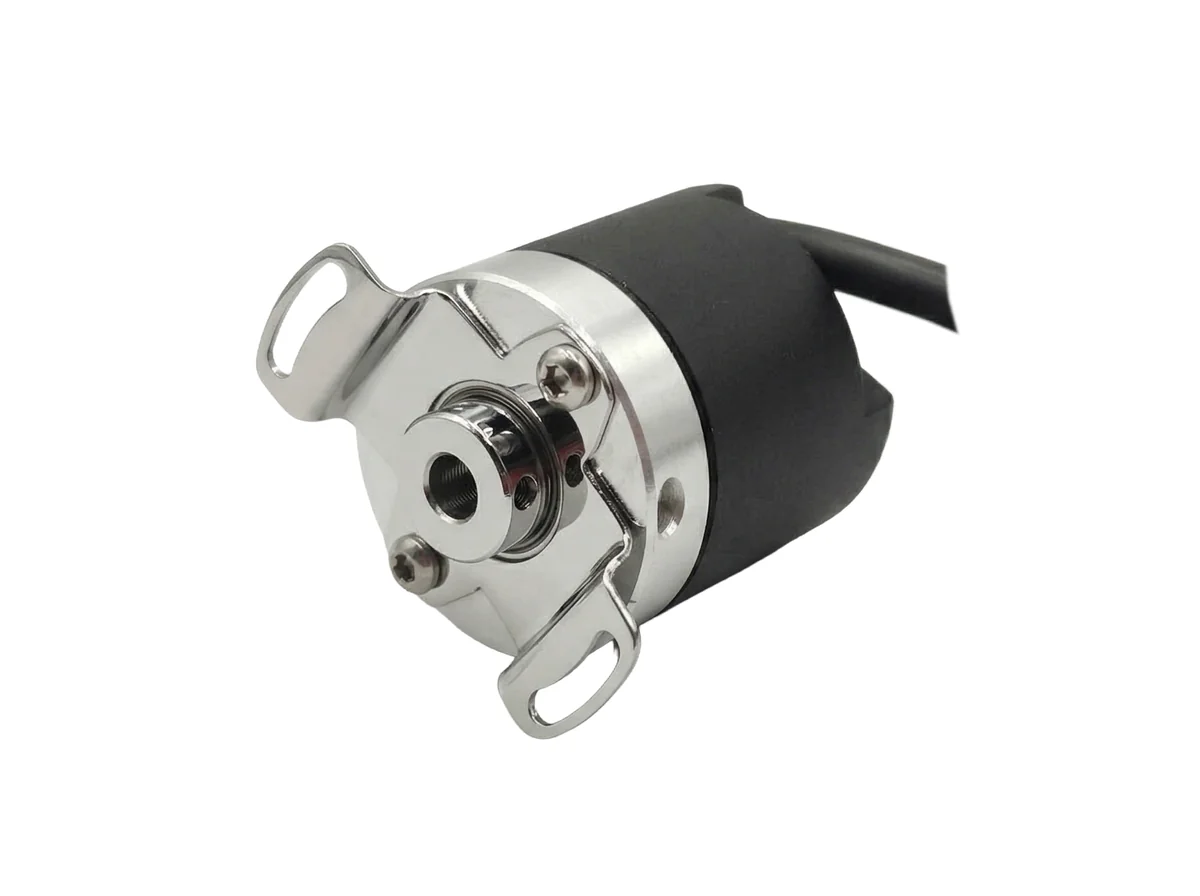

TSW365 High-Resolution Incremental Encoder Ø36.5 mm
High resolution incremental encoder Ø36.5 mm with universal outputs. Up to 14,400 PPR.
- Technology — optical
- Certifications — CE, RoHS
Technical Specifications
| Resolution | Up to 14,400 PPR |
|---|---|
| Power Supply | 5V; 11÷30V; 24/5V |
| Outputs | S, OC, P, OP, PP2, LD, LD2 |
| Shaft Load | axial 10 N; radial 20 N |
| Max Speed | 6,000 RPM |
| Protection Rating | IP65 |
| Operating Temperature | -10 °C … +70 °C |
| Connection | radial cable |
| Starting Torque | 0.005 Nm |
| Weight | ≈ 0.1 kg |
| Moment of Inertia | 6 g·cm² |
| Bearing Life | 5 × 10⁹ rev (min) |
| Flange Material | aluminium S11 |
| Housing Material | polyamide 6 (PA6) |
| Shaft Material | stainless steel |
| Storage Temperature | -30 °C … +80 °C |
| Humidity | 98 % RH, non-condensing |
| Vibration | 10 g (10 ÷ 2,000 Hz) |
Data Sheet (PDF) CAD Drawing 2D/3D (ZIP) Manufacturer Product Page
