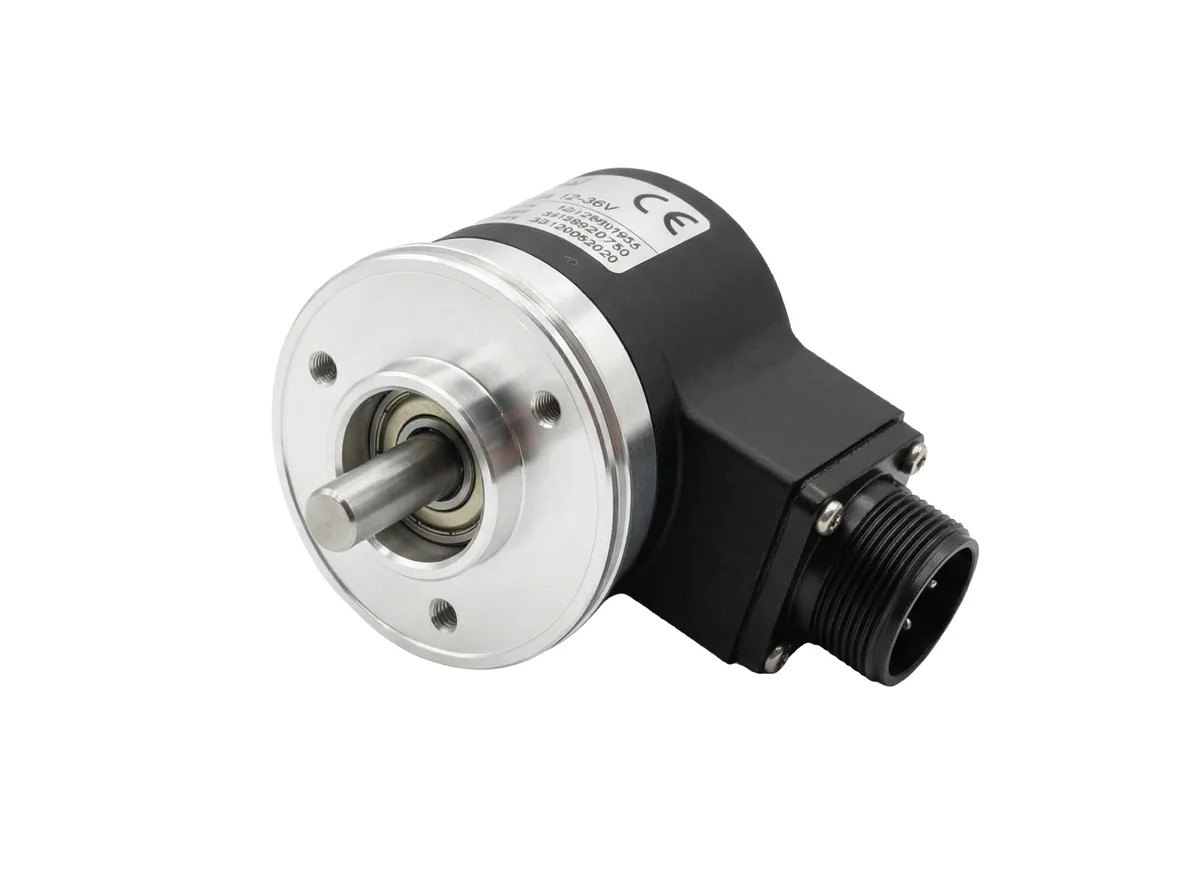

TS58 Optical Incremental Encoder Ø58 mm
The TS58 is the best-seller of the Italsensor range: an optical incremental encoder with a Ø58 mm body and an output frequency of up to 300 kHz. Available with solid shaft (6, 8, 9.52, 10, 11 mm) or hollow, and 4 flange types (square, standard servo, servo-clip, FRE/REO444). The PA6 polyamide case ensures lightness (0.3 kg) and corrosion resistance. Shaft load up to 200 N radial and axial.
- Technology — optical
- Certifications — CE, RoHS
Technical Specifications
| Resolution | Up to 20,000 PPR |
|---|---|
| Power Supply | 5V; 5÷28V; 11÷30V |
| Outputs | S, OC, P, OP, PP2, LD, LD2 |
| Shaft Load | axial 200 N; radial 200 N |
| Max Speed | 6,000 RPM |
| Protection Rating | IP64 / IP65 / IP66 (EN 60529) |
| Operating Temperature | -10 °C … +70 °C |
| Connection | radial cable / connector |
| Starting Torque | 0.025 Nm; 0.040 Nm with shaft protection |
| Weight | ≈ 0.3 kg |
| Moment of Inertia | 40 g·cm² |
| Bearing Life | 5 × 10⁹ rev (min) |
| Flange Material | corrosion-resistant aluminium |
| Housing Material | polyamide 6 (PA6) |
| Shaft Material | stainless steel |
| Storage Temperature | -30 °C … +85 °C |
| Humidity | 98 % RH, non-condensing |
| Vibration | 10 g (10 ÷ 2,000 Hz) |
| Shock | 20 g (11 ms) |
