Compact incremental encoder with Ø38 mm blind shaft. Resolution up to 3,600 PPR.

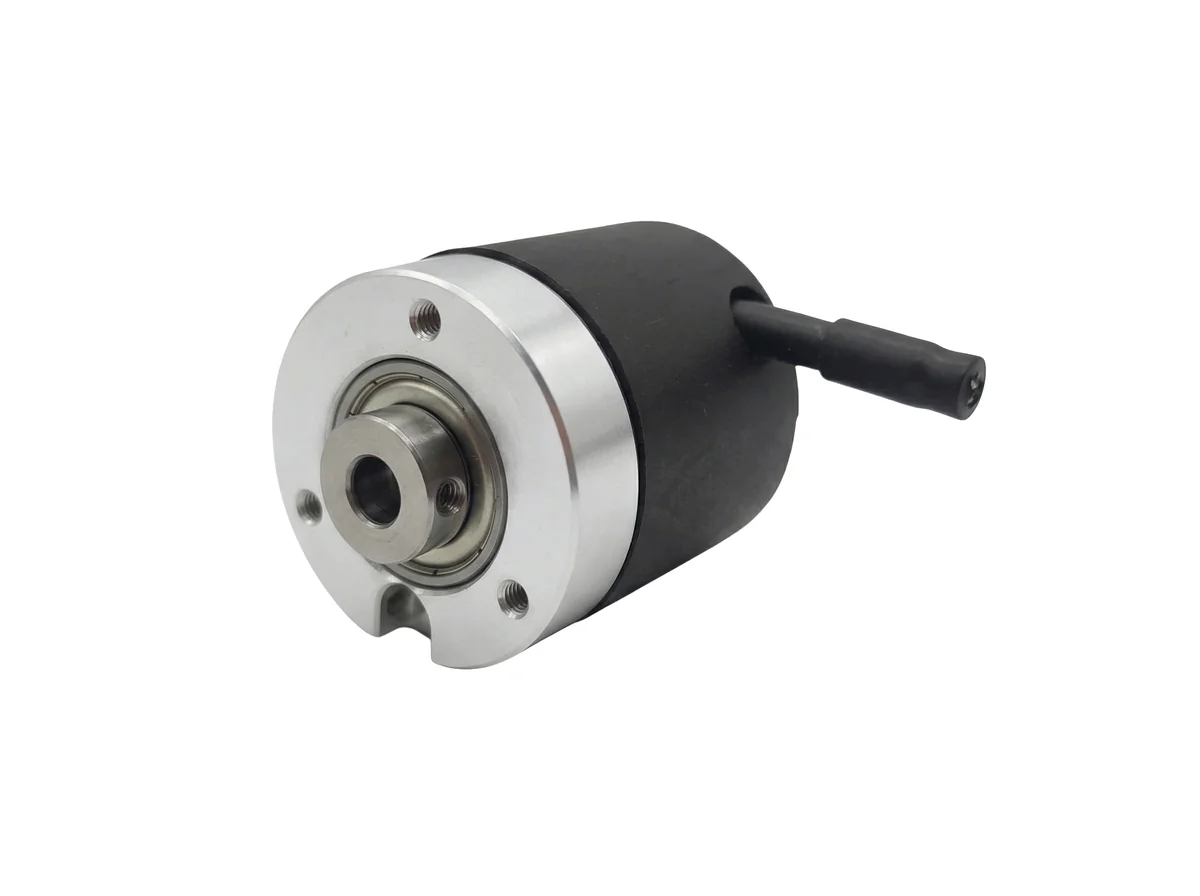

TKW315 Blind Hollow Shaft Incremental Encoder Ø38 mm
Compact incremental encoder with Ø38 mm blind shaft. Resolution up to 3,600 PPR.
- Technology — optical
- Certifications — CE, RoHS, UL
Technical Specifications
| Resolution | Up to 3,600 PPR |
|---|---|
| Power Supply | 5V; 11÷30V; 24/5V |
| Outputs | S, OC, P, OP, PP2, LD, LD2 |
| Shaft Load | axial 5 N; radial 5 N |
| Max Speed | 6,000 RPM |
| Protection Rating | IP64 |
| Operating Temperature | -10 °C … +70 °C |
| Connection | radial cable |
| Starting Torque | 0.005 Nm |
| Weight | ≈ 0.1 kg |
| Moment of Inertia | 6 g·cm² |
| Bearing Life | 5 × 10⁹ rev (min) |
| Flange Material | aluminium S11 |
| Housing Material | polyamide 6 (PA6) |
| Shaft Material | stainless steel |
| Storage Temperature | -30 °C … +80 °C |
| Humidity | 98 % RH, non-condensing |
| Vibration | 10 g (10 ÷ 2,000 Hz) |
| Shock | 20 g (11 ms) |
Data Sheet (PDF) CAD Drawing 2D/3D (ZIP) Manufacturer Product Page
