Heavy-duty incremental encoder Ø72 mm with integrated coupling for servomotors.

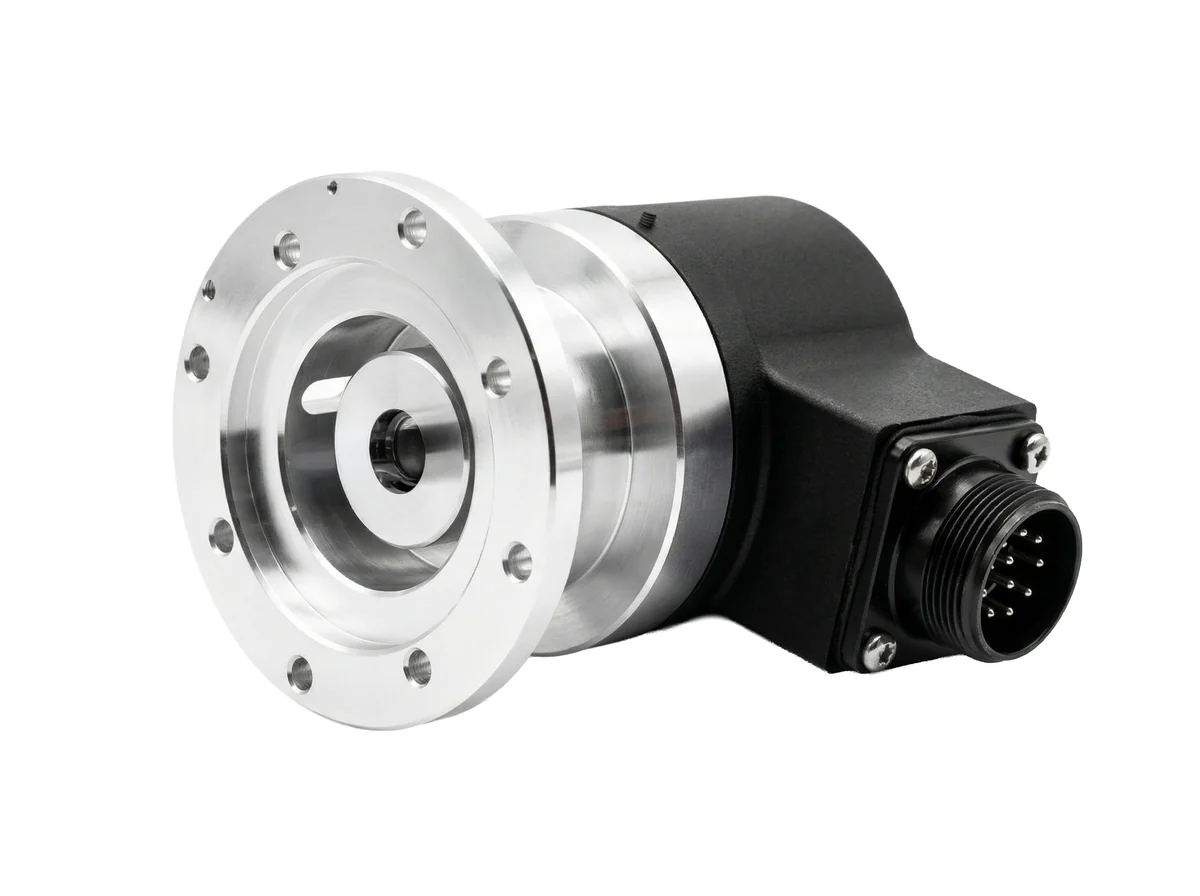

TKM73 Servomotor Encoder with Coupling Ø72 mm
Heavy-duty incremental encoder Ø72 mm with integrated coupling for servomotors.
- Technology — optical
- Certifications — CE, RoHS, UL
Technical Specifications
| Resolution | Up to 3,600 PPR |
|---|---|
| Power Supply | 5V; 11÷30V |
| Outputs | S, OC, P, OP, PP2, LD, LD2 |
| Shaft Load | axial 200 N; radial 200 N |
| Max Speed | 6,000 RPM |
| Protection Rating | IP65 |
| Operating Temperature | -10 °C … +70 °C |
| Connection | radial cable / connector |
| Starting Torque | 0.025 Nm |
| Weight | ≈ 0.5 kg |
| Moment of Inertia | 50 g·cm² |
| Bearing Life | 5 × 10⁹ rev (min) |
| Flange Material | corrosion-resistant aluminium |
| Housing Material | polyamide 66 (PA66) |
| Storage Temperature | -30 °C … +80 °C |
| Humidity | 98 % RH, non-condensing |
| Vibration | 10 g (10 ÷ 2,000 Hz) |
| Shock | 20 g (11 ms) |
Data Sheet (PDF) CAD Drawing 2D/3D (ZIP) Manufacturer Product Page
