Push-button radio remote control for cranes and overhead cranes: reduced dimensions, great capabilities. 3, 5 or 7 buttons; up to 1,000 working hours on one battery.
T Series
The radio control with keyboard for gantry and overhead cranes that makes you forget many of the problems most common to this type of equipment. A concentrate of simplifying technology: it cuts consumption thanks to a battery that is replaced after 1,000 hours' work, eliminating the complication of constant recharging. Sturdiness and an ergonomic concept ensure long efficiency under any condition. In case of failure or loss of the transmitter, replacement takes only a few seconds thanks to the patented REMsys code® system.

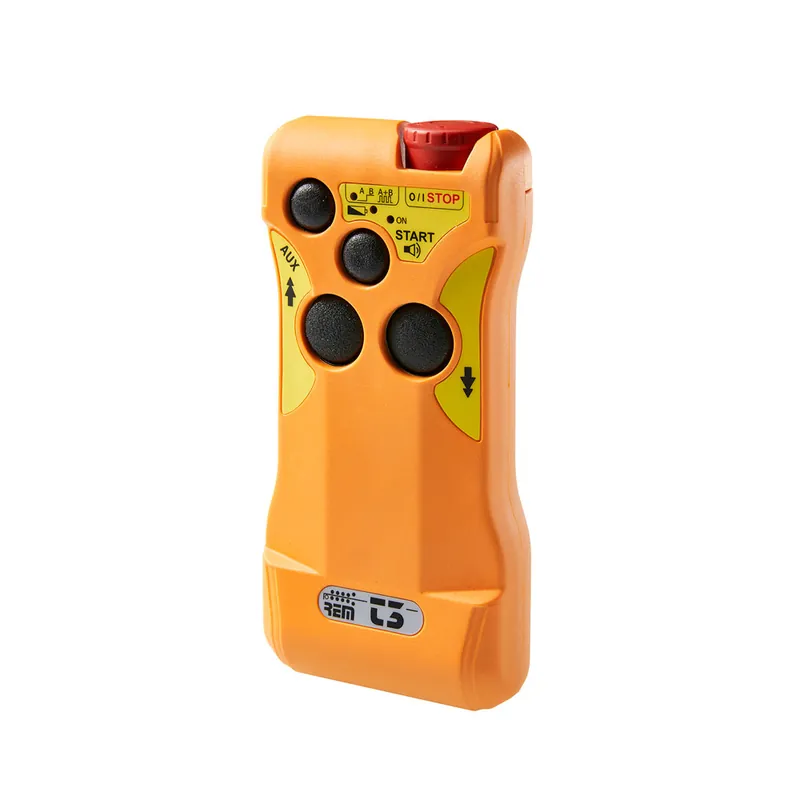

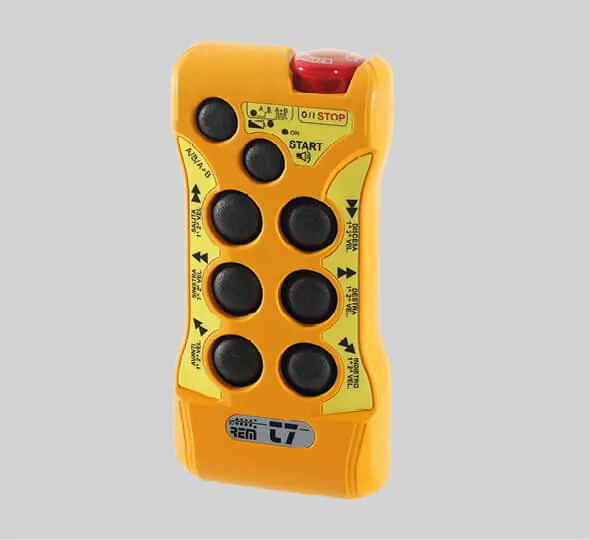

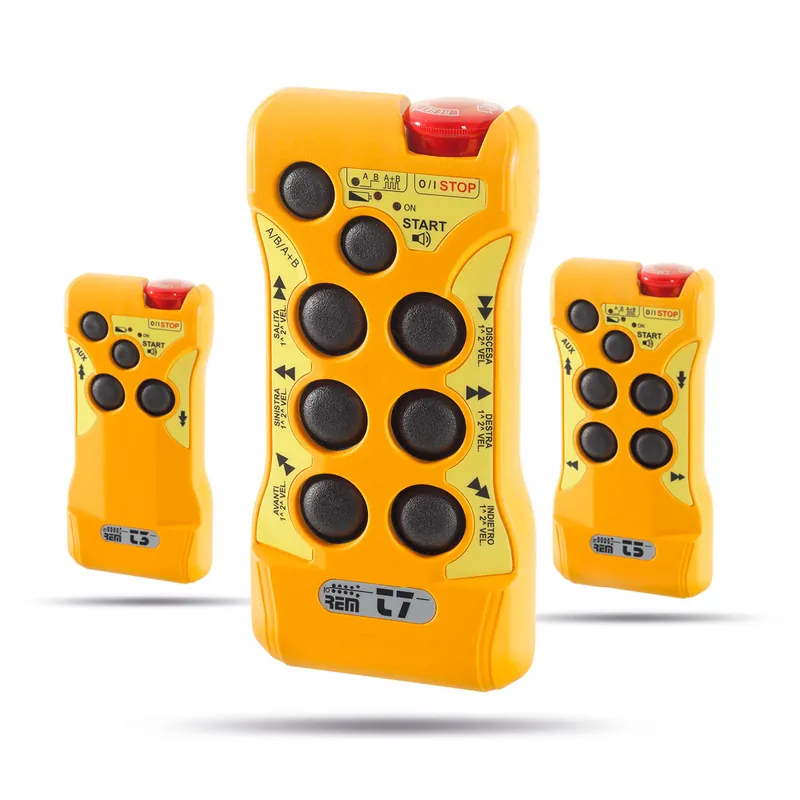

Small, handy, versatile. Hard-wearing and long lasting; internal battery. With 3, 5 or 7 buttons, the T series is designed for supremely practical use: T3 is the ideal solution for equipment with limited functions; T5 is versatile and compact; T7 is the versatile, compact remote control with a programmable auxiliary button.
- 2.4 GHz frequency — also available
- Sturdy and ergonomic — IP65 protection grade
- Up to 1,000 working hours — without any recharging
- REMsys code® — transmitter replacement in seconds
Technical Specifications
| Battery | 3.6 V lithium |
|---|---|
| Duration | up to 1,000 working hours – 30 hours of power reserve |
| Dual band frequency | 433 MHz / 60 channels and 870 MHz / 12 channels |
| Other frequencies | 418 MHz / 11 channels (China) – 915 MHz / 51 channels (USA-Canada) |
| Power supply | 12-24 Vdc ±25% – 24-110 Vac ±10% – opt. 220 Vac |
| Safety level, emergency stop | PL d cat. 3 SIL 2 |
| Safety level, buttons | PL c cat. 2 SIL 1 |
| Commands | on/off |
| Dimensions and weight | 174×83×42 mm – 350 g |
| Available receivers | DIN – EcoBox – RubyBox |
| Warranty | 36 months |
