Maximum manageability and versatility: console with 2 to 5 joysticks, induction charging, display and data feedback.
Pail

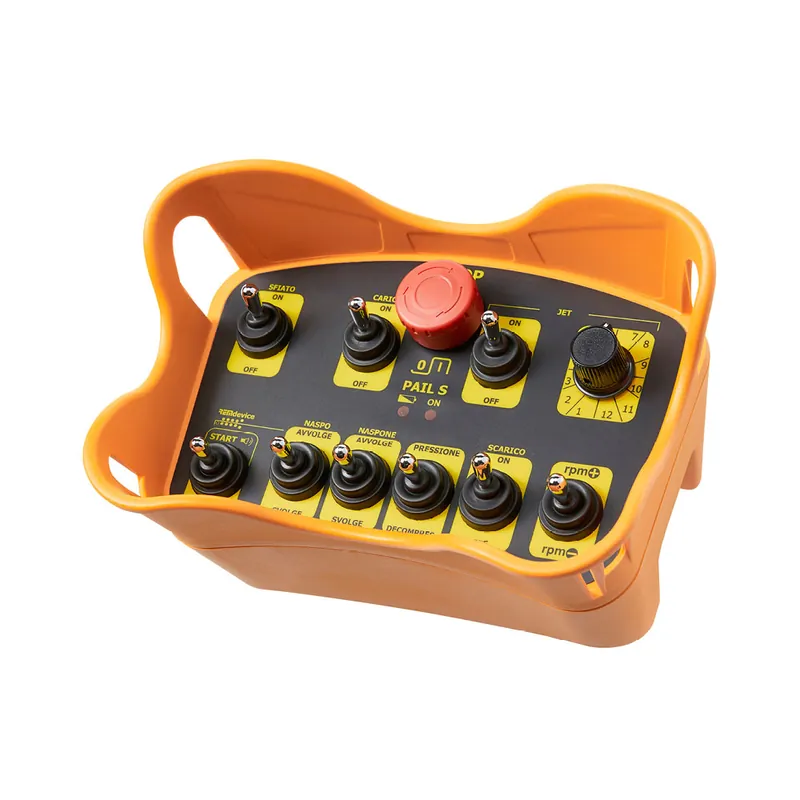

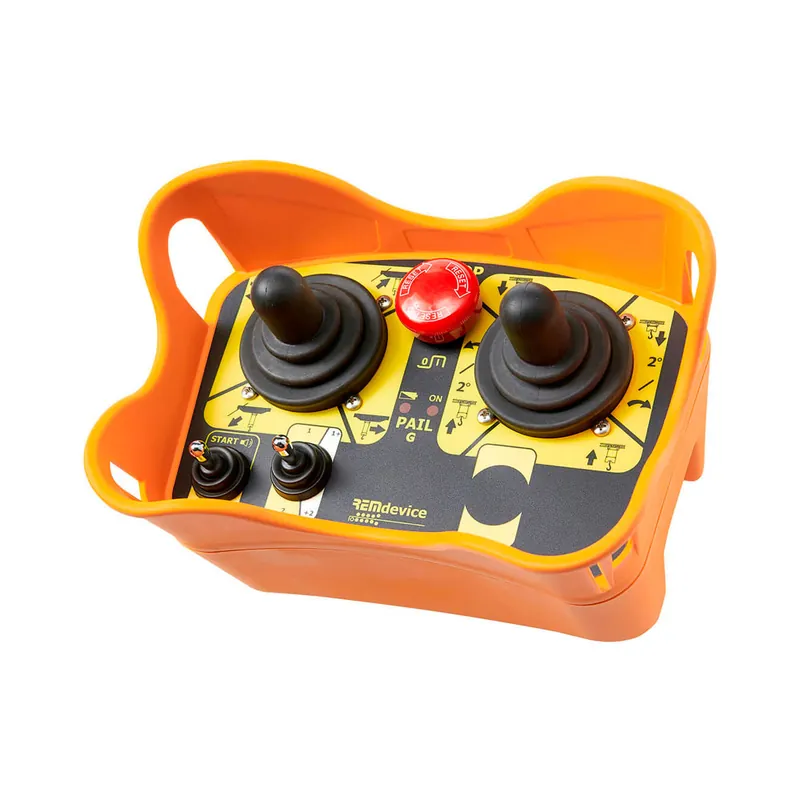

Pail is the solution for high-reliability, high-efficiency manipulators in the field of radio controls for gantry and overhead cranes. First on the market with induction wireless charging, the console is easy to manoeuvre and precise, isolated from dust and humidity, and very easily configurable to meet the requirements of all applications. With 2, 3, 4 or 5 joysticks, selectors and potentiometers, display and data feedback.
Reliability in all conditions. Induction wireless charging, materials and characteristics selected and developed to protect and last over time: everything for maximum reliability. Pail is the “partner” for all applications.
- 5-position joysticks — in ergonomic position

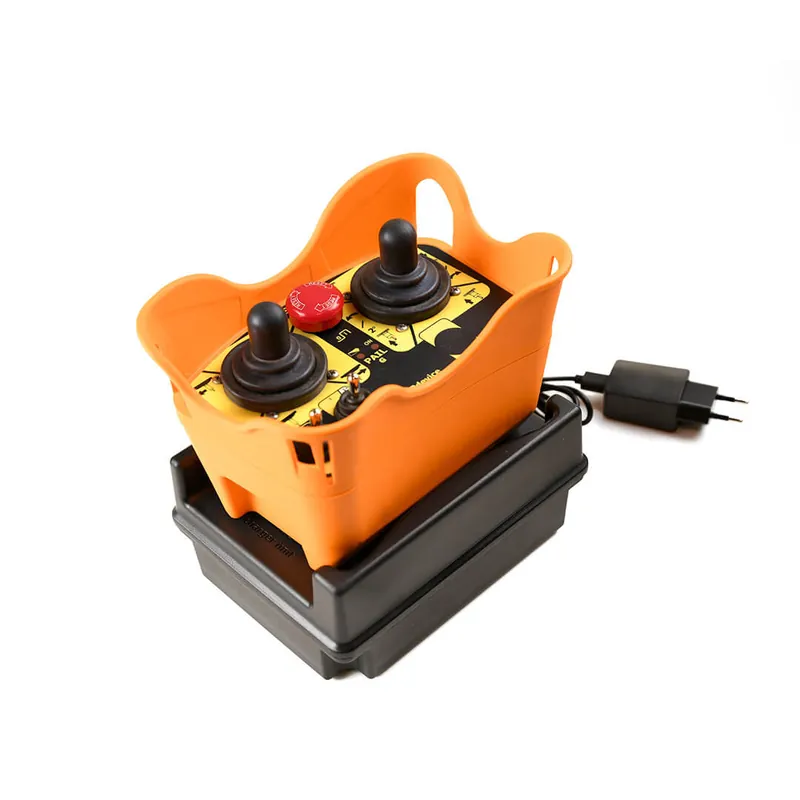

- Induction wireless charging — up to 35 working hours
- Designed to withstand — impacts and falls
- Configurable — standard and special versions with data feedback
Technical Specifications
| Battery type | internal rechargeable induction battery |
|---|---|
| Duration | up to 35 operating hours – 3 hours of power reserve |
| Dual band frequency | 433 MHz / 60 channels and 870 MHz / 12 channels |
| Other frequencies | 418 MHz / 11 channels (China) – 915 MHz / 51 channels (USA-Canada) |
| Power supply | 12-24 Vdc ±25% – 24-110 Vac ±10% |
| Safety level, emergency stop | PL d cat. 3 SIL 2 |
| Safety level, joystick | PL c cat. 2 SIL 1 |
| Commands | on/off – CANbus – PWM – voltage/current – RS 422/485 |
| Dimensions and weight | 200×135×130 mm – 800 g |
| LCD display | 1.3” |
| Available receivers | DIN – EcoBox – RubyBox – EcoCan – Mobile |
| Warranty | 36 months, battery included |
