A step forward in all fields: endless configurations with joysticks, proportionals and special actuators; SIL 3 emergency stop, 24/7 non-stop operation.

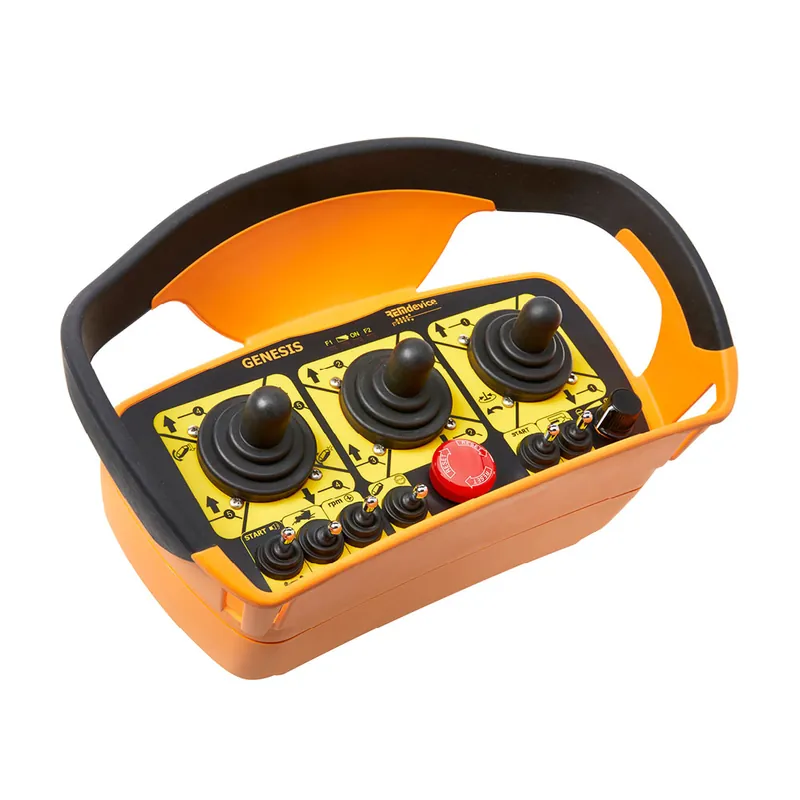

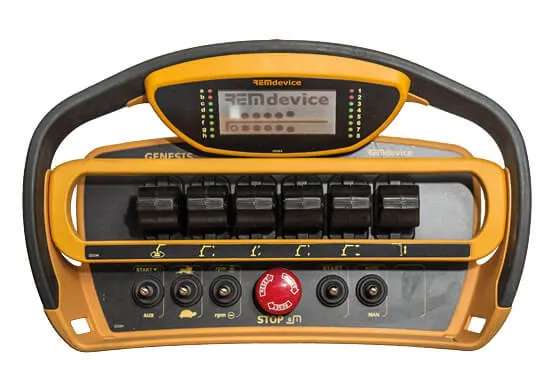

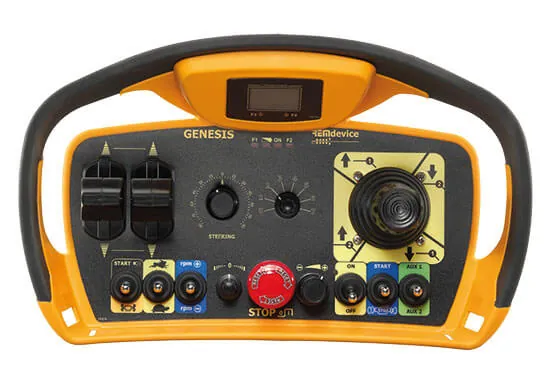

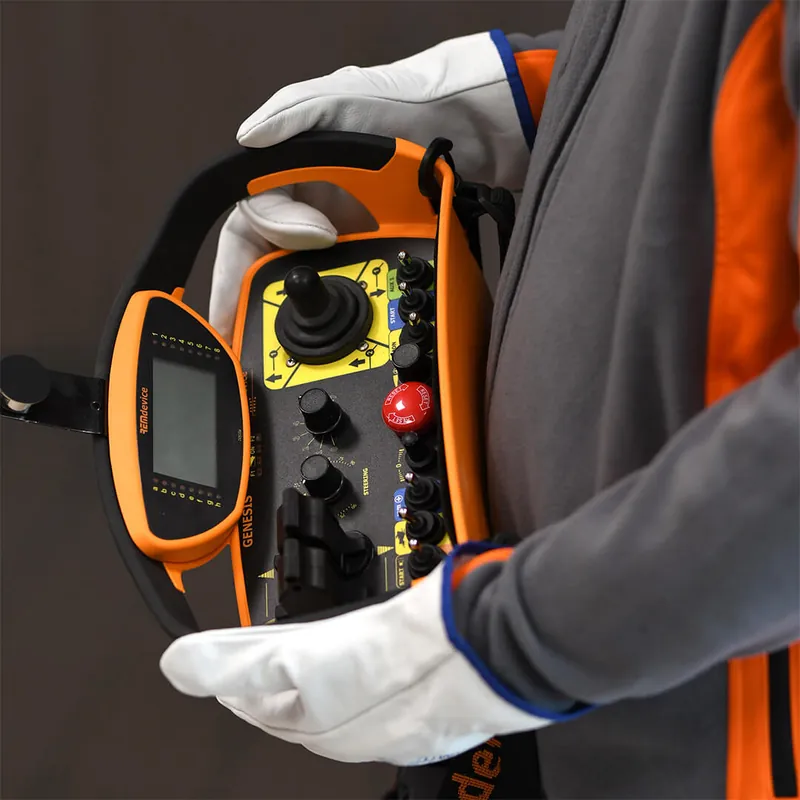

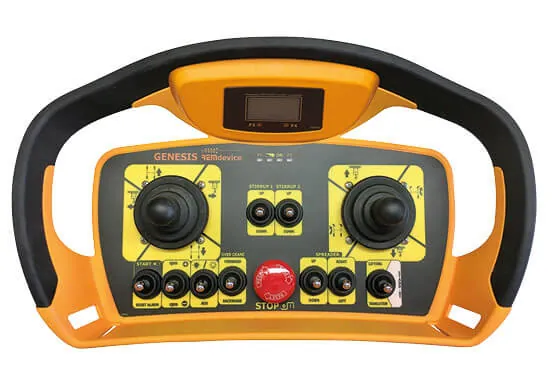

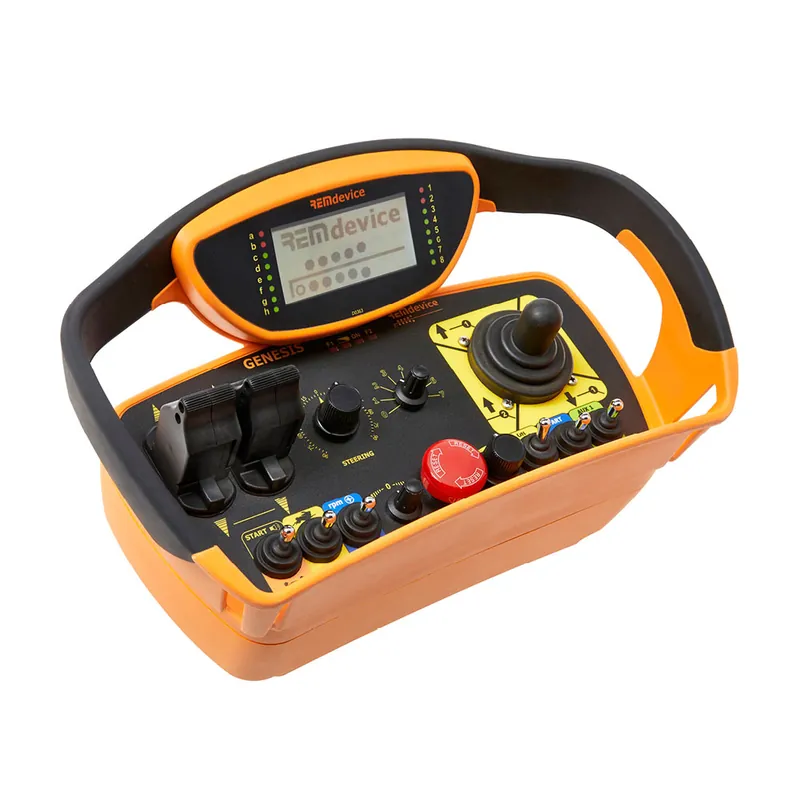

Genesis
Fully isolated from dust and humidity, Genesis has been designed to widen configuration possibilities to the maximum for the most demanding applications. Simple and effective in any working environment without being cumbersome, it can house various types of actuators and joysticks, selectors and potentiometers, buttons, data feedback and 2.6” and 3.2” displays. A universal platform that finds application from logistics to lifting, from marine and rail transport and excavation to every type of crawler, aerial platforms, forestry and mining.
Endless configurations. Joysticks — manageability and flexibility; proportionals — precision and gradability; specials — widely configurable.
24/7 non-stop, for a very long operational duration. Genesis fears no challenge: its recognised resistance to work exploits the tested yet innovative (patented) wireless induction recharging system.
- Resistant and practical case — pleasant design

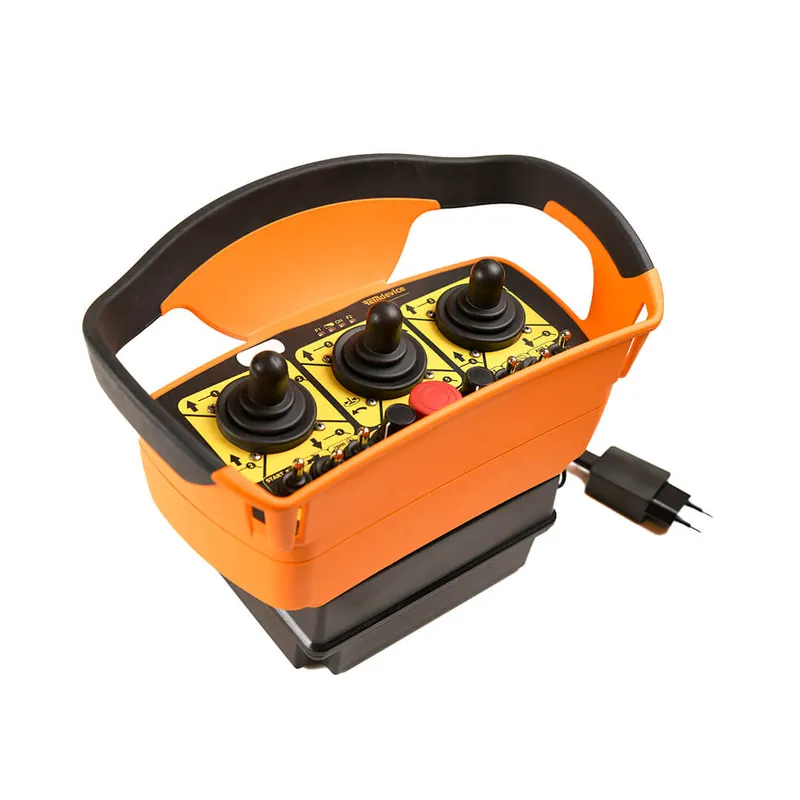

- Induction wireless charging — up to 35 working hours
- Support bar — and control guide
- Configurable — for all applications
Technical Specifications
| Battery type | internal rechargeable induction battery |
|---|---|
| Duration | up to 35 operating hours – 3 hours of power reserve |
| Dual band frequency | 433 MHz / 60 channels and 870 MHz / 12 channels |
| Other frequencies | 418 MHz / 11 channels (China) – 915 MHz / 51 channels (USA-Canada) |
| Power supply | 12-24 Vdc ±25% – 24-110 Vac ±10% |
| Safety level, emergency stop | PL e cat. 4 SIL 3 |
| Safety level, joystick | PL d cat. 3 SIL 2 |
| Commands | on/off – CANbus – PWM – voltage/current – RS 422/485 |
| Dimensions and weight | 310×193×163 mm – 1580 g |
| Graphic display | 1.6” and 3.2” |
| Available receivers | DIN – EcoBox – RubyBox – EcoCan – Mobile |
| Warranty | 36 months, battery included |
