AC 500 V / DC 250 V NH blade fuse-links with gG and aM characteristics, sizes 000 to 4a.

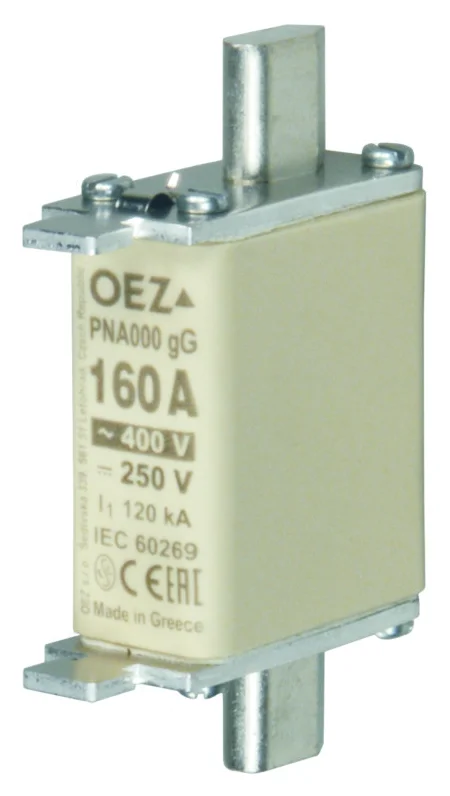

PNA NH Blade Fuse-Links (AC 500 V)

PNA NH Blade Fuse-Links (AC 500 V)

AC 500 V / DC 250 V NH blade fuse-links with gG and aM characteristics, sizes 000 to 4a. This series contains 89 references.

Characteristics: gG — general purpose, cable and line protection; aM — motor protection, short circuit only.

The list is taken from OEZ's current Varius catalogue; click a type code for technical data, dimension drawings and documents on the OEZ product page. Contact us for price and stock.

Fuse-links of size 000

TypeOrder codeSizeCurrentVoltageCharacteristic
PNA000 6A gGOEZ:404770006 AAC 500 V/DC 250 VgG
PNA000 10A gGOEZ:4047800010 AAC 500 V/DC 250 VgG
PNA000 16A gGOEZ:4047900016 AAC 500 V/DC 250 VgG
PNA000 20A gGOEZ:4048000020 AAC 500 V/DC 250 VgG
PNA000 25A gGOEZ:4048100025 AAC 500 V/DC 250 VgG
PNA000 32A gGOEZ:4048200032 AAC 500 V/DC 250 VgG
PNA000 35A gGOEZ:4048300035 AAC 500 V/DC 250 VgG
PNA000 40A gGOEZ:4048400040 AAC 500 V/DC 250 VgG
PNA000 50A gGOEZ:4048500050 AAC 500 V/DC 250 VgG
PNA000 63A gGOEZ:4048600063 AAC 500 V/DC 250 VgG
PNA000 80A gGOEZ:4048700080 AAC 500 V/DC 250 VgG
PNA000 100A gGOEZ:40488000100 AAC 500 V/DC 250 VgG
PNA000 125A gGOEZ:40489000125 AAC 500 V/DC 250 VgG
PNA000 160A gGOEZ:40490000160 AAC 400 V/DC 250 VgG
PNA000 6A aMOEZ:404910006 AAC 500 V/DC 250 VaM
PNA000 10A aMOEZ:4049200010 AAC 500 V/DC 250 VaM
PNA000 16A aMOEZ:4049400016 AAC 500 V/DC 250 VaM
PNA000 20A aMOEZ:4049500020 AAC 500 V/DC 250 VaM
PNA000 25A aMOEZ:4049600025 AAC 500 V/DC 250 VaM
PNA000 32A aMOEZ:4049700032 AAC 500 V/DC 250 VaM
PNA000 40A aMOEZ:4049800040 AAC 500 V/DC 250 VaM
PNA000 50A aMOEZ:4049900050 AAC 500 V/DC 250 VaM
PNA000 63A aMOEZ:4050000063 AAC 500 V/DC 250 VaM
PNA000 80A aMOEZ:4050100080 AAC 500 V/DC 250 VaM
PNA000 100A aMOEZ:40502000100 AAC 500 V/DC 250 VaM

Fuse-links of size 00

TypeOrder codeSizeCurrentVoltageCharacteristic
PNA00 125A gGOEZ:4051300125 AAC 500 V/DC 250 VgG
PNA00 160A gGOEZ:4051400160 AAC 500 V/DC 250 VgG
PNA00 100A aMOEZ:4051500100 AAC 500 V/DC 250 VaM
PNA00 125A aMOEZ:4051600125 AAC 500 V/DC 250 VaM
PNA00 160A aMOEZ:4051700160 AAC 500 V/DC 250 VaM

Fuse-links of size 1

TypeOrder codeSizeCurrentVoltageCharacteristic
PNA1 16A gGOEZ:40428116 AAC 500 V/DC 440 VgG
PNA1 20A gGOEZ:40429120 AAC 500 V/DC 440 VgG
PNA1 25A gGOEZ:40430125 AAC 500 V/DC 440 VgG
PNA1 32A gGOEZ:40431132 AAC 500 V/DC 440 VgG
PNA1 35A gGOEZ:40432135 AAC 500 V/DC 440 VgG
PNA1 40A gGOEZ:40433140 AAC 500 V/DC 440 VgG
PNA1 50A gGOEZ:40434150 AAC 500 V/DC 440 VgG
PNA1 63A gGOEZ:40435163 AAC 500 V/DC 440 VgG
PNA1 80A gGOEZ:40436180 AAC 500 V/DC 440 VgG
PNA1 100A gGOEZ:404371100 AAC 500 V/DC 440 VgG
PNA1 125A gGOEZ:404381125 AAC 500 V/DC 440 VgG
PNA1 160A gGOEZ:404391160 AAC 500 V/DC 440 VgG
PNA1 200A gGOEZ:404401200 AAC 500 V/DC 440 VgG
PNA1 224A gGOEZ:404411224 AAC 500 V/DC 440 VgG
PNA1 250A gGOEZ:404421250 AAC 500 V/DC 440 VgG
PNA1 63A aMOEZ:40443163 AAC 690 V/DC 250 VaM
PNA1 80A aMOEZ:40444180 AAC 690 V/DC 250 VaM
PNA1 100A aMOEZ:404451100 AAC 690 V/DC 250 VaM
PNA1 125A aMOEZ:404461125 AAC 690 V/DC 250 VaM
PNA1 160A aMOEZ:404471160 AAC 690 V/DC 250 VaM
PNA1 200A aMOEZ:404481200 AAC 690 V/DC 250 VaM
PNA1 250A aMOEZ:404491250 AAC 690 V/DC 250 VaM

Fuse-links of size 2

TypeOrder codeSizeCurrentVoltageCharacteristic
PNA2 35A gGOEZ:40386235 AAC 500 V/DC 440 VgG
PNA2 40A gGOEZ:40387240 AAC 500 V/DC 440 VgG
PNA2 50A gGOEZ:40388250 AAC 500 V/DC 440 VgG
PNA2 63A gGOEZ:40389263 AAC 500 V/DC 440 VgG
PNA2 80A gGOEZ:40390280 AAC 500 V/DC 440 VgG
PNA2 100A gGOEZ:403912100 AAC 500 V/DC 440 VgG
PNA2 125A gGOEZ:403922125 AAC 500 V/DC 440 VgG
PNA2 160A gGOEZ:403932160 AAC 500 V/DC 440 VgG
PNA2 200A gGOEZ:403942200 AAC 500 V/DC 440 VgG
PNA2 224A gGOEZ:403952224 AAC 500 V/DC 440 VgG
PNA2 250A gGOEZ:403962250 AAC 500 V/DC 440 VgG
PNA2 315A gGOEZ:403972315 AAC 500 V/DC 440 VgG
PNA2 350A gGOEZ:403982350 AAC 500 V/DC 440 VgG
PNA2 400A gGOEZ:403992400 AAC 500 V/DC 440 VgG
PNA2 125A aMOEZ:404002125 AAC 690 V/DC 250 VaM
PNA2 160A aMOEZ:404012160 AAC 690 V/DC 250 VaM
PNA2 200A aMOEZ:404022200 AAC 690 V/DC 250 VaM
PNA2 250A aMOEZ:404032250 AAC 690 V/DC 250 VaM
PNA2 315A aMOEZ:404042315 AAC 690 V/DC 250 VaM
PNA2 400A aMOEZ:404052400 AAC 690 V/DC 250 VaM

Fuse-links of size 3

TypeOrder codeSizeCurrentVoltageCharacteristic
PNA3 200A gGOEZ:403563200 AAC 500 V/DC 440 VgG
PNA3 224A gGOEZ:403573224 AAC 500 V/DC 440 VgG
PNA3 250A gGOEZ:403583250 AAC 500 V/DC 440 VgG
PNA3 315A gGOEZ:403593315 AAC 500 V/DC 440 VgG
PNA3 350A gGOEZ:403603350 AAC 500 V/DC 440 VgG
PNA3 400A gGOEZ:403613400 AAC 500 V/DC 440 VgG
PNA3 500A gGOEZ:403623500 AAC 500 V/DC 250 VgG
PNA3 630A gGOEZ:403633630 AAC 500 V/DC 250 VgG
PNA3 315A aMOEZ:403643315 AAC 690 V/DC 250 VaM
PNA3 400A aMOEZ:403653400 AAC 690 V/DC 250 VaM
PNA3 500A aMOEZ:403663500 AAC 690 V/DC 250 VaM
PNA3 630A aMOEZ:403673630 AAC 690 V/DC 250 VaM

Fuse-links of size 4a

TypeOrder codeSizeCurrentVoltageCharacteristic
PN4a 630A gGOEZ:343864a630 AAC 500 V/DC 250 VgG
PN4a 800A gGOEZ:343874a800 AAC 500 V/DC 250 VgG
PN4a 1000A gGOEZ:343884a1000 AAC 500 V/DC 250 VgG
PN4a 1250A gGOEZ:343894a1250 AAC 500 V/DC 250 VgG
PN4a 1600A gGOEZ:343904a1600 AAC 500 V/DC 250 VgG
