100 mm wide fuse-rails for size 3 fuse-links on 185 mm busbar systems.

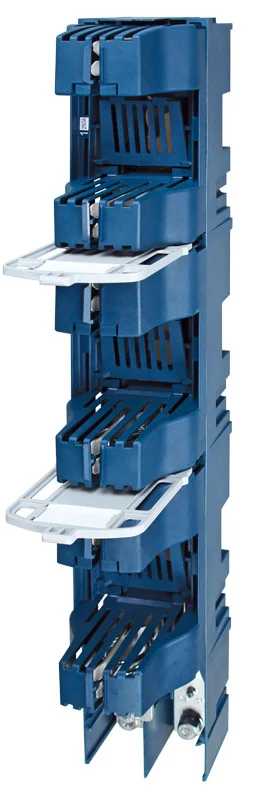

FSR3 Fuse-Rails (up to 630 A)
100 mm wide fuse-rails for size 3 fuse-links on 185 mm busbar systems. This series contains 14 references.
The list is taken from OEZ's current Varius catalogue; click a type code for technical data, dimension drawings and documents on the OEZ product page. Contact us for price and stock.
Fuse-rails
| Type | Order code | Size | Current | Voltage | Busbar spacing |
|---|---|---|---|---|---|
| FSR3-3K-LM | OEZ:43371 | 3 | 630 A | 690 V | 185 mm |
| FSR3-3K-LW | OEZ:43372 | 3 | 630 A | 690 V | 185 mm |
| FSR3-3K-LL | OEZ:43373 | 3 | 630 A | 690 V | 185 mm |
Connecting sets
| Type | Order code | Product | For |
|---|---|---|---|
| CS-FS123-WD | OEZ:43556 | Connecting set | FSD1 |
| CS-FS3-1N | OEZ:47582 | Adapter | FSD3-3.-LM;FSR3-3K-LM |
| CS-FS123-AL | OEZ:47973 | V-shaped clamp | FSD123 |
| CS-FS23-BM20 | OEZ:47996 | Block terminal | FSD2 |
Accessories
| Type | Order code | Product | Current | Poles | For |
|---|---|---|---|---|---|
| OD-FS123-KP | OEZ:43565 | Connecting space cover | – | – | FSD1 |
| OD-FS123-KM | OEZ:43566 | Free place cover | – | – | FSD1 |
| OD-FS123-CM | OEZ:43567 | Free place cover clip | – | – | FSD1 |
| NL-FSD3-31 | OEZ:43390 | Switch-disconnector superstructure | – | 1 | FSR3 |
| NL-FSD3-33 | OEZ:43391 | Switch-disconnector superstructure | – | 3 | FSR3 |
| HP-SE/K | OEZ:11810 | Adapter for parallel outlet | 100 A | – | FSR1 |
| HP-KS | OEZ:09061 | Cable terminal | – | – | HP-SE |
