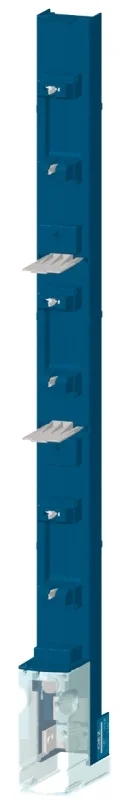

FSR00 Fuse-Rails (up to 160 A)
50 mm wide fuse-rails for size 00 fuse-links on 185 mm busbar systems. This series contains 14 references.
The list is taken from OEZ's current Varius catalogue; click a type code for technical data, dimension drawings and documents on the OEZ product page. Contact us for price and stock.
Fuse-rails
| Type | Order code | Size | Current | Voltage | Busbar spacing |
|---|---|---|---|---|---|
| FSR00-3D-F | OEZ:43466 | 00 | 160 A | 690 V | 185 mm |
| FSR00-3D-FC | OEZ:43467 | 00 | 160 A | 690 V | 185 mm |
| FSR00-3D-FC-M1 | OEZ:43470 | 00 | 160 A | 690 V | 185 mm |
| FSR00-3D-FC-RM1 | OEZ:43468 | 00 | 160 A | 690 V | 185 mm |
| FSR00-3D-FC-M05 | OEZ:43469 | 00 | 160 A | 690 V | 185 mm |
| FSR00-3D-FC-M05C | OEZ:43471 | 00 | 160 A | 690 V | 185 mm |
Connecting sets
| Type | Order code | Product | For |
|---|---|---|---|
| CS-FS00-3H | OEZ:43421 | Connecting set | – |
| CS-FS00-3P1 | OEZ:43423 | Connecting set | – |
| CS-FS00-3S | OEZ:43425 | Connecting set | – |
| CS-FS00-BM10 | OEZ:48042 | Block terminal | FSD00 |
Accessories
| Type | Order code | Product | Size | Current | Voltage | Busbar spacing | For |
|---|---|---|---|---|---|---|---|
| OD-FS00-DA | OEZ:43428 | Adapter for busbar system | – | – | – | 185 mm | FSR00 |
| OD-FS00-KPD | OEZ:43426 | Connecting space cover | – | – | – | – | FSR00 |
| OD-FS00-DK | OEZ:43427 | Extension cover | – | – | – | – | FSD00 |
| OD-FSR00-K | OEZ:43430 | Fuse cover | 00 | 160 A | 690 V | – | FSR00 (250 A/ZP1) |
