Size 00 vertical fuse switch-disconnectors for 100 and 185 mm busbar spacing, with 1 or 3-pole control.

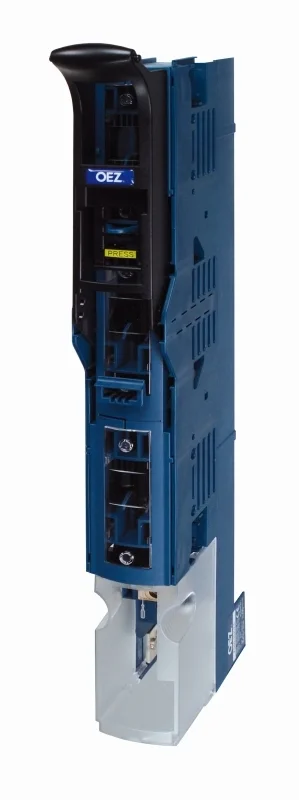

FSD00 Vertical Fuse Switch-Disconnectors, Size 00 (160 A)
Size 00 vertical fuse switch-disconnectors for 100 and 185 mm busbar spacing, with 1 or 3-pole control. This series contains 34 references.
The list is taken from OEZ's current Varius catalogue; click a type code for technical data, dimension drawings and documents on the OEZ product page. Contact us for price and stock.
3-pole controls with spacing 100 mm
| Type | Order code | Size | Current | Voltage | Poles | Busbar spacing |
|---|---|---|---|---|---|---|
| FSD00-33K-F | OEZ:43472 | 00 | 160 A | 690 V | 3 | 100 mm |
| FSD00-33K-FC | OEZ:43473 | 00 | 160 A | 690 V | 3 | 100 mm |
| FSD00-33K-FC-RM1 | OEZ:43474 | 00 | 160 A | 690 V | 3 | 100 mm |
| FSD00-33K-FC-M05 | OEZ:43475 | 00 | 160 A | 690 V | 3 | 100 mm |
| FSD00-33K-FC-M1 | OEZ:43476 | 00 | 160 A | 690 V | 3 | 100 mm |
| FSD00-33K-FC-M05C | OEZ:43477 | 00 | 160 A | 690 V | 3 | 100 mm |
1-pole controls with spacing 185 mm
| Type | Order code | Size | Current | Voltage | Poles | Busbar spacing |
|---|---|---|---|---|---|---|
| FSD00-31D-F | OEZ:43479 | 00 | 160 A | 690 V | 1 | 185 mm |
| FSD00-31D-FC | OEZ:43481 | 00 | 160 A | 690 V | 1 | 185 mm |
| FSD00-31D-FC-RM1 | OEZ:43483 | 00 | 160 A | 690 V | 1 | 185 mm |
| FSD00-31D-FC-M05 | OEZ:43485 | 00 | 160 A | 690 V | 1 | 185 mm |
| FSD00-31D-FC-M1 | OEZ:43487 | 00 | 160 A | 690 V | 1 | 185 mm |
| FSD00-31D-FC-M05C | OEZ:43489 | 00 | 160 A | 690 V | 1 | 185 mm |
3-pole controls with spacing 185 mm
| Type | Order code | Size | Current | Voltage | Poles | Busbar spacing |
|---|---|---|---|---|---|---|
| FSD00-33D-F | OEZ:43480 | 00 | 160 A | 690 V | 3 | 185 mm |
| FSD00-33D-FC | OEZ:43482 | 00 | 160 A | 690 V | 3 | 185 mm |
| FSD00-33D-FC-RM1 | OEZ:43484 | 00 | 160 A | 690 V | 3 | 185 mm |
| FSD00-33D-FC-M05 | OEZ:43486 | 00 | 160 A | 690 V | 3 | 185 mm |
| FSD00-33D-FC-M1 | OEZ:43488 | 00 | 160 A | 690 V | 3 | 185 mm |
| FSD00-33D-FC-M05C | OEZ:43490 | 00 | 160 A | 690 V | 3 | 185 mm |
Connecting sets
| Type | Order code | Product | For |
|---|---|---|---|
| CS-FS00-3H | OEZ:43421 | Connecting set | – |
| CS-FS00-3P1 | OEZ:43423 | Connecting set | – |
| CS-FS00-3S | OEZ:43425 | Connecting set | – |
| CS-FS00-BM10 | OEZ:48042 | Block terminal | FSD00 |
Accessories
| Type | Order code | Product | Poles | Busbar spacing | For |
|---|---|---|---|---|---|
| OD-FSD00-KA | OEZ:43429 | Adapter for busbar system | – | 185 mm | FSD00-33K |
| OD-FS00-DA | OEZ:43428 | Adapter for busbar system | – | 185 mm | FSR00 |
| OD-FH123-VU | OEZ:18230 | Locking insert | – | – | FSD00 |
| OD-FH-SK | OEZ:12929 | Remote signalling of cover position | – | – | – |
| OD-FSD00-KPK | OEZ:43432 | Connecting space cover | – | – | FSD00-33K |
| OD-FS00-KPD | OEZ:43426 | Connecting space cover | – | – | FSR00 |
| OD-FSD00-VK | OEZ:43433 | Compensation cover | – | – | FSD00-33K |
| OD-FS00-DK | OEZ:43427 | Extension cover | – | – | FSD00 |
| OD-FSD00-TL | OEZ:43431 | Lever of 3-pole control | 3 | – | FSD00-31D |
| OD-FSD00-KMK | OEZ:43434 | Free place cover | – | – | FSD00-33K |
| OD-FSD00-KMD | OEZ:43435 | Free place cover | – | – | FSD00-3.D |
Spare parts
| Type | Order code | For |
|---|---|---|
| ND-FSD00-V1 | OEZ:43436 | FSD00-3.D |
