0.75 – 315 kW asynchronous motor designed for speed control with a frequency converter; 1:10 – 1:100 speed range, ±0.5 % speed accuracy, independently powered cooling fan (IC416).

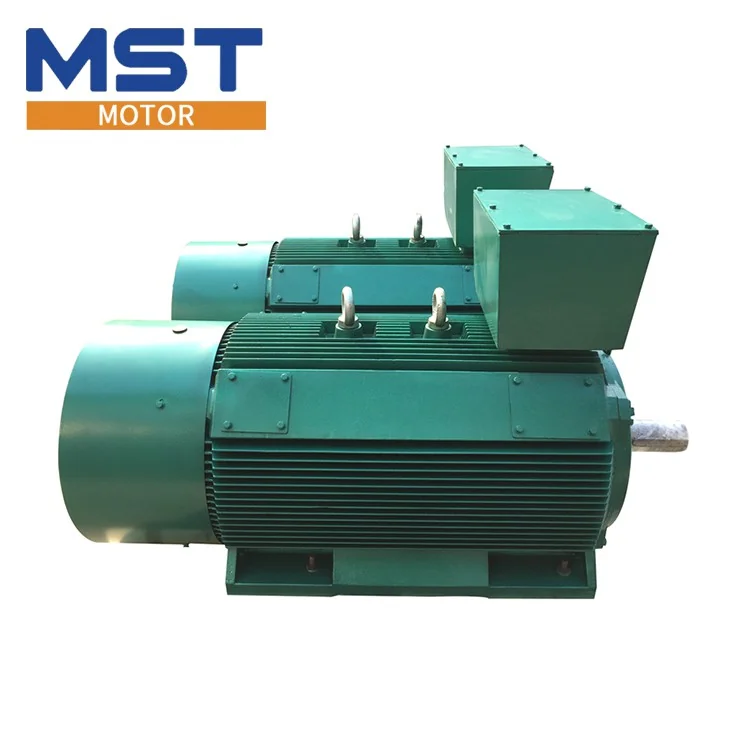

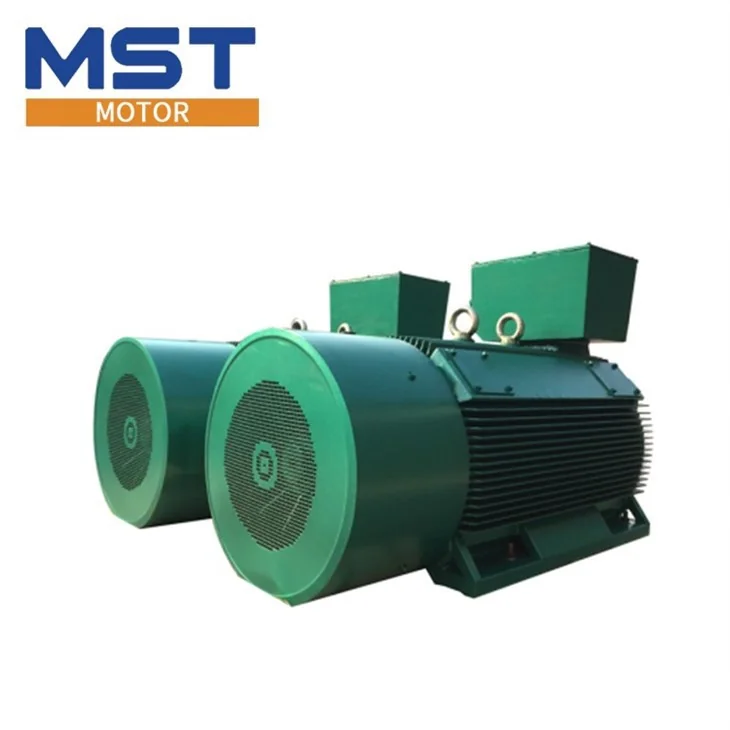

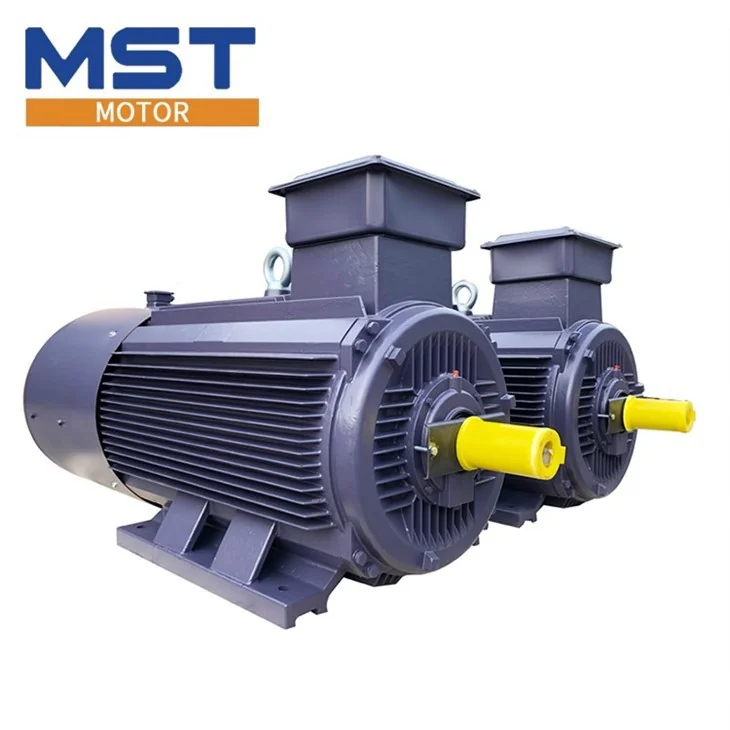

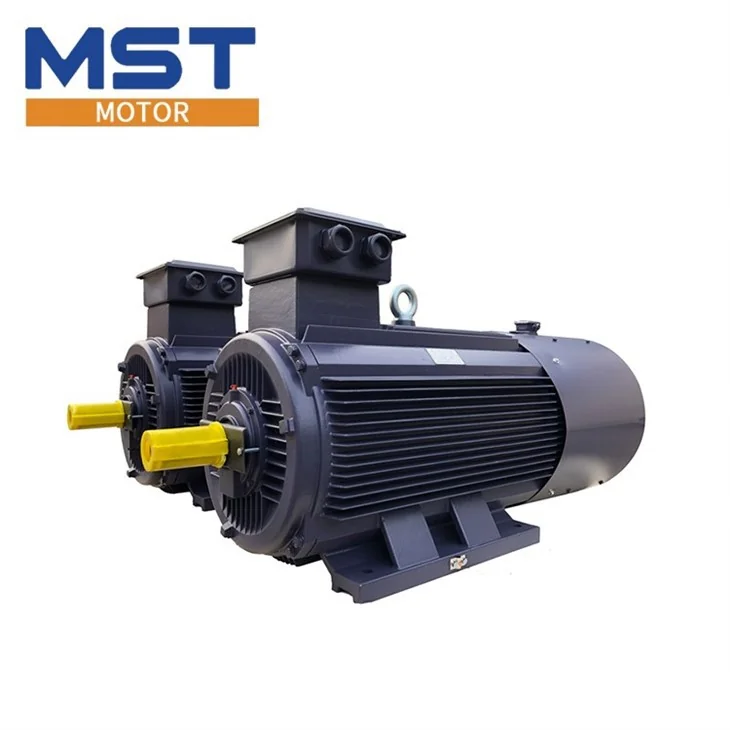

VFD-Ready (Variable-Frequency) Motor
A VFD-ready motor adapts its speed to the load as the drive changes voltage and frequency. A high-strength housing, quality copper windings and an insulation system that withstands inverter pulses keep it safe at low speed; the separately powered cooling fan (IC416) maintains cooling at low rpm.
It runs at constant torque from 3 to 50 Hz and at constant power above: 2-pole motors to 50 – 60 Hz, 4- to 6-pole motors to 50 – 100 Hz.
- Precise speed regulation — 1:10 – 1:100 range, ±0.5 % accuracy
- Durable — withstands 2 – 3 times rated load impact; 10 – 15 year service life
- Quiet — 60 – 70 dB(A) at full load
Technical Specifications
| Voltage / frequency | 380 V, 50 Hz |
|---|---|
| Power | 0.75 – 315 kW |
| Speed | 3,000 / 1,500 / 1,000 / 750 rpm (2 / 4 / 6 / 8 poles) |
| Frequency range | 3 – 50 Hz constant torque; 50 – 60 Hz (2P) and 50 – 100 Hz (4 – 6P) constant power |
| Duty | S1 |
| Protection / cooling | IP55 / IC416 |
| Insulation / temperature rise | class F / class B |
