ISLM inductive sensors for non-contact detection of metal objects: 12 body sizes from Ø7 mm to Ø47.5 mm, sensing distance up to 25 mm, IP67.

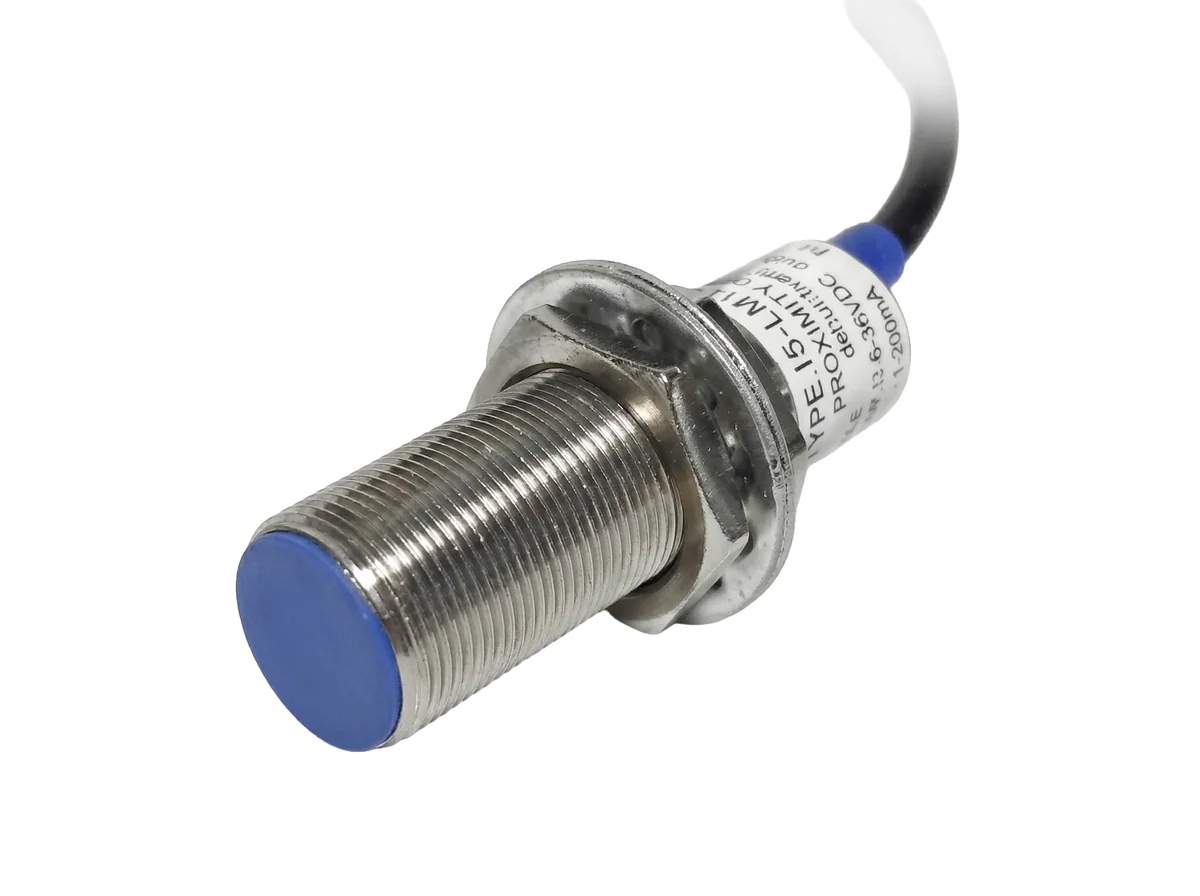

ISLM Inductive Proximity Sensors
The ISLM series consists of inductive proximity sensors that detect the presence and position of metal objects without contact. Twelve sizes are available, from Ø7 and Ø8 mm miniature bodies for tight spaces to the Ø47.5 mm ISLM480 for detecting large metal parts at a distance. All run on 10–30 V DC, are IP67 rated and use an M12 connector.
| Type | Body diameter | Sensing distance | Supply | Protection | Temperature | Connection | Data sheet |
|---|---|---|---|---|---|---|---|
| ISLM6 | Ø7 mm | 1–1.5 mm | 10-30 V DC | IP67 | -25 °C … +70 °C | Integrated cable | |
| ISLM8 | Ø8 mm | 1–1.5 mm | 10-30 V DC | IP67 | -25 °C … +70 °C | Integrated cable | |
| ISLM12 | Ø12 mm | 2–4 mm | 10-30 V DC | IP67 | -25 °C … +70 °C | M12 connector | |
| ISLM14 | Ø14 mm | 3–5 mm | 10-30 V DC | IP67 | -25 °C … +70 °C | M12 connector | |
| ISLM18 | Ø18 mm | 5–8 mm | 10-30 V DC | IP67 | -25 °C … +70 °C | M12 connector | |
| ISLM22 | Ø22 mm | 7–10 mm | 10-30 V DC | IP67 | -25 °C … +70 °C | M12 connector | |
| ISLM24 | Ø24 mm | 8–10 mm | 10-30 V DC | IP67 | -25 °C … +70 °C | M12 connector | |
| ISLM30 | Ø30 mm | 10–15 mm | 10-30 V DC | IP67 | -25 °C … +70 °C | M12 connector | |
| ISLM35 | Ø35 mm | 17 mm | 10-30 V DC | IP67 | -25 °C … +70 °C | M12 connector | |
| ISLM38 | Ø38 mm | 12–18 mm | 10-30 V DC | IP67 | -25 °C … +70 °C | M12 connector | |
| ISLM40 | Ø39.5 mm | 20 mm | 10-30 V DC | IP67 | -25 °C … +70 °C | M12 connector | |
| ISLM480 | Ø47.5 mm | 25 mm | 10-30 V DC | IP67 | -25 °C … +70 °C | M12 connector |
