Programmable incremental encoder Ø58 mm with protruding shaft. Resolution configurable from 1 to 65,536 PPR in the field.

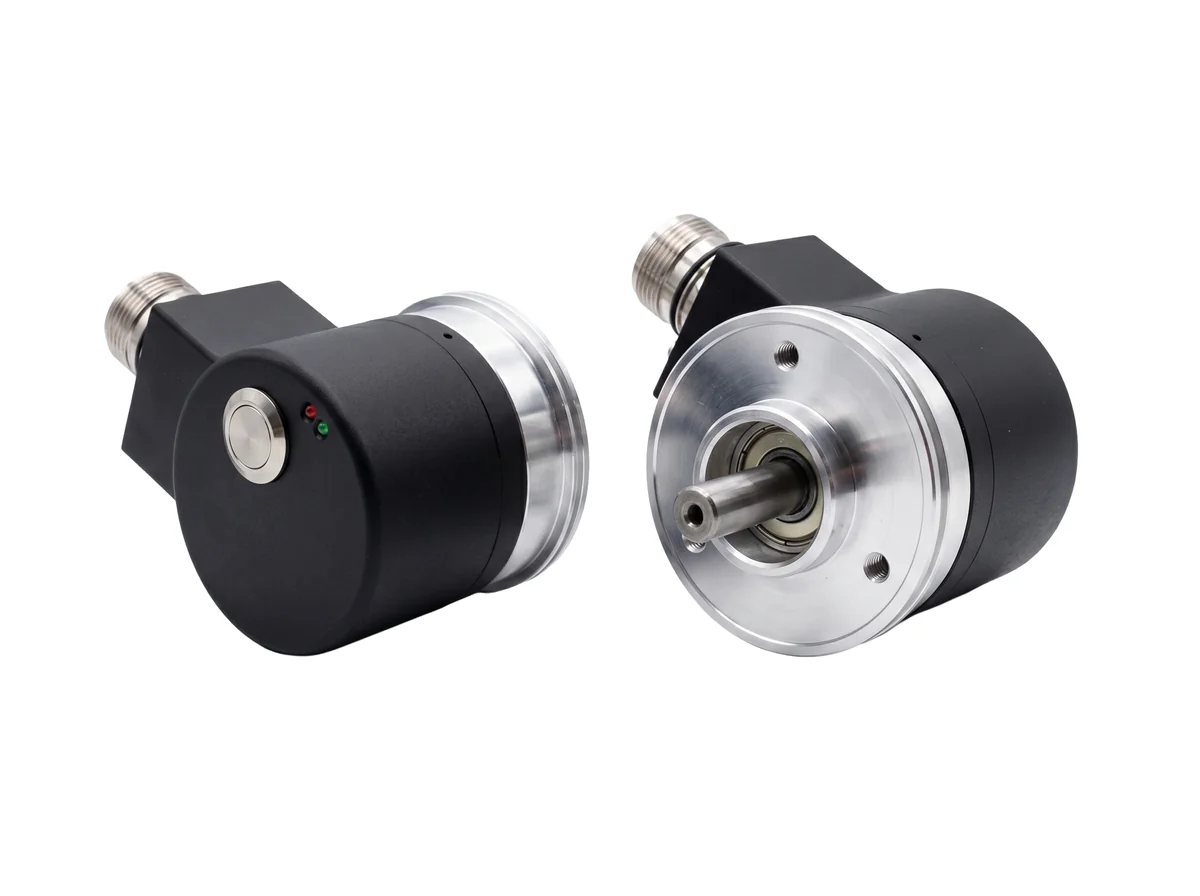

TISP58 Programmable Incremental Encoder Ø58 mm
The TISP58 is a user-programmable resolution optical incremental encoder. Via RS232 serial port (or USB adapter), it is possible to set the resolution from 1 to 65,536 pulses/revolution, the position of the Z index and the counting direction (CW/CCW). Extended temperature range -25°C…+85°C (100°C on request). Short circuit and reverse polarity protection. Ideal for OEMs who need a single product code for multiple applications.
- Technology — optical
- Interface — Line Driver
- Certifications — CE, RoHS
Technical Specifications
| Resolution | Programmable 1–65,536 PPR |
|---|---|
| Power Supply | 5V; 10÷30V |
| Outputs | Line Driver RS-422 |
| Shaft Load | axial 100 N; radial 100 N |
| Max Speed | 6,000 RPM |
| Protection Rating | IP64 / IP65 / IP66 (EN 60529) |
| Operating Temperature | -25 °C … +85 °C |
| Connection | M12 connector / cable |
| Starting Torque | 0.025 Nm; 0.040 Nm with shaft protection |
| Weight | ≈ 0.3 kg |
| Moment of Inertia | 40 g·cm² |
| Bearing Life | 5 × 10⁹ rev (min) |
| Flange Material | corrosion-resistant aluminium |
| Housing Material | polyamide 6 (PA6), metal on request |
| Shaft Material | stainless steel |
| Storage Temperature | -25 °C … +85 °C |
| Humidity | 98 % RH, non-condensing |
| Vibration | 10 g (10 ÷ 2,000 Hz) |
| Shock | 20 g (11 ms) |
Data Sheet (PDF) CAD Drawing 2D/3D (ZIP) Manufacturer Product Page
