Heavy-duty encoder Ø63.5 mm with integrated tachogenerator. 20V/1000RPM output.

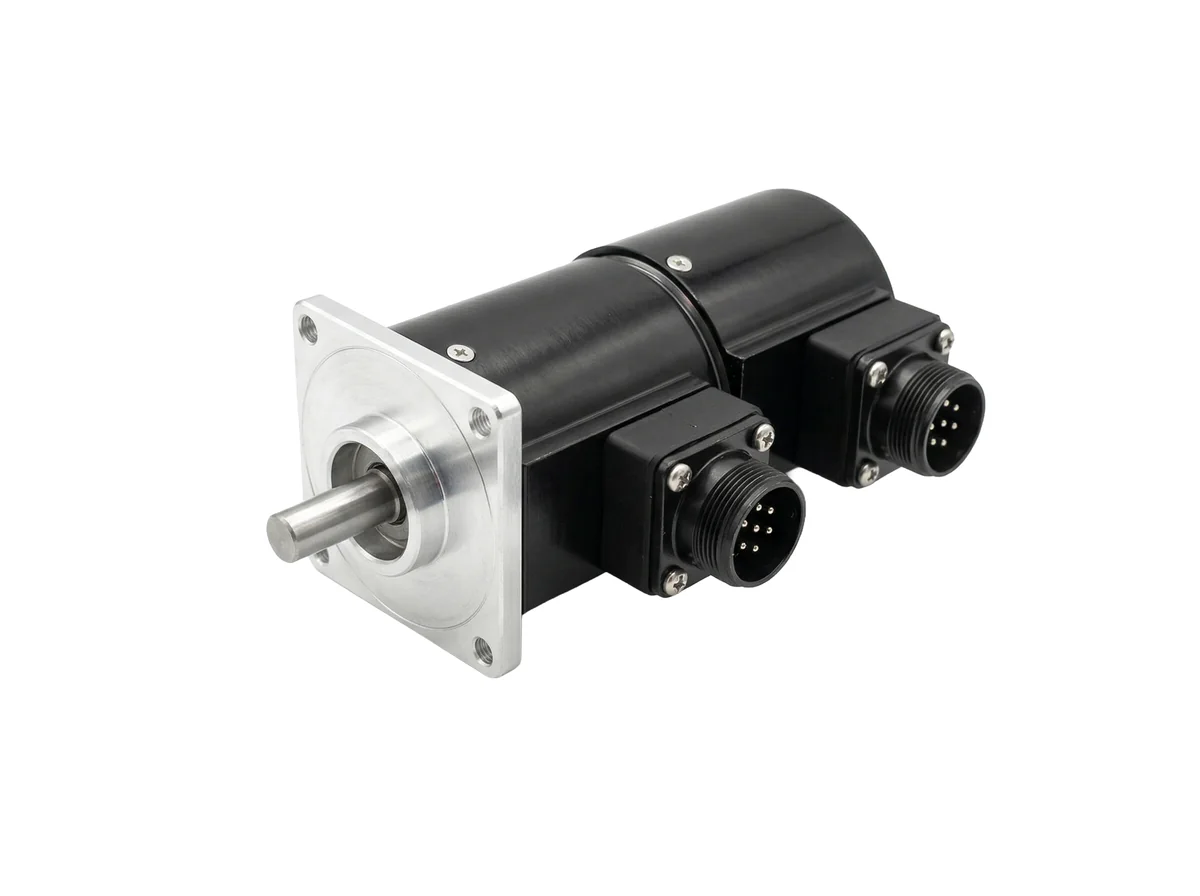

TDT50 Encoder with Tachogenerator Ø63.5 mm
Heavy-duty encoder Ø63.5 mm with integrated tachogenerator. 20V/1000RPM output.
- Technology — optical
- Certifications — CE, RoHS, UL
Technical Specifications
| Resolution | Up to 9,000 PPR |
|---|---|
| Power Supply | 5V; 11÷30V |
| Outputs | S, OC, P, OP, PP2, LD, LD2 |
| Shaft Load | axial 200 N; radial 200 N |
| Max Speed | 4,000 RPM |
| Protection Rating | IP66 |
| Operating Temperature | -10 °C … +70 °C |
| Connection | radial cable / connector |
| Starting Torque | 0.040 Nm; 0.070 Nm with shaft protection |
| Weight | ≈ 0.45 kg |
| Moment of Inertia | 50 g·cm² |
| Bearing Life | 5 × 10⁹ rev (min) |
| Flange Material | thermally stabilised Anticorodal aluminium |
| Housing Material | passivated, painted aluminium with 180 °C inhibitor treatment |
| Shaft Material | stainless steel |
| Storage Temperature | -30 °C … +80 °C |
| Humidity | 98 % RH, non-condensing |
| Vibration | 10 g (10 ÷ 2,000 Hz) |
| Shock | 20 g (11 ms) |
