Electronic metric wheel Ø200 mm for length and rotation measurement. Aluminum or plastic wheel.

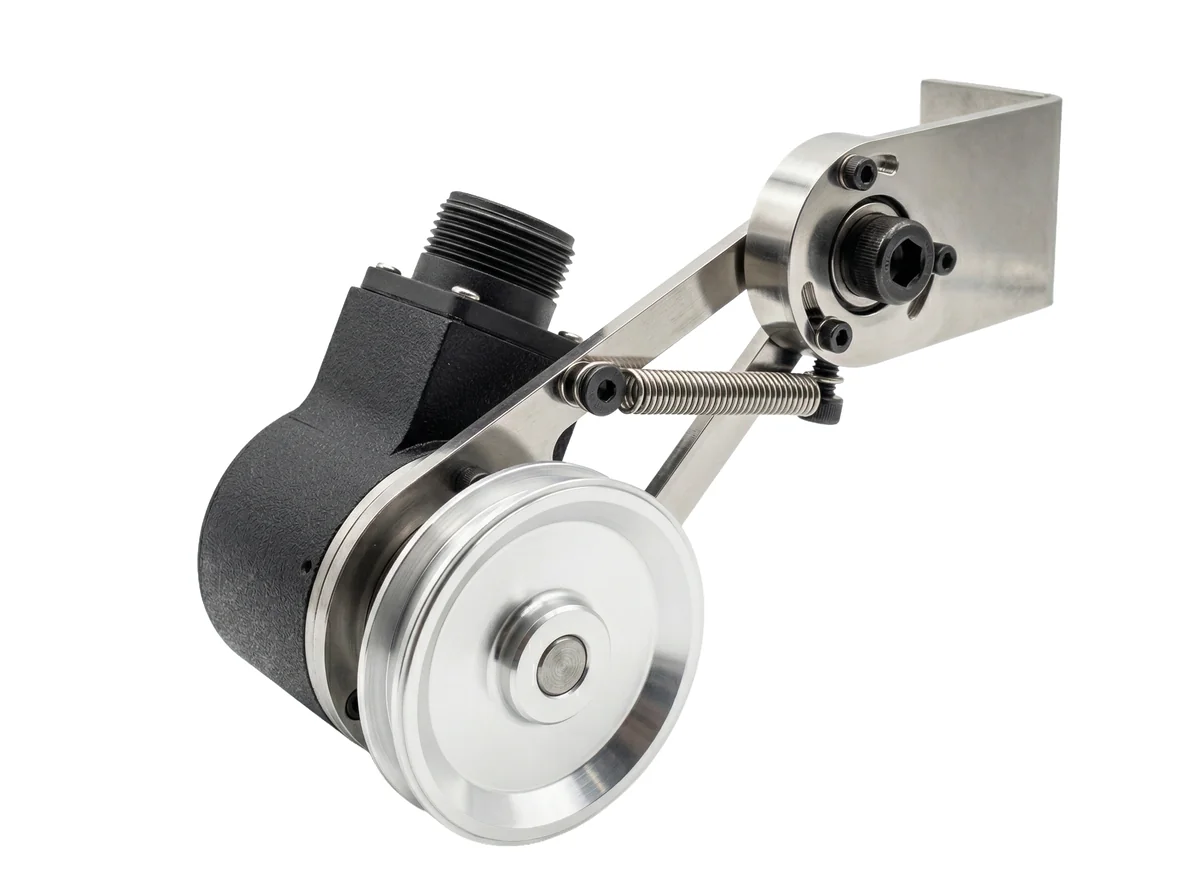

RSTX200 Electronic Measuring Wheel Ø200 mm
Electronic metric wheel Ø200 mm for length and rotation measurement. Aluminum or plastic wheel.
- Technology — optical
- Certifications — CE, RoHS
Technical Specifications
| Resolution | Up to 10,000 PPR |
|---|---|
| Power Supply | 5V; 11÷30V |
| Outputs | S, OC, P, OP, PP2, LD, LD2 |
| Shaft Load | axial 200 N; radial 200 N |
| Max Speed | 6,000 RPM |
| Protection Rating | IP65 |
| Operating Temperature | -10 °C … +70 °C |
| Connection | radial cable / connector |
| Bearing Life | 5 × 10⁹ rev (min) |
| Flange Material | aluminium S11 |
| Housing Material | aluminium S11 |
| Shaft Material | stainless steel |
| Storage Temperature | -30 °C … +80 °C |
| Humidity | 98 % RH, non-condensing |
| Vibration | 10 g (10 ÷ 2,000 Hz) |
| Shock | 20 g (11 ms) |
