MIL, M12, M16 and D-Sub connectors from 5 to 37 poles, a bellows-sealed connector and custom connections for Italsensor encoders.
Mating connectors for the electrical connection of incremental, absolute and programmable encoders: metal-body MIL circular connectors, M12 and M16 field connectors and D-Sub connectors for parallel-output absolute encoders. Custom connection solutions are also built to customer requirements.

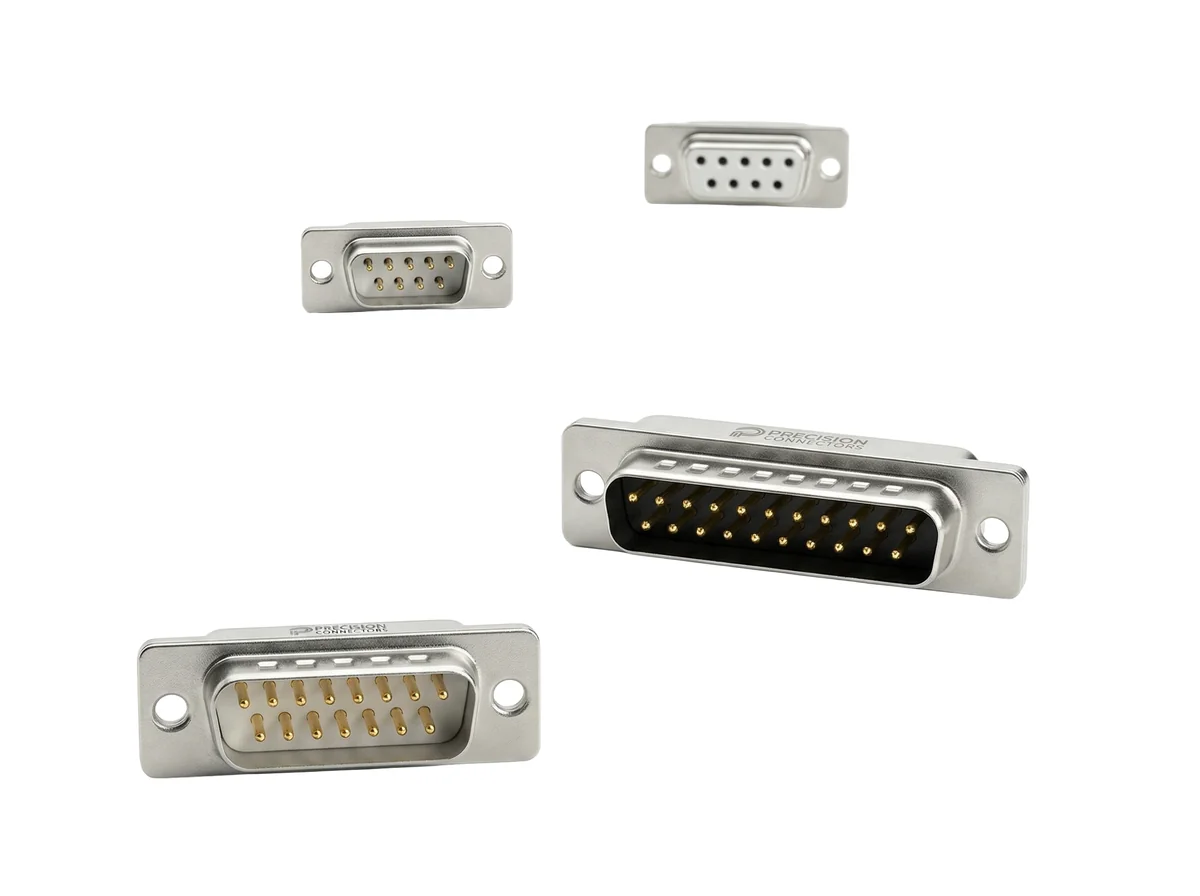

9/15-Pole D-Sub Connectors
9 and 15 pole D-Sub connectors for encoders with parallel output. Metal body, gold contacts.
Technical Specifications
| Protection Rating | IP20 |
|---|---|
| Connection | D-Sub 9/15-pole |

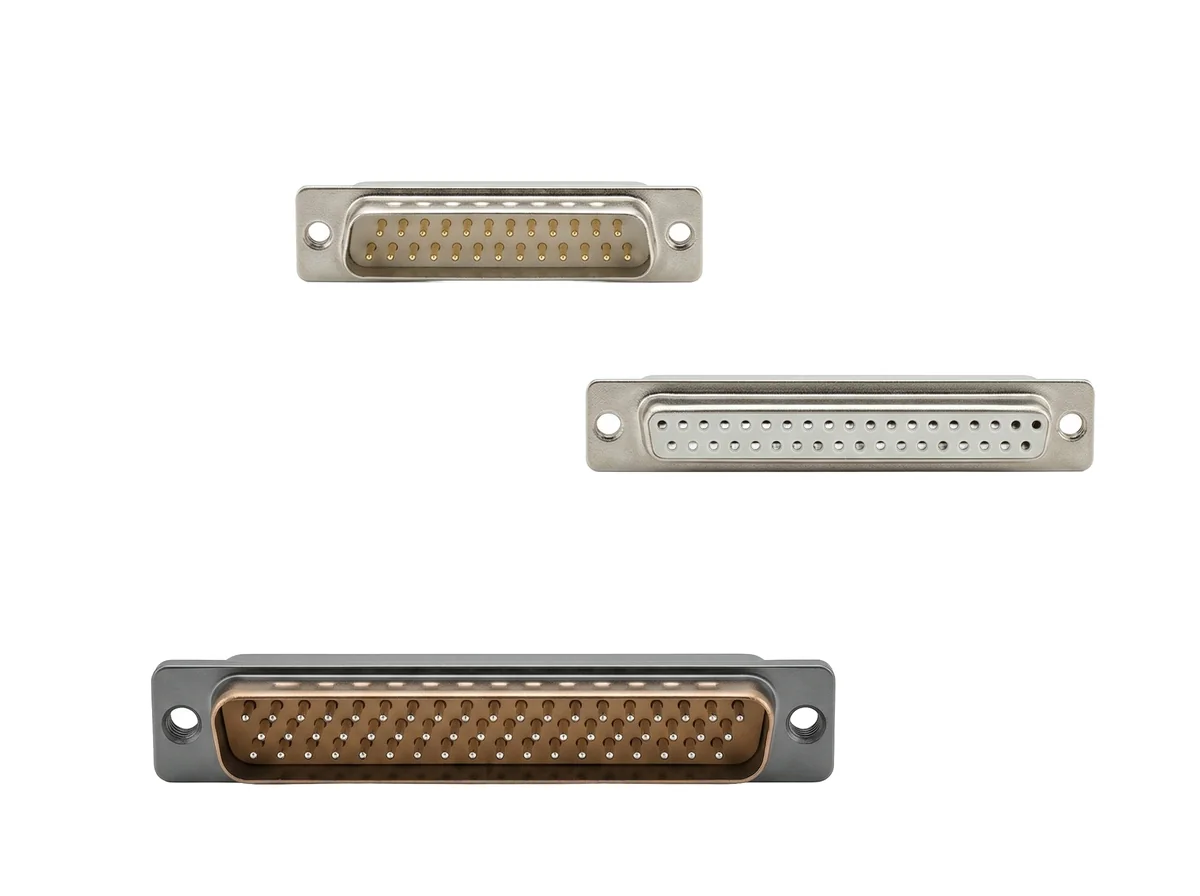

25/37-Pole D-Sub Connectors
25 and 37 pole D-Sub connectors for absolute encoders with parallel output. Metal body, gold contacts.
Technical Specifications
| Protection Rating | IP20 |
|---|---|
| Connection | D-Sub 25/37-pole |

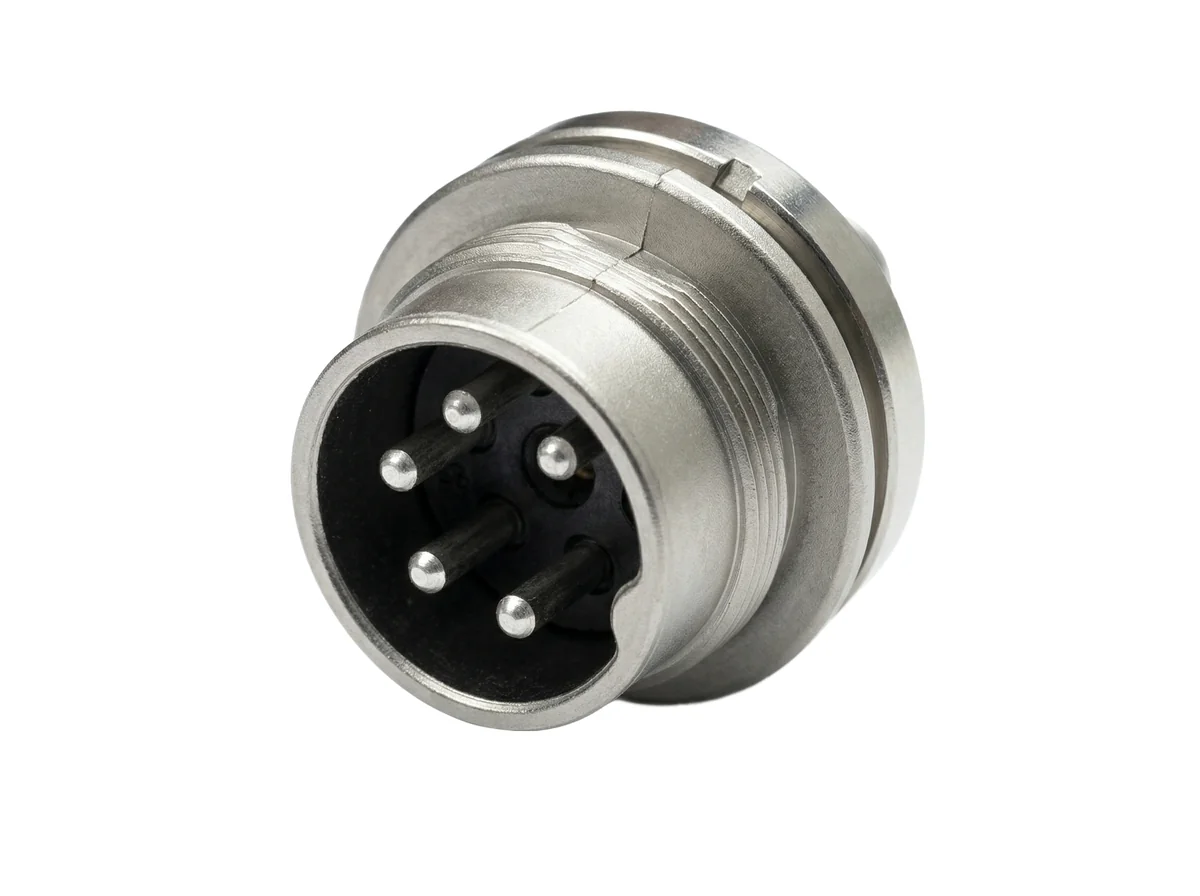

M16 5-Pole Connector
5-pole M16 circular male connector. IP40. For SSI incremental and absolute encoders. Metal body, gold contacts.
Technical Specifications
| Protection Rating | IP40 |
|---|---|
| Connection | 5-pole M16 |

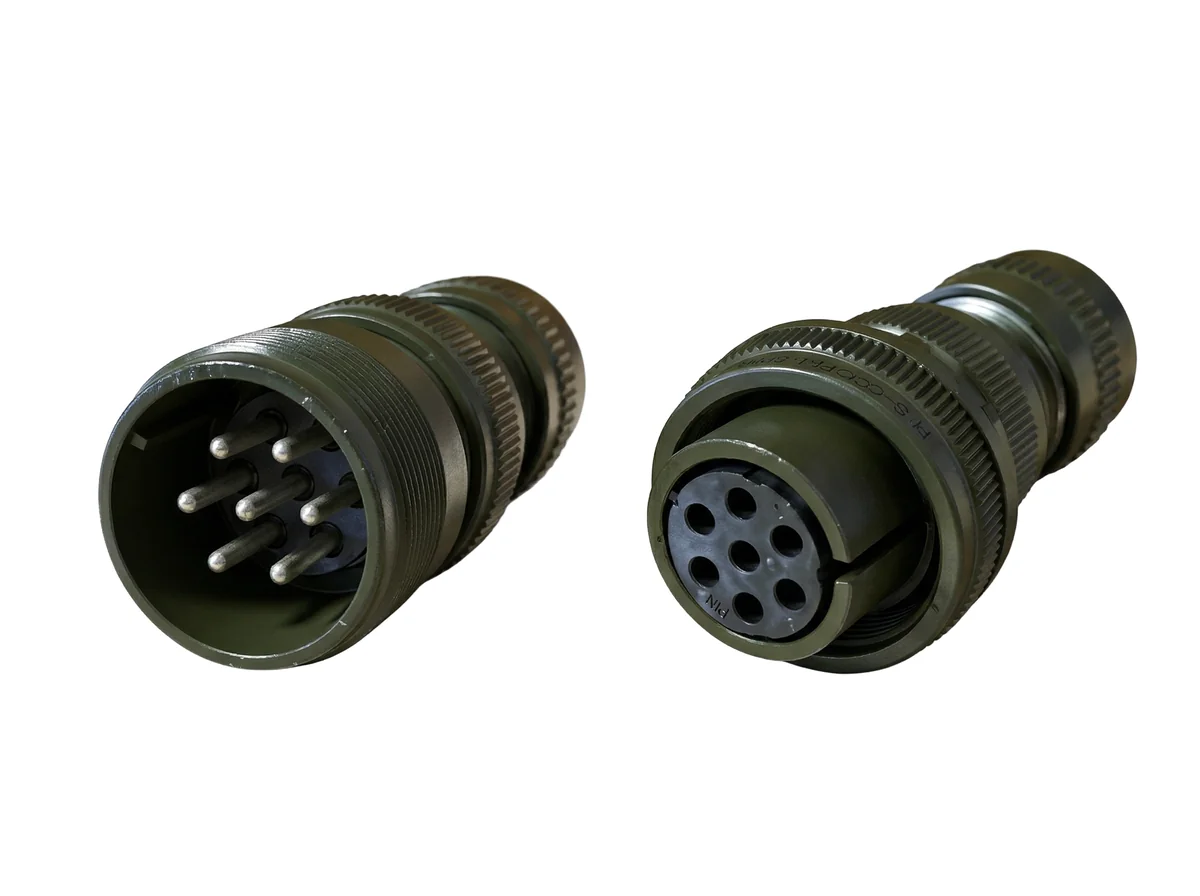

7-Pole MIL Connector (Straight)
7-pole MIL Male/Female connector, Metal body, straight version.
Technical Specifications
| Protection Rating | IP40 |
|---|---|
| Connection | 7-pole MIL |

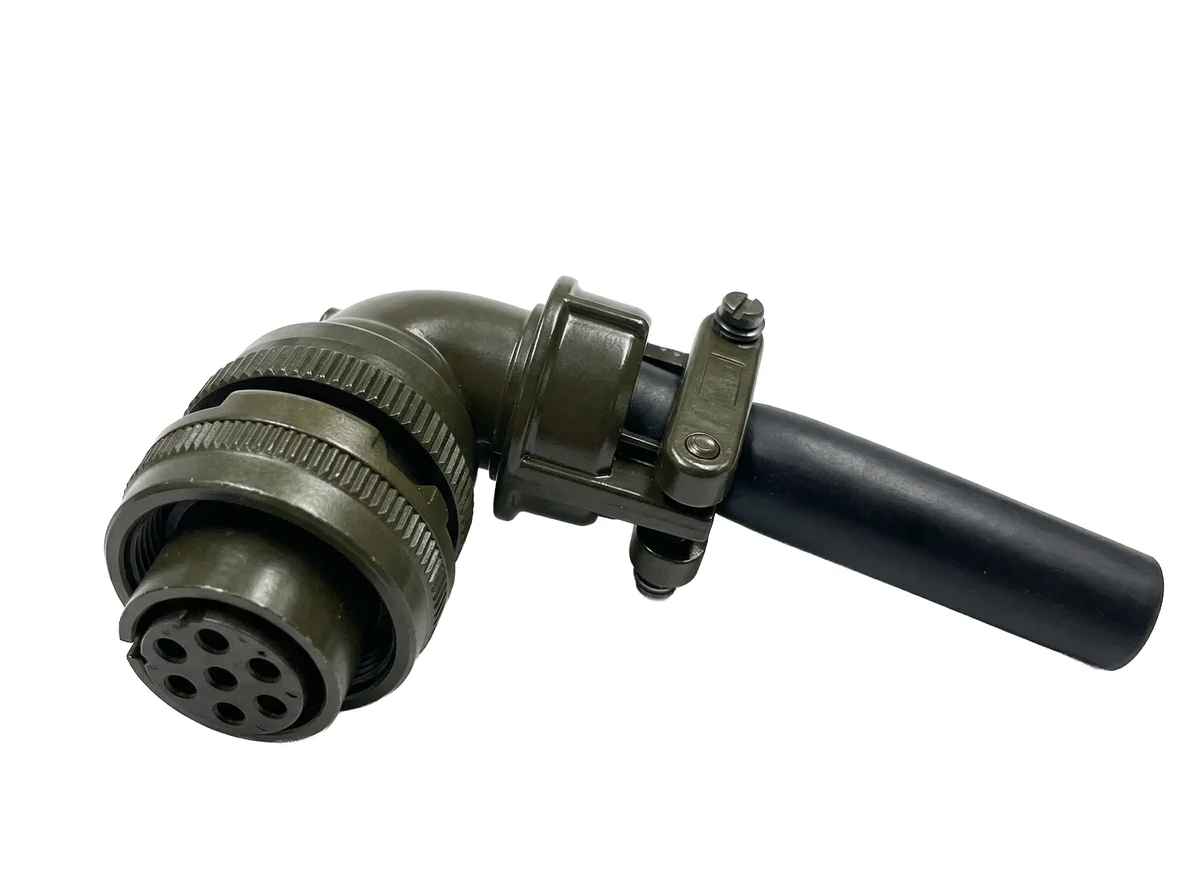

7-Pole MIL Connector (90°)
7-pole 90 degrees MIL female connector for encoders with radial cable exit. Metallic body.
Technical Specifications
| Protection Rating | IP40 |
|---|---|
| Connection | 7-pole MIL 90° |

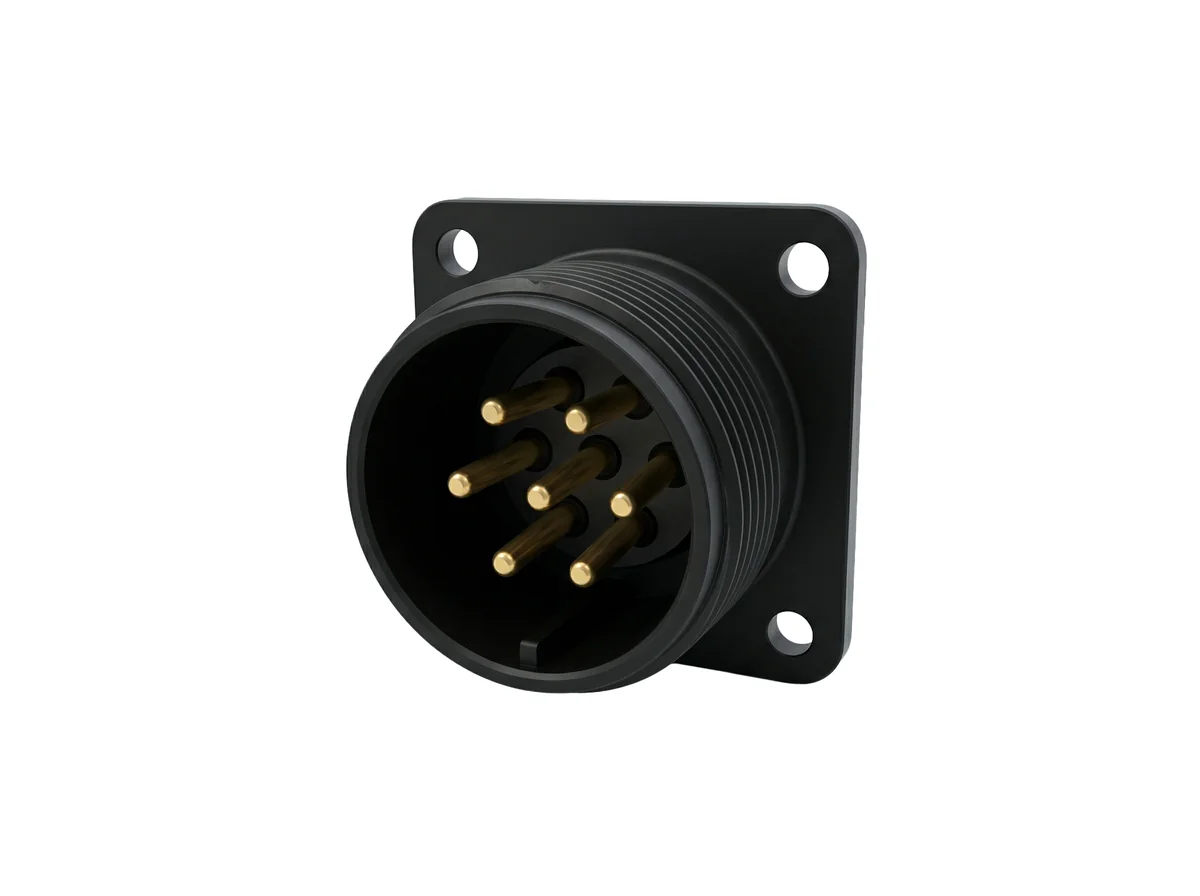

7-Pole Male Connector
7-pole male connector for encoder. Metallic body.
Technical Specifications
| Protection Rating | IP40 |
|---|---|
| Connection | 7-pole MIL |

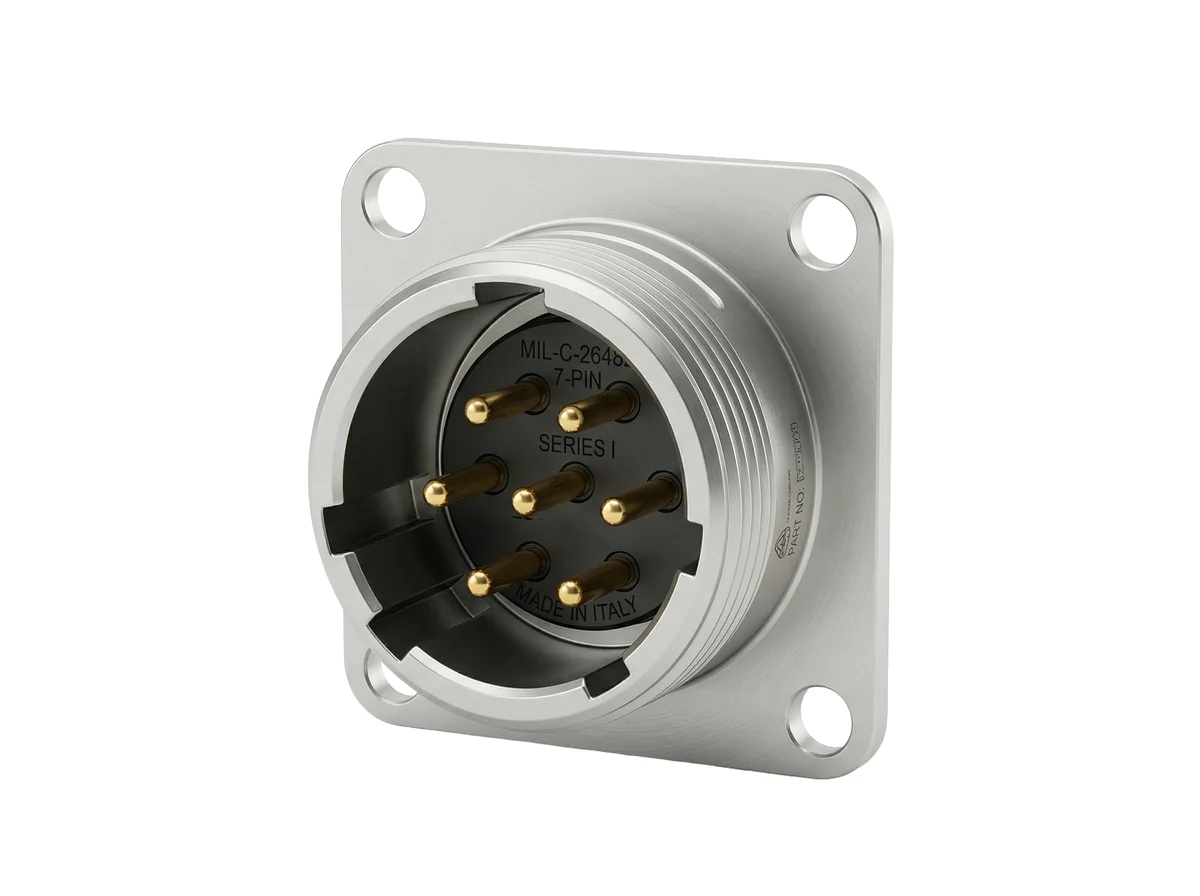

7-Pole Mini Male Connector
7-pole miniature male connector for compact encoders.
Technical Specifications
| Protection Rating | IP67 |
|---|---|
| Connection | 7-pole Mini MIL |

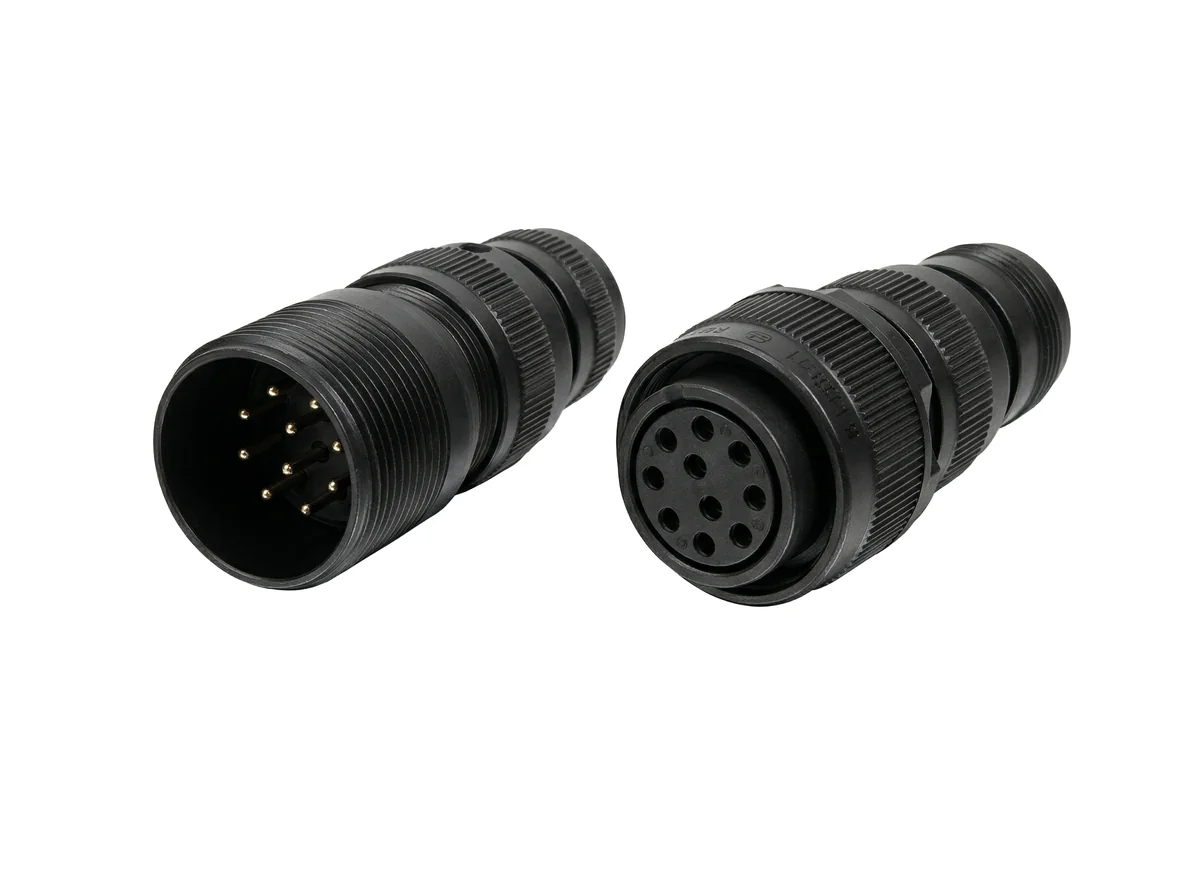

10-Pole Connector
10-pole connector for absolute encoders.
Technical Specifications
| Protection Rating | IP40 |
|---|---|
| Connection | 10-pole MIL |

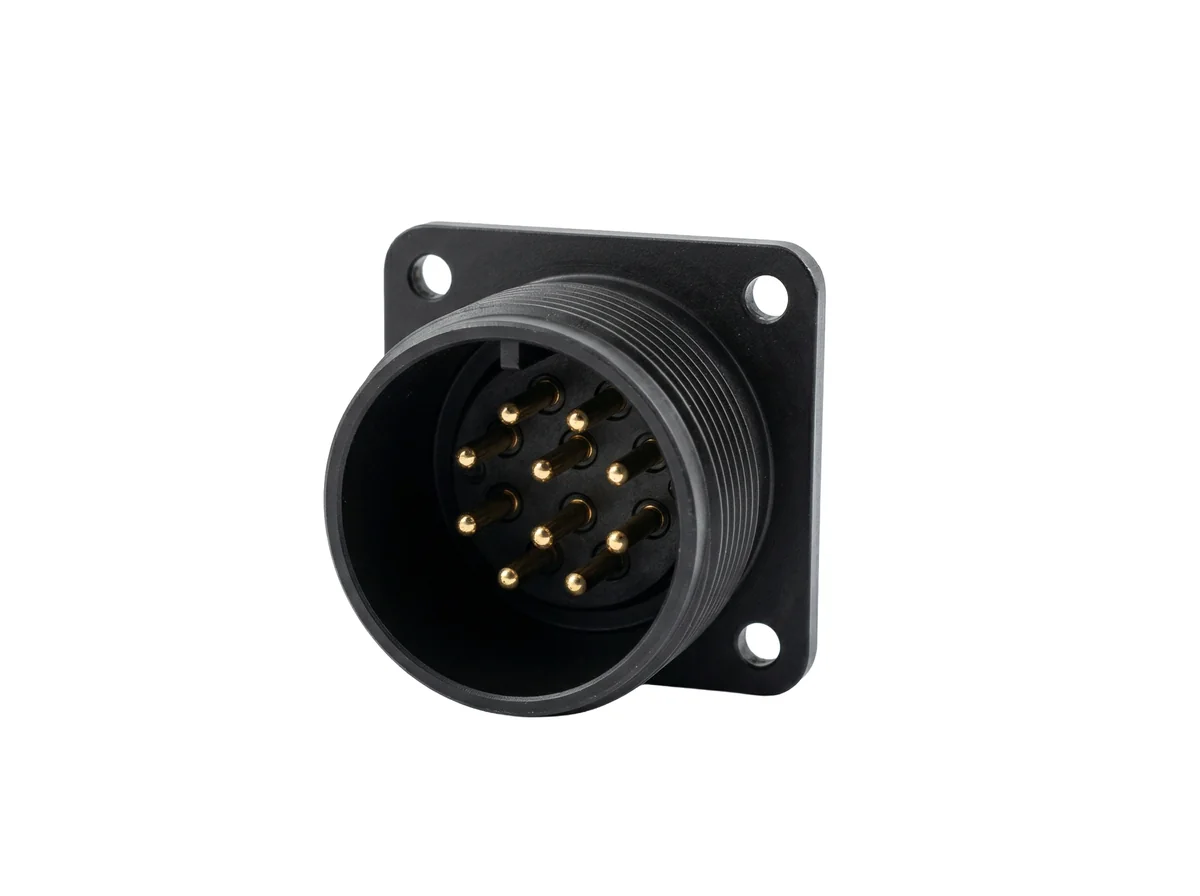

10-Pole Male Connector
10-pole male circular military (MIL) connector.
Technical Specifications
| Protection Rating | IP40 |
|---|---|
| Connection | 10-pole MIL |

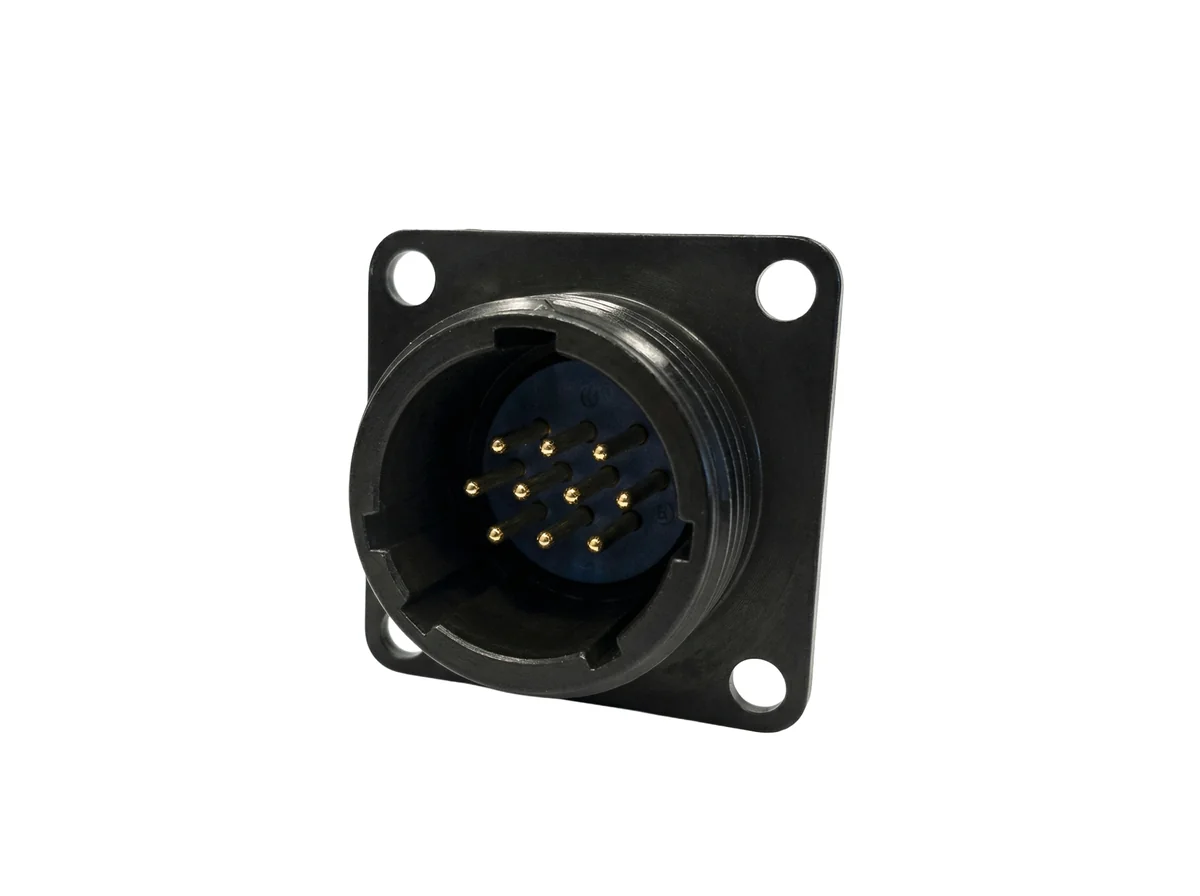

10-Pole Mini Male Connector
10-pole miniature male connector for compact encoders.
Technical Specifications
| Protection Rating | IP67 |
|---|---|
| Connection | 10-pole Mini MIL |

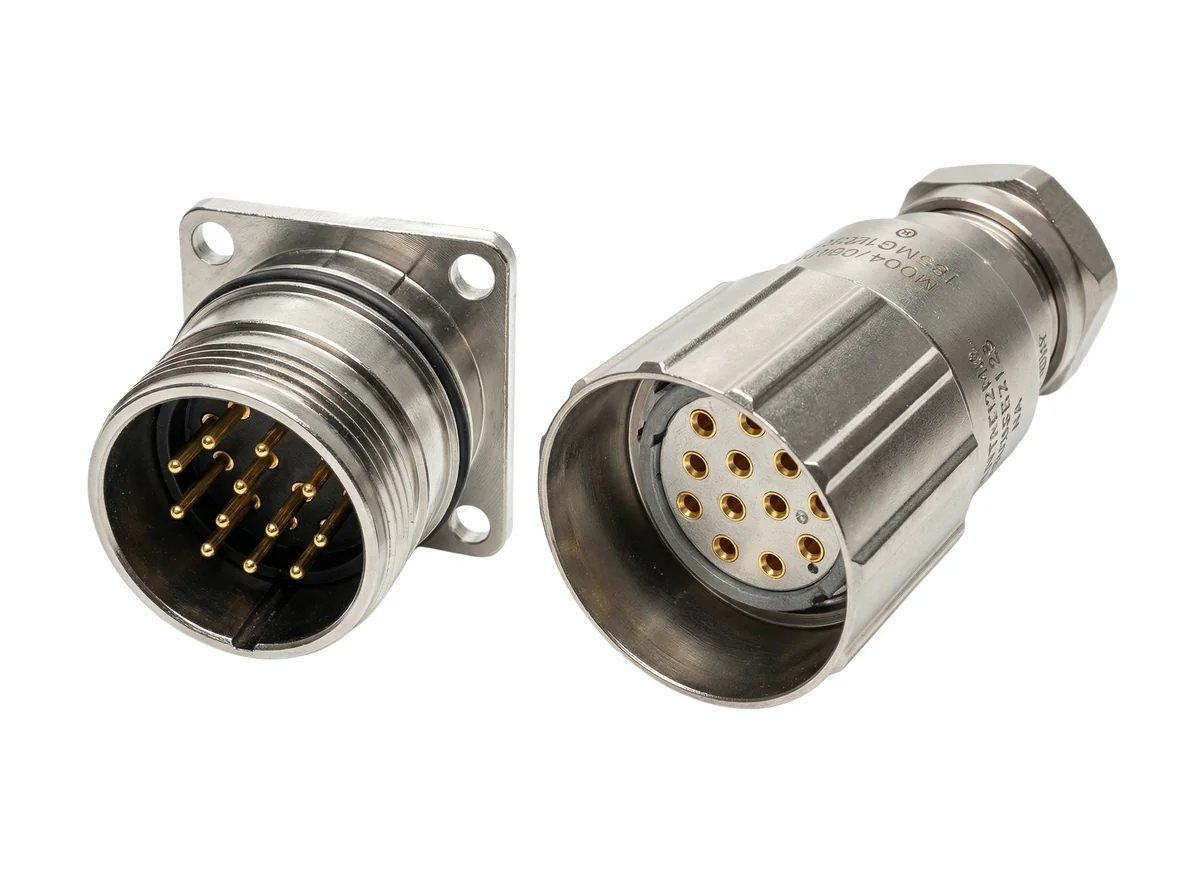

12-Pole Connector
12-pole connector for programmable and absolute multi-turn encoders.
Technical Specifications
| Protection Rating | IP40 |
|---|---|
| Connection | 12-pole M23 |

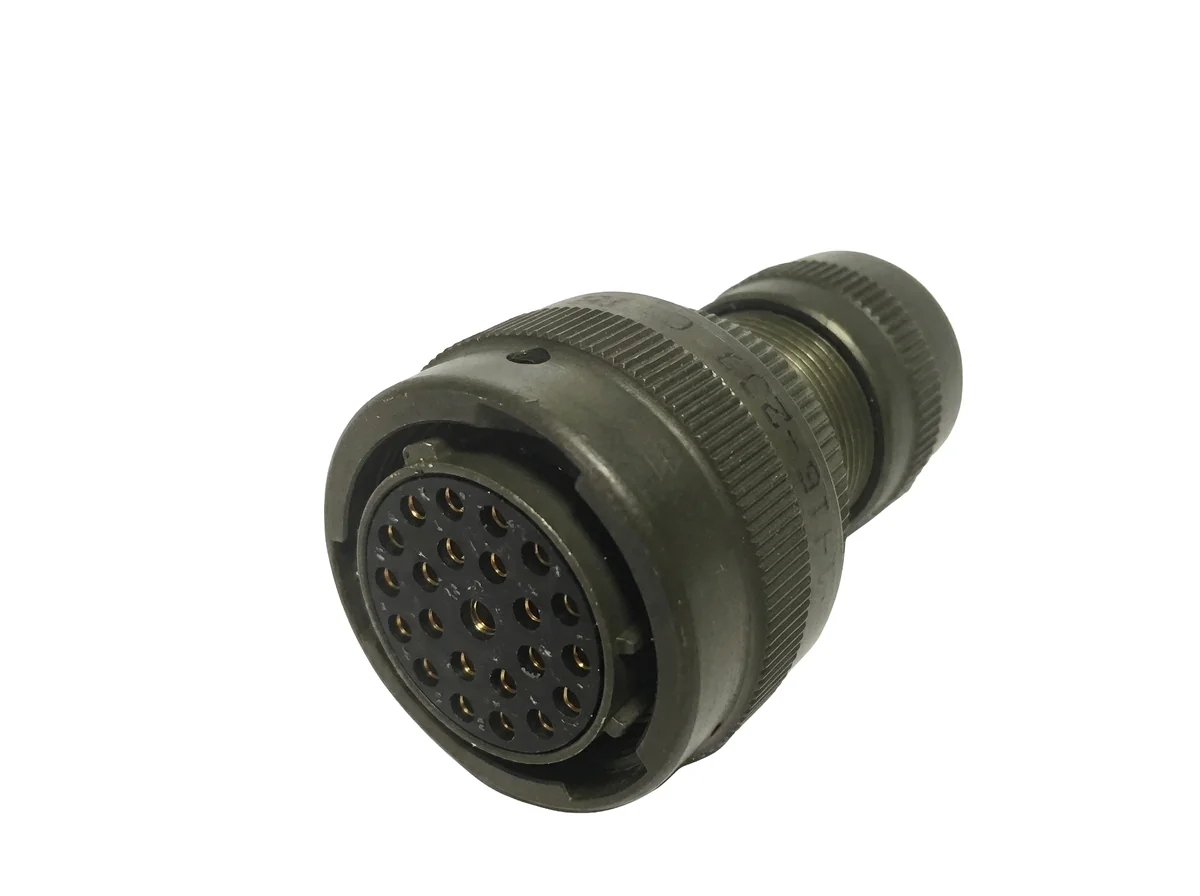

23-Pole Connector
23-pole connector for absolute encoders with parallel output.
Technical Specifications
| Protection Rating | IP40 |
|---|---|
| Connection | 23-pole MIL |

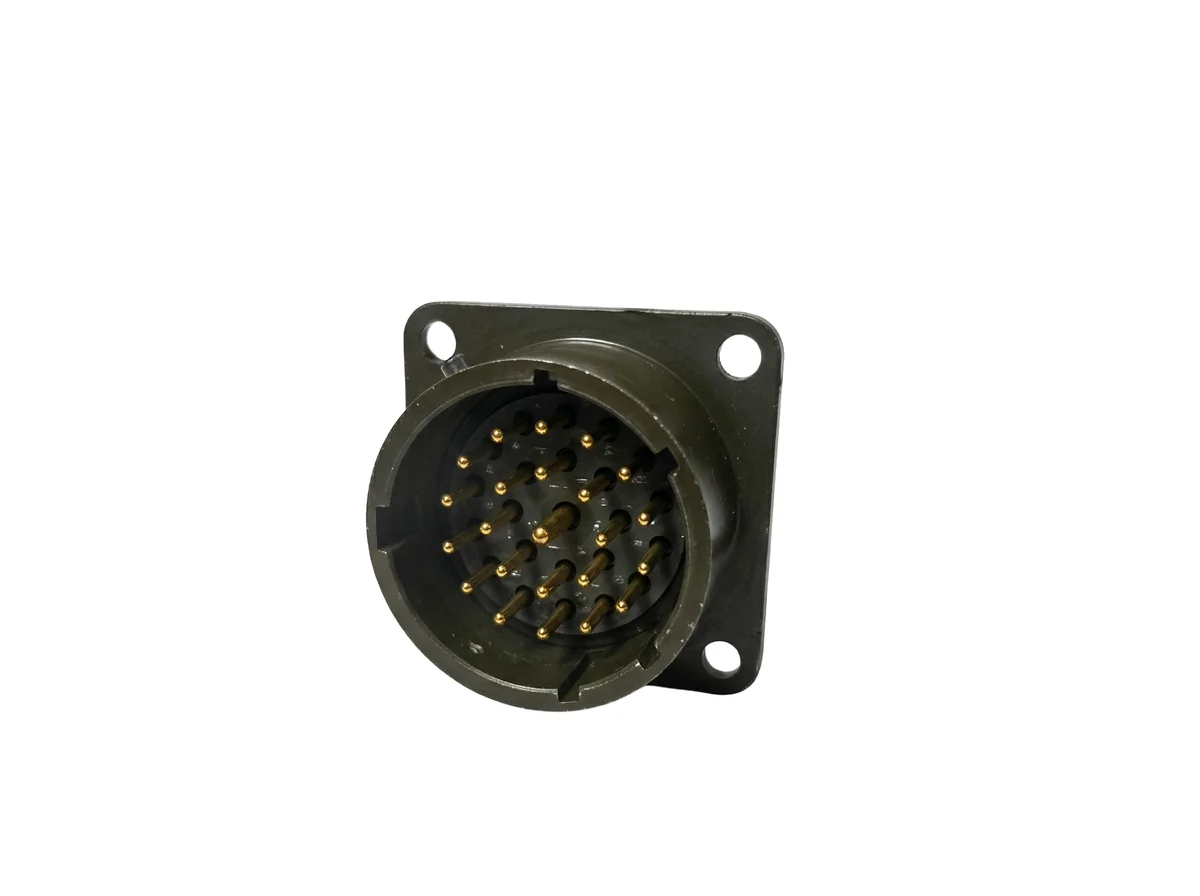

23-Pole Male Connector
23-pole male connector for absolute encoders with parallel output.
Technical Specifications
| Protection Rating | IP40 |
|---|---|
| Connection | 23-pole MIL |

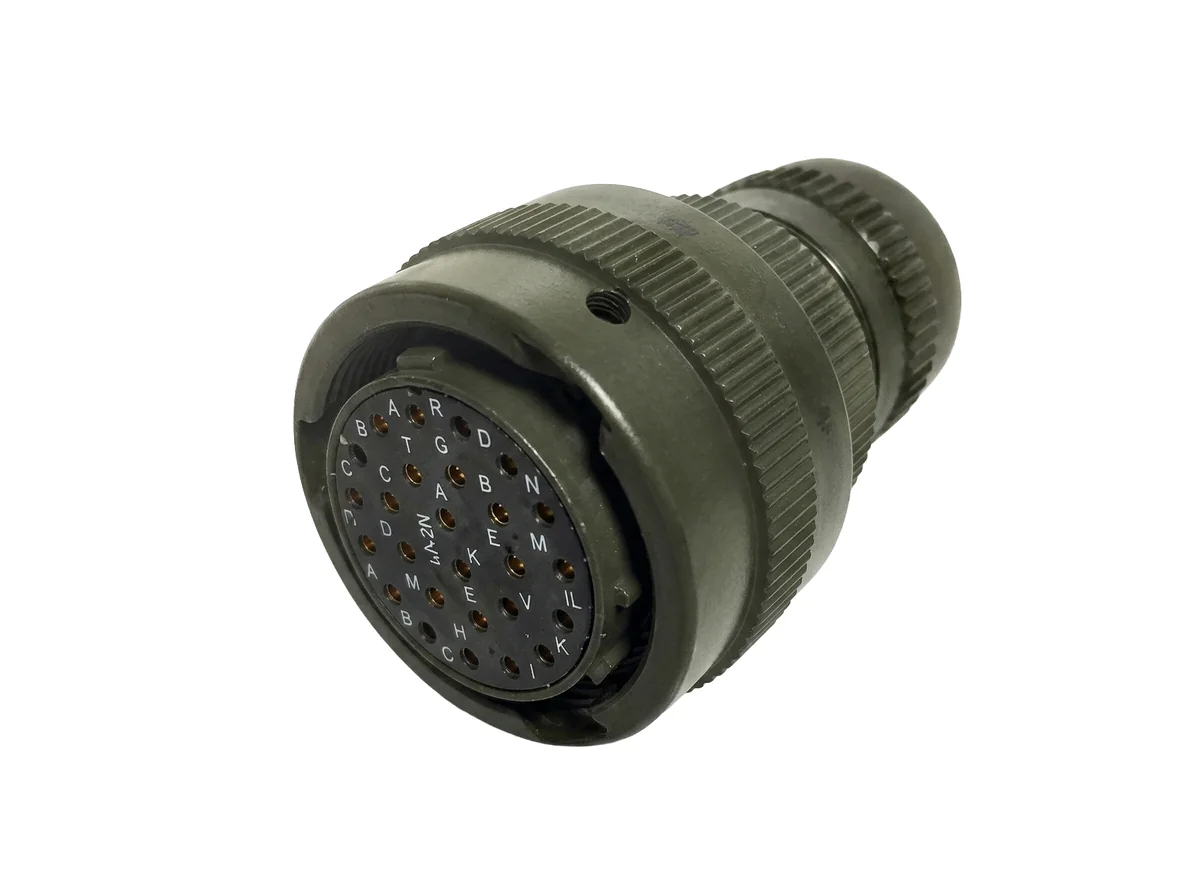

26-Pole Connector
26-pole connector for multi-turn absolute encoders with parallel output.
Technical Specifications
| Protection Rating | IP40 |
|---|---|
| Connection | 26-pole MIL |

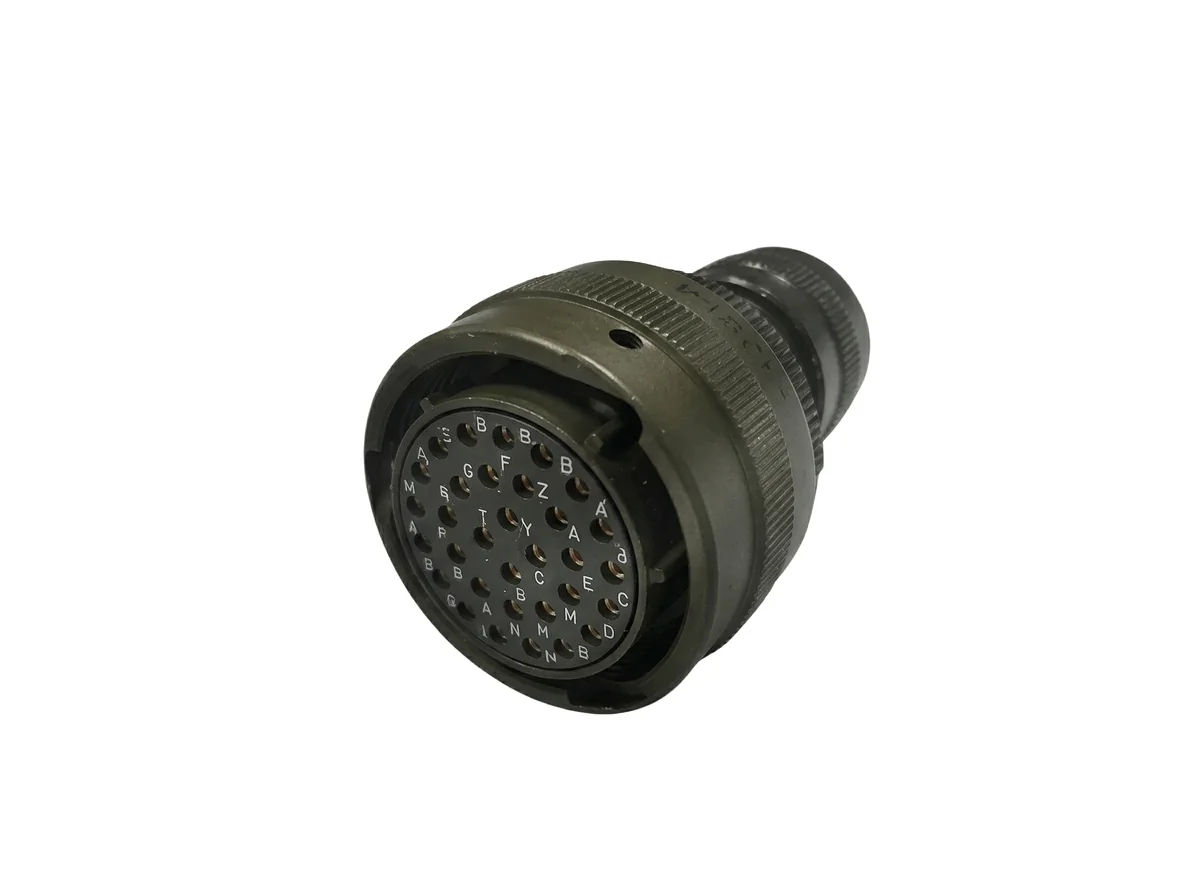

32-Pole Connector
32-pole connector for multi-turn absolute encoders with parallel output.
Technical Specifications
| Protection Rating | IP40 |
|---|---|
| Connection | 32-pole MIL |

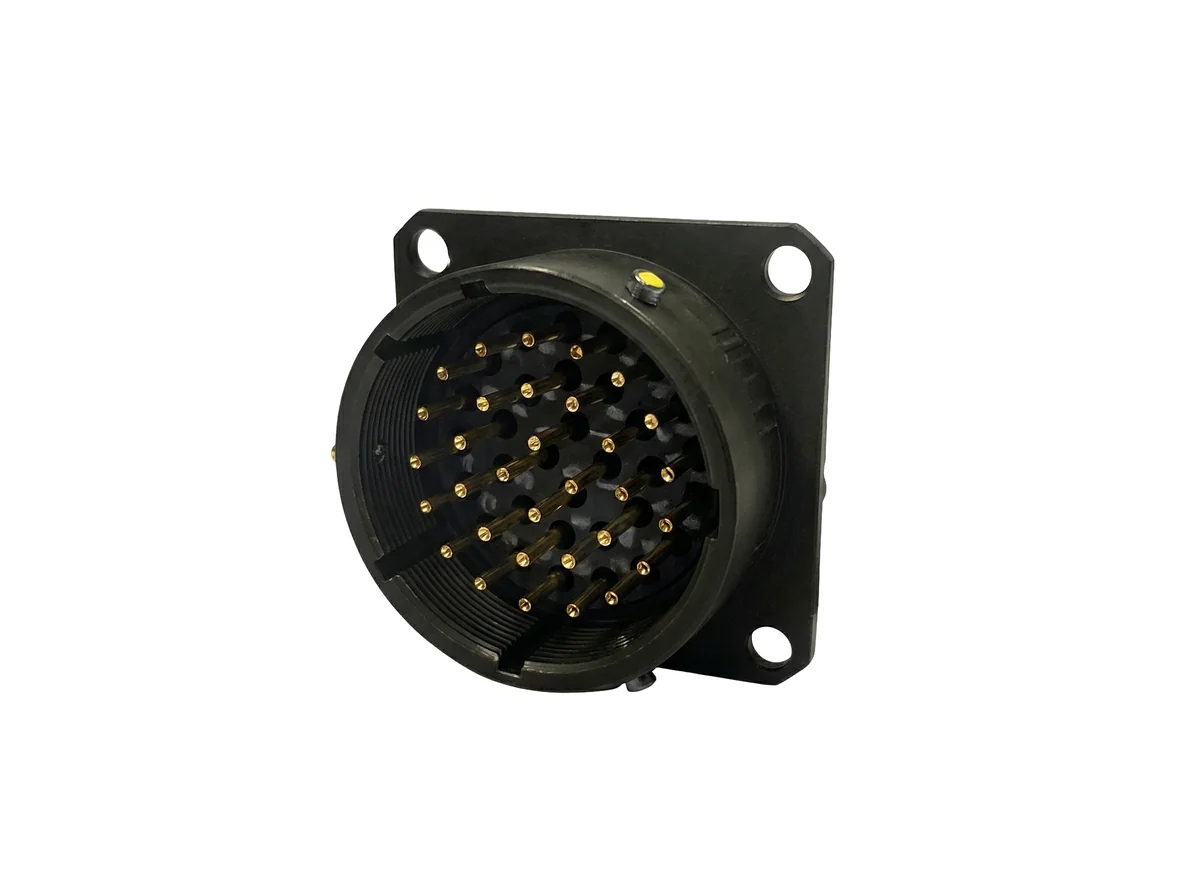

32-Pole Male Connector
32-pole male connector for multi-turn absolute encoders.
Technical Specifications
| Protection Rating | IP40 |
|---|---|
| Connection | 32-pole MIL |

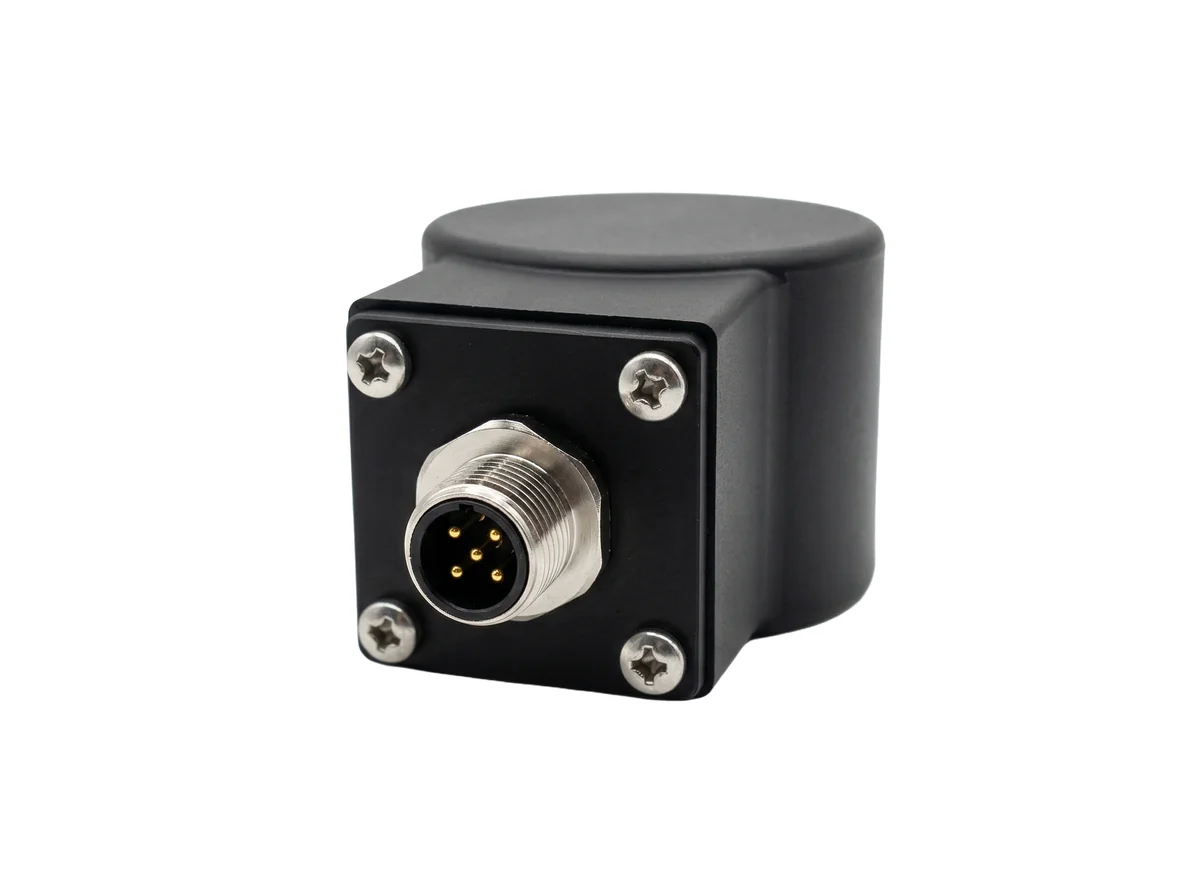

M12 Connection (5/8-Pole)
M12 connection available in 5-pole and 8-pole versions for encoders.

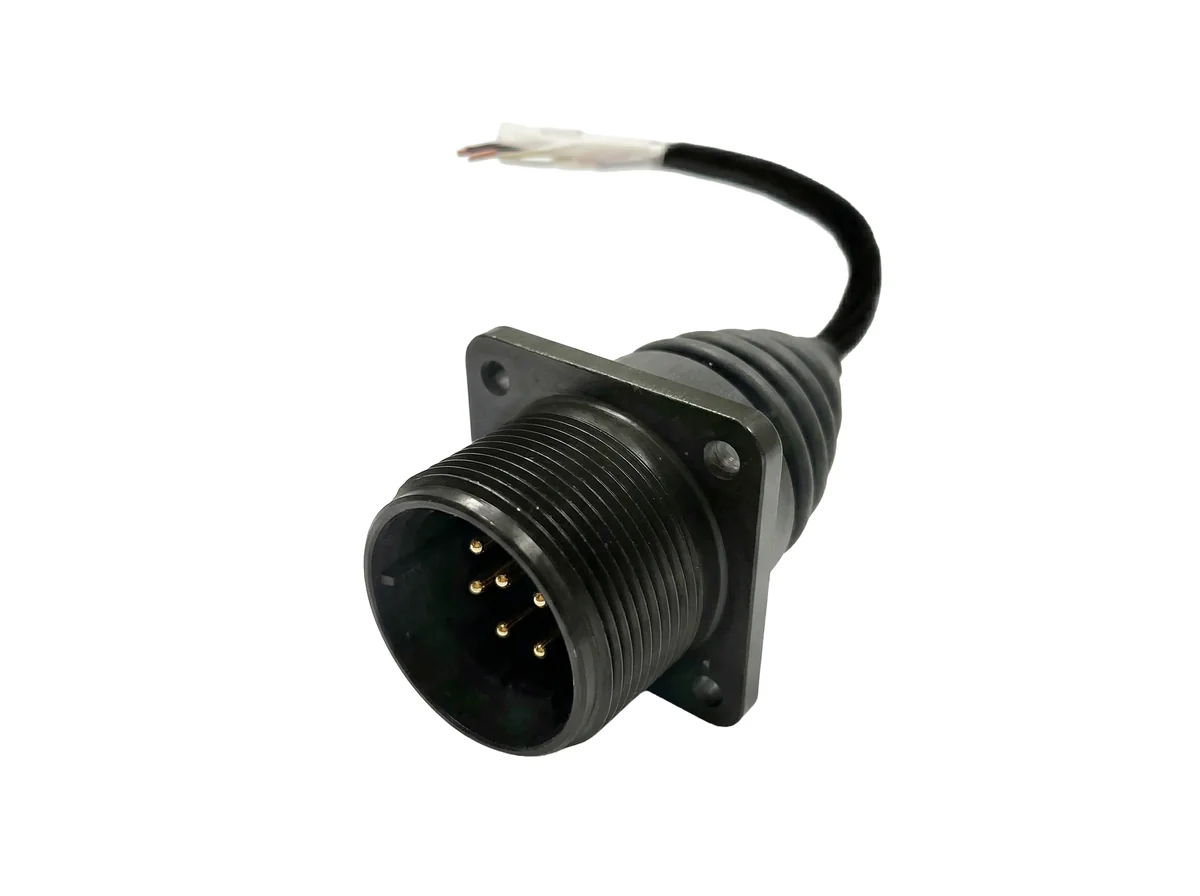

Bellows-Sealed Connector
Sealed bellows-sheath connector for high IP protection; protects the cable-connector junction from dust, humidity and chemical agents. Custom connector and bellows-gasket solutions on request.

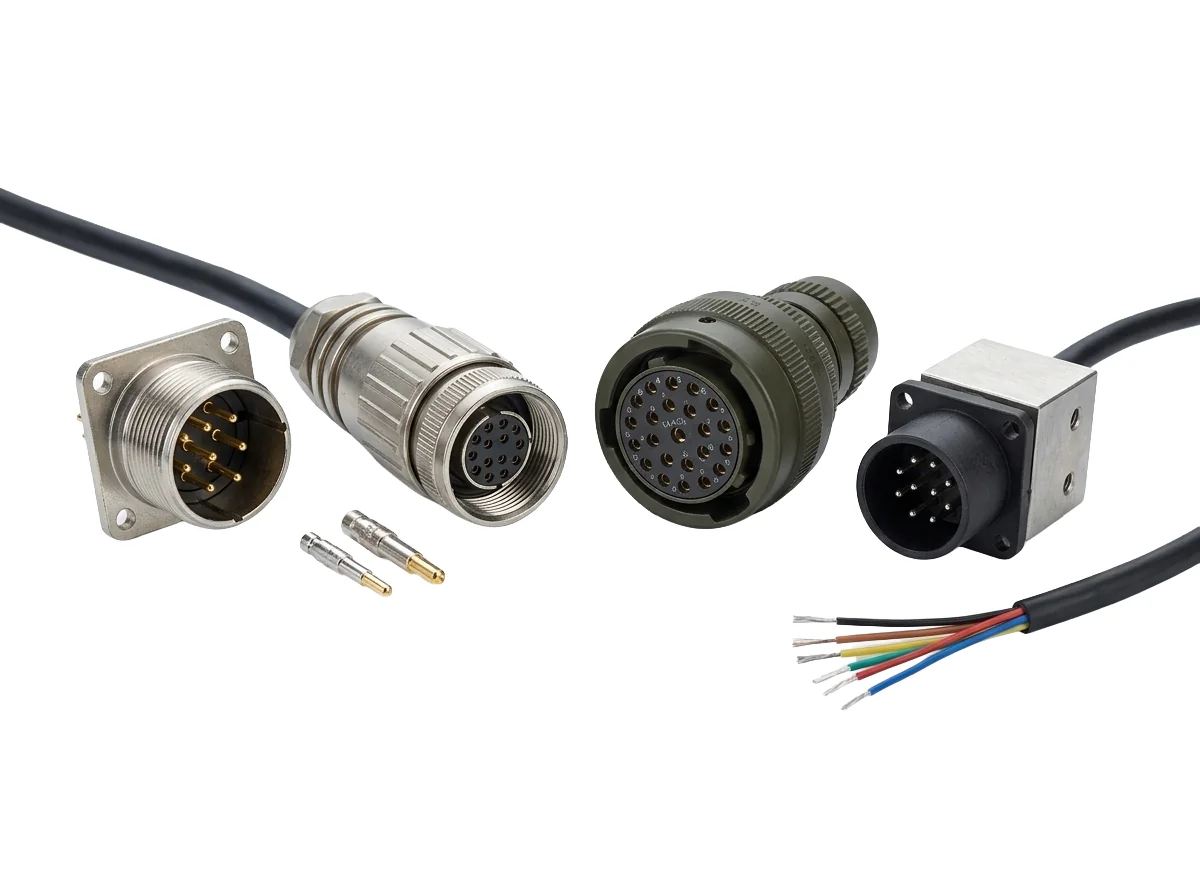

Custom Connection
Personalized connection based on customer specification. Available for all encoder models.

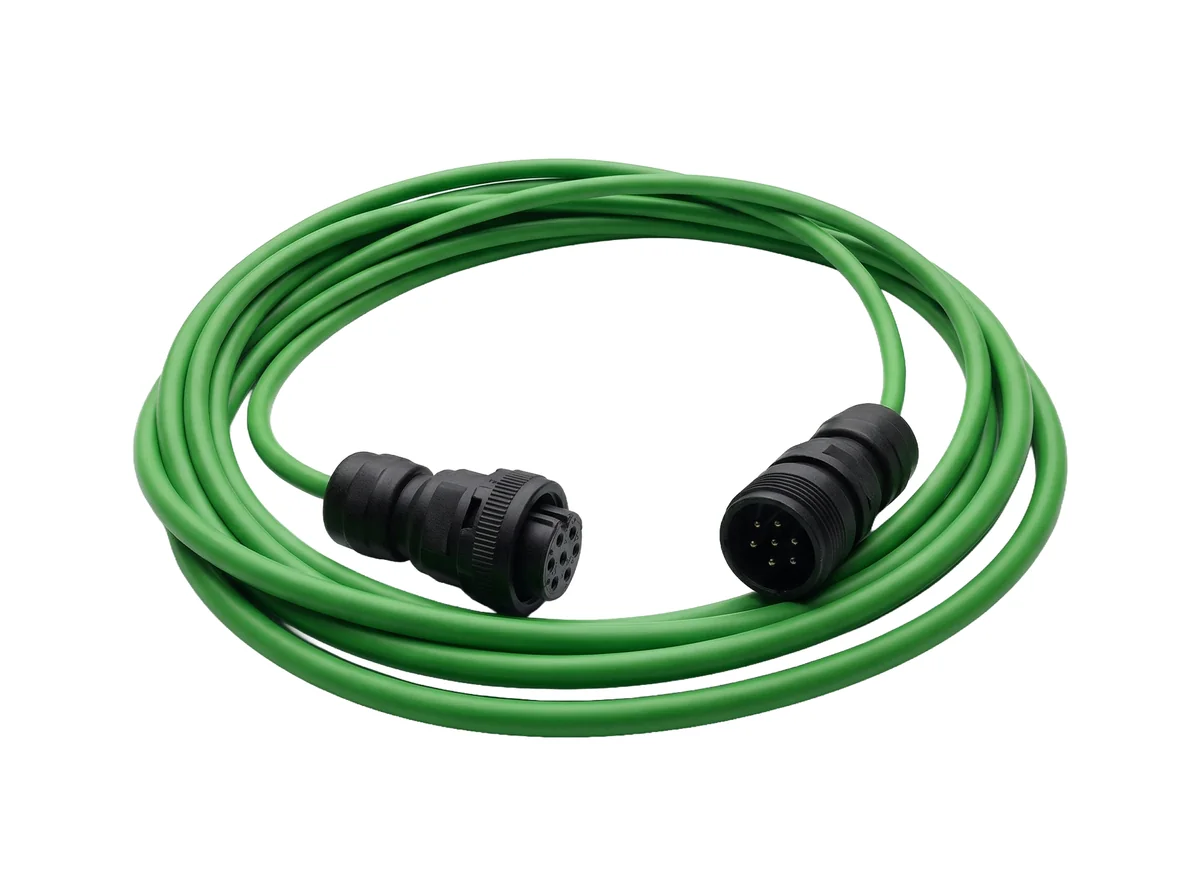

Custom 7-Pole Connection
Customized 7-pole connection system based on customer specification.
